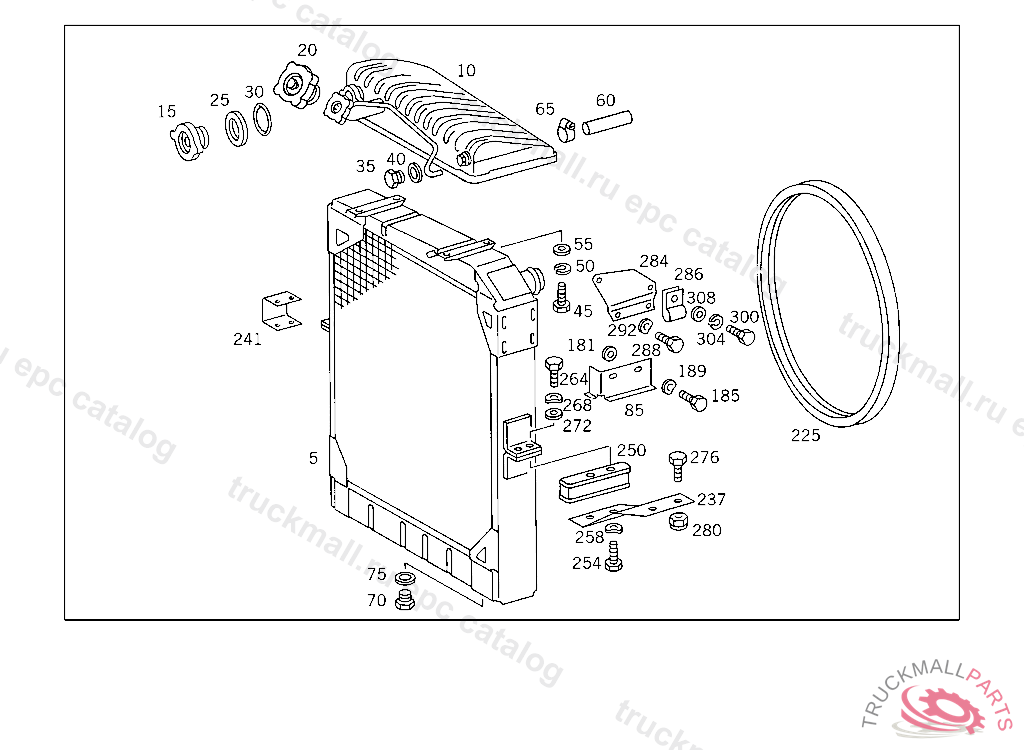

Поз.
Артикул
Описание
5
RADIATOR
5
RADIATOR WATER,5 337827
5
RADIATOR WATER
5
RADIATOR"BEHR"
5
RADIATOR , Replaced By: A0005001103
10
TANK EXPANSION TANK
10
TANK ON RADIATOR
10
TANK EXPANSION TANK
15
RADIATOR CAP CENTRAL
15
RADIATOR CAP CENTRAL
20
RADIATOR CAP FILLER NECK
20
RADIATOR CAP FILLER NECK
25
GASKET O.D., 52 MM
30
GASKET O.D., 37 MM
35
SCREW PLUG WATER DRAIN
35
SCREW PLUG , Replaced By: N007604014101
40
SEAL RING FUEL LINE TO FEED PUMP
45
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
45
SCREW , Replaced By: N304017008016
50
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
55
WASHER EXHAUST MUFFLER TO STRAP
55
WASHER , Replaced By: N000125008443
60
HOSE OVERFLOW, EXPANSION TANK
65
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
65
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
65
CLAMP , Replaced By: N000000000667
65
CLAMP , Replaced By: N916017011001
70
SCREW PLUG WATER DRAIN
70
SCREW PLUG , Replaced By: N007604014101
75
SEAL RING FUEL LINE TO FEED PUMP
85
BRACKET BOOT
181
WASHER COMPRESSED AIR LINE TO BRACKET
181
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
181
WASHER , Replaced By: N000125006421
185
SCREW , Replaced By: N304017006020
185
SCREW LICENSE PLATE TO BRACKET
189
SPRING WASHER LICENSE PLATE TO BRACKET
225
BOOT RADIATOR
225
BOOT FAN SHROUD TO FAN RING
225
BOOT RADIATOR
237
SUPPORT RADIATOR,LEFT,K 096749
237
SUPPORT RIGHT
237
SUPPORT RADIATOR
241
SUPPORT RADIATOR
250
RUBBER MOUNTING RADIATOR
254
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
254
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
254
SCREW , Replaced By: N304017010028
258
SPRING WASHER STEERING COLUMN BRACKET TO CAB
264
SCREW END PIECE TO EXHAUST PIPE M 10X25
264
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
268
SPRING WASHER STEERING COLUMN BRACKET TO CAB
272
WASHER RADIATOR TO RUBBER MOUNTING
276
SCREW CONSOLE TO SIDE MEMBER
280
NUT SUPPORT TO SIDE MEMBER
284
BRACKET , NOT USED
284
BRACKET , NOT USED
286
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
288
SCREW , Replaced By: N304017006016
288
SCREW PUMP TO BRACKET
292
SPRING WASHER LICENSE PLATE TO BRACKET
300
SCREW CLAMP TO BRACKET AND TO PIPE
304
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
308
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
CLAMP , Replaced By: N000000000667
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER , Replaced By: N009021006208
999
SCREW PLUGROCKINGER,TYP 59 U150
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
999
SCREW , Replaced By: N304017006016
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
COOLING WATER LINE FEED
999
BRACKET FEED LINE TO ENGINE
999
LINE FEED
999
BRACKET PIPE ELBOW
999
HOSE CONNECTION OF COOLING WATER LINES
999
HOSE FROM FLANGE TO HEATING PIPE
999
LOCKING CAP INTERMEDIATE PIPE TO PARTICLE FILTER
999
HOSE , Replaced By: A3635060235
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR,5 534803
999
BRACKET OIL LINE MOUNTING
999
RECEPTACLE SILICONE GREASE
