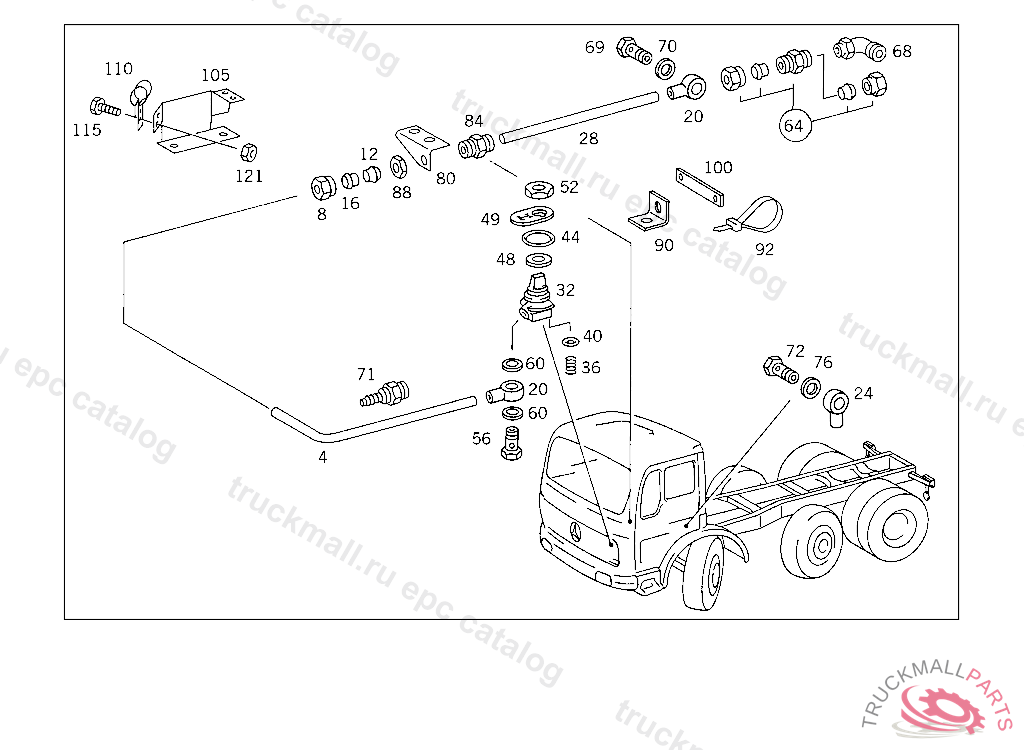

Поз.
Артикул
Описание
4
PLASTIC PIPE RISING PIPE 4X6 MM
4
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
8
UNION NUT
12
SEAL CONE
12
GLAND , Replaced By: A0019901667
16
SLEEVE LEAK LINE
20
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
24
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
28
HOSE ,4 195522
32
VALVE 3/2-WAY WABCO
32
VALVE 3/2-WAY KNORR
32
VALVE 3/2-WAY VOSS
32
VALVE 3/2-WAY BOSCH
36
SPRING INSIDE WABCO
40
SEAL RING INSIDE WABCO
44
SEAL RING TOP WABCO
48
WASHER 3/2-WAY VALVE TO BRACKET
48
WASHER AT TWO-WAY VALVE
49
SYMBOL PLATE 3/2-WAY VALVE
49
SYMBOL PLATE
52
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
56
HOLLOW SCREW LINE CONNECTION
60
SEAL RING LINE CONNECTION
64
TS DOUBLE FITTING SOLENOID VALVE
64
FITTING , Replaced By: A0029906071
68
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
68
FITTING FROM PUMP TO CYLINDER
69
HOLLOW SCREW HEATING CONNECTION
70
SEAL RING LINE CONNECTION
71
FITTING LINE CONNECTION TO FIRE WALL,5 726664
71
FITTING , Replaced By: N915059004001
72
HOLLOW SCREW HEATING CONNECTION
76
SEAL RING LINE CONNECTION
80
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET, NOT USED
84
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
88
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
90
ANGLE LINE MOUNTING
90
ANGLE , Replaced By: A3604280243
92
LOOM TIE LINE MOUNTING
92
LOOM TIE LINE MOUNTING 280 MM
100
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
100
BRACKET , Replaced By: A3604293140
105
BRACKET BREATHER LINE TO FRONT AXLE, NOT USED
110
CLAMP BREATHER LINE TO FRONT AXLE, NOT USED
110
CLAMP COMPRESSED AIR LINE TO STABILIZER
115
SCREW PUMP TO BRACKET
115
SCREW , Replaced By: N304017006016
121
NUT , Replaced By: N913004006001
121
NUT PUMP TO BRACKET
