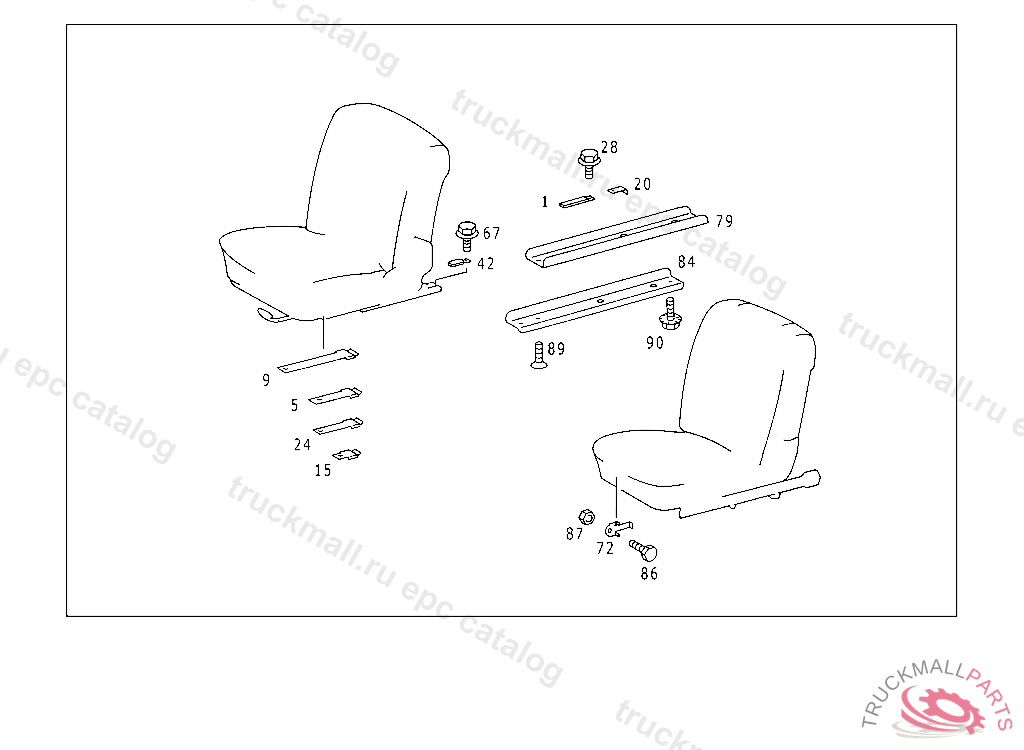

230 - 114.005 - 91 FRONT SEATS

1

PLATE STOP TO SEAT ADJUSTMENT GUIDE RAIL

5

PLATE

9

PLATE

15

PLATE

20

ANGLE

24

PLATE

28

SCREW

42

PLATE

67

SCREW

72

STOP , 107.045 009132 ALSO INSTALLED ON 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128.

72

STOP , 107.045 009131 EXCEPT FOR 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128.

79

SEAT GUIDE LEFT

84

SEAT GUIDE RIGHT

86

SCREW IN CASE OF SUBSEQUENT INSTALLATION

87

NUT TACHOGRAPH TO BRACKET

89

SCREW BRACKET TO SHIM

90

SCREW
