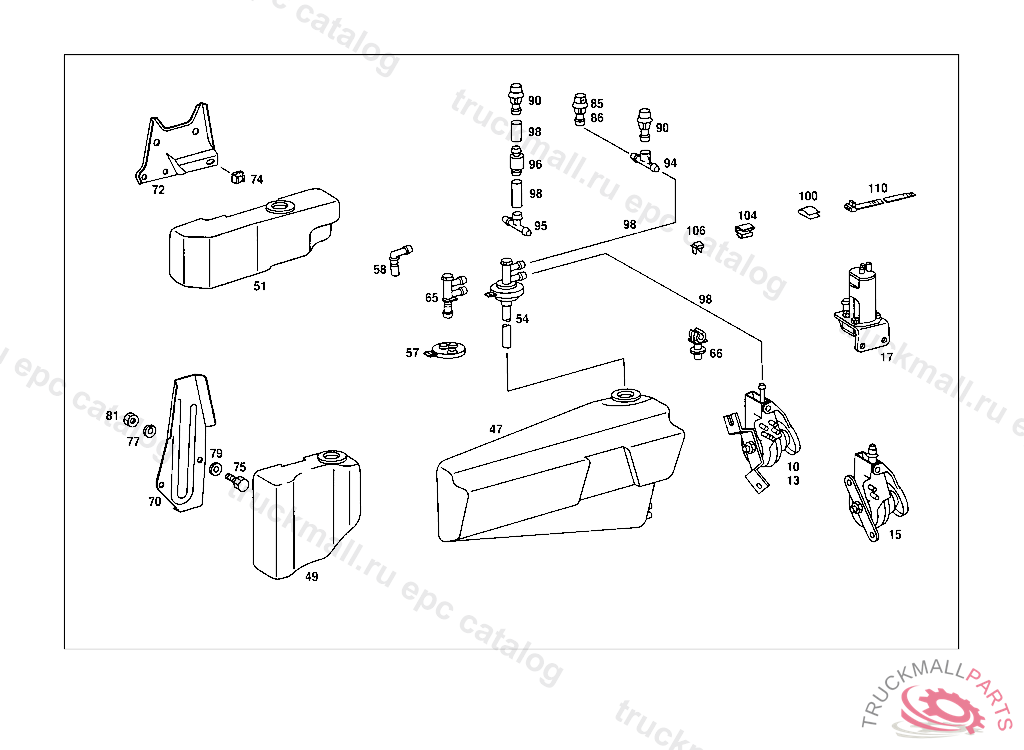

Поз.
Артикул
Описание
10
PUMP
13
PUMP , FROM CHASSIS: 010 100958 110 264039 UP TO CHASSIS: 017 022992 117 049732
17
PUMP
47
RESERVOIR
54
FASTENER , UP TO CHASSIS: 005,007,008,015,017 141103 011 019715
57
FILLER CAP
65
VALVE , FROM CHASSIS: 000,002,010 119623 015 157625 100,102,103,110,112 321651 115 165910
66
CLIP , FROM CHASSIS: 000,002,010 119623 015 157625 100,102,103,110,112 321651 115 165910
85
NOZZLE , 007208
86
NOZZLE DOUBLE, 023 003988 033 006418 123 002802 130 003866 023 015006 033 011502 123 008228 130 013269
90
NOZZLE
94
CONNECTOR
98
HOSE RESERVOIR DE-AERATION,4 238841 ORDER BY THE METER
100
CLIP
104
CLIP13 MM, Replaced By: A0129884678
999
SHEET METAL SCREW6.3X16
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
WASHER BOOT TO CAB FLOOR
999
WASHER , Replaced By: N000433005304
999
PART NAME MISSING , Replaced By: A1158690121
999
RESERVOIR , Replaced By: A1158690720, +001A0008690224, +001A0029975982
999
RESERVOIR , Replaced By: A1158690520
999
VALVE , Replaced By: A1158600169
999
RESERVOIR , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 000,002,010 031887 015 029574 100,102,103,110,112 071120 115 032494, Replaced By: A1158690420
999
PUMP , Replaced By: A0008693021
999
RESERVOIR , Replaced By: A1158690320, +001A0008690419
999
VALVE , Replaced By: A1158690220
999
PART NAME MISSING , Replaced By: A1158690121
999
NOZZLE , Replaced By: A1078690247
999
RESERVOIR , Replaced By: A1158690320, +001A1158600169
999
VALVE , Replaced By: A1158690120
999
NOZZLE , ONLY REPLACEABLE BY PAIRS, Replaced By: A1078690247
999
PUMP , Replaced By: A1088690121
999
NOZZLE , Replaced By: A1078600047
999
NOZZLE , Replaced By: A1078600147
999
PUMP
999
VALVE , Replaced By: A0008691119
999
FILLER CAP
