Поз.
Артикул
Описание

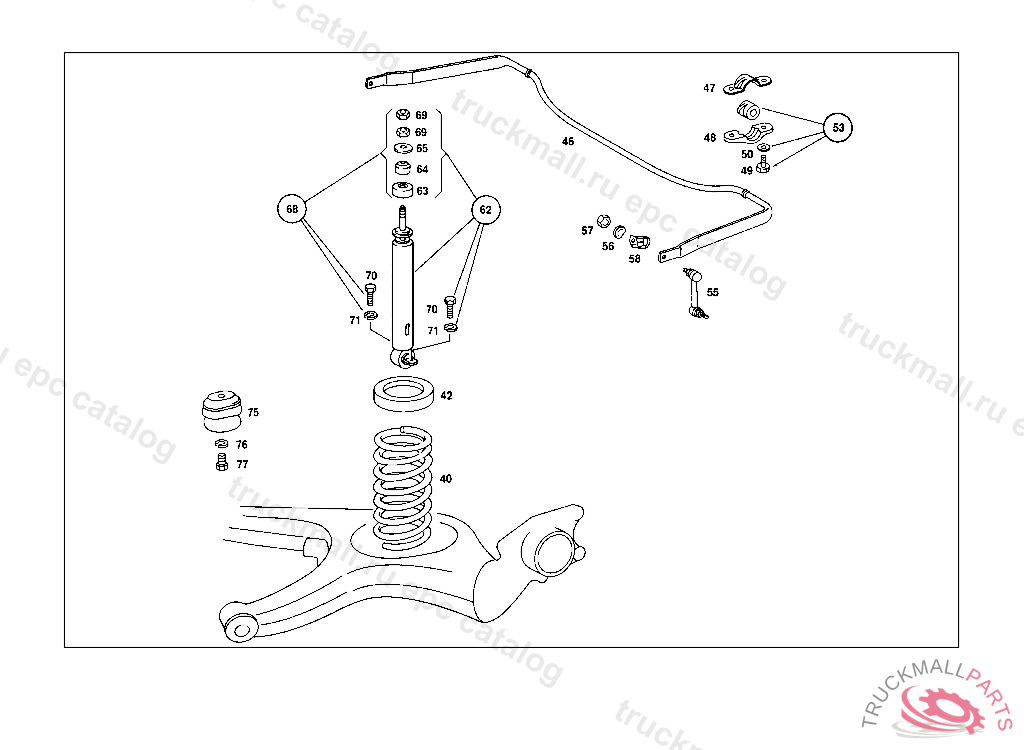

40
REAR SPRING
42
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 2(14 MM)
42
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 3(19 MM)
42
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 1(9,5 MM)
46
TORSION BAR
47
BEARING BRACKET
48
BEARING BRACKET
49
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
50
LOCK WASHER FITTING TO BRACKET
53
REPAIR KIT TORSION BAR,REAR
55
ROD TORSION BAR TO REAR AXLE
56
SPRING WASHER STEERING COLUMN BRACKET TO CAB
57
NUT
57
NUT , Replaced By: N304035010001
58
PROTECTIVE PLATE
62
SHOCK ABSORBER REAR
63
RUBBER BUFFER
64
RUBBER BUFFER SHOCK ABSORBER TO FRAME
65
WASHER REAR SHOCK ABSORBERS
65
WASHER , Replaced By: A2023260076
68
REPAIR KIT , Replaced By: A1159900099
68
ATTACHMENT SHOCK ABSORBER MOUNTING,REAR
69
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
69
NUT , Replaced By: N308673010000
70
SCREW END PIECE TO EXHAUST PIPE M 10X25
70
SCREW CLAMP TO EXHAUST PIPE
71
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
75
RUBBER BUFFER
76
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
77
SCREW SPRING STOP
77
SCREW , Replaced By: N000912008219
77
SCREW , Replaced By: N000912008200
999
RETAINER
999
SHOCK ABSORBER , 114.011 107448.015 238593.023 100725.060 115951.062 106548.072 102991.073 105207 115.015 252671.017 040196.110 441377.114 008251.115 269072.117 078133 116.020 051323.024,025 051143.028,029 029391.032,033 042451, Replaced By: A1153200330, +001A1153230767
999
SHOCK ABSORBER , Replaced By: A1153200330
999
REPAIR KIT , Replaced By: A1159900099
