Mercedes
TRUCK
2448,2550
658.070
52 SHEET METAL,AIR INTAKE
001 SIDE PROTECTION DEVICE IL.1

Mercedes N000931010268 - SCHRAUBE M 10 X 70

2448,2550 658.070

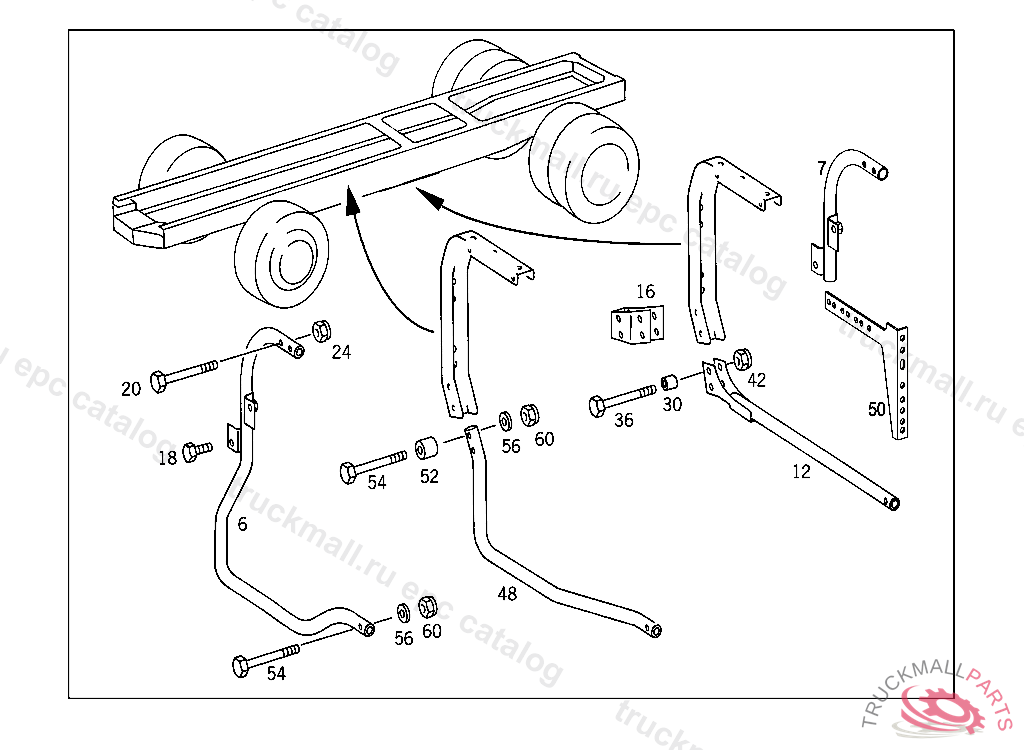

52 SHEET METAL,AIR INTAKE - 001 SIDE PROTECTION DEVICE IL.1

Поз.
Артикул
Описание
6
A6525204451
CLAMP UNDERRUN PROTECTION,LEFT,K 117140
6
A6525203551
CLAMP UNDERRUN PROTECTION,LEFT
6
A6525201251
CLAMP UNDERRUN PROTECTION,LEFT
6
A6525204351
CLAMP UNDERRUN PROTECTION,LEFT
6
A6525201251
CLAMP UNDERRUN PROTECTION,LEFT
6
A6525200551
CLAMP UNDERRUN PROTECTION,LEFT
6
A6525200551
CLAMP UNDERRUN PROTECTION,LEFT
7
A6525201651
CLAMP UNDERRUN PROTECTION,LEFT
12
A6525200632
STAY UNDERRUN PROTECTION,RIGHT, NOT USED
12
A6525200732
STAY UNDERRUN PROTECTION,RIGHT
12
A6525201032
STAY UNDERRUN PROTECTION,RIGHT
12
A6525201032
STAY UNDERRUN PROTECTION,RIGHT
16
A6525225040
BRACKET UNDERRUN PROTECTION AND BRACKET TO FRAME
18
N000961012151
SCREW CONSOLE TO SIDE MEMBER
18
N000961012151
SCREW CONSOLE TO SIDE MEMBER
18
A0029902804
SCREW EXHAUST PIPE TO BRACKET
18
N000961012151
SCREW CONSOLE TO SIDE MEMBER
20
N304017010051
SCREW
20
N304017010025
SCREW , Replaced By: N304017010051
24
N910113010000
NUT STRAP TO BRACKET
24
N913004010008
NUT , Replaced By: N910113010000
30
A2013261053
SPACER TUBE STRUT TO SUPPORT
36
A0019909404
SCREW SHIFTING ROD TO SHIFT LEVER
36
A0019909404
SCREW SHIFTING ROD TO SHIFT LEVER
36
N304017010055
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
36
N304017010055
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
36
A0019909004
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 10X60
36
N304017010050
SCREW , Replaced By: N304017010055
36
N304017010050
SCREW , Replaced By: N304017010055
36
A0019909104
SCREW , Replaced By: N910105010012
36
N000931010268
SCREW , Replaced By: N304017010050
36
N000933010280
SCREW , Replaced By: N304017010050
42
A0009906550
NUT EXHAUST PIPE TO SIDE MEMBER
42
A0009906550
NUT EXHAUST PIPE TO SIDE MEMBER
42
N910113010000
NUT STRAP TO BRACKET
42
N913004010008
NUT , Replaced By: N910113010000
48
A6525202051
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525202051
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525202151
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525200151
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525202051
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525204751
CLAMP UNDERRUN PROTECTION,LEFT,K 206522
48
A6525200851
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525200851
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525203151
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525202751
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525201051
CLAMP UNDERRUN PROTECTION,LEFT
48
A6525201351
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525200151
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525200451
CLAMP UNDERRUN PROTECTION,RIGHT
48
A6525200351
CLAMP UNDERRUN PROTECTION,RIGHT
50
A6525254240
BRACKET UNDERRUN PROTECTION,LEFT
50
A6525254140
BRACKET UNDERRUN PROTECTION,LEFT
50
A6525203244
BRACKET , Replaced By: A6525254140
52
A3819911140
SPACER TUBE BRACKET TO BELL HOUSING
52
A3819911140
SPACER TUBE BRACKET TO BELL HOUSING
52
A3819911140
SPACER TUBE BRACKET TO BELL HOUSING
54
N000961012151
SCREW CONSOLE TO SIDE MEMBER
54
A0019908304
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
54
N000933010094
SCREW EXHAUST PIPE TO BRACKET
54
A0019908304
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
54
N000933010105
SCREW END PIECE TO EXHAUST PIPE M 10X25
54
A0029902804
SCREW EXHAUST PIPE TO BRACKET
54
A0019909004
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 10X60
54
A0019909104
SCREW , Replaced By: N910105010012
54
A0019904004
SCREW BRACKET TO APPARATUS SUPPORT M 10X60
54
A0019909004
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 10X60
56
N007989011201
WASHER BRACKET TO APPARATUS SUPPORT
56
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
56
N000125010518
WASHER , Replaced By: N000125010532
56
N007989011201
WASHER BRACKET TO APPARATUS SUPPORT
60
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
60
N910113010000
NUT STRAP TO BRACKET
60
N910112010001
NUT , Replaced By: N913023010002
60
A0009906550
NUT EXHAUST PIPE TO SIDE MEMBER
60
N913004010008
NUT , Replaced By: N910113010000
