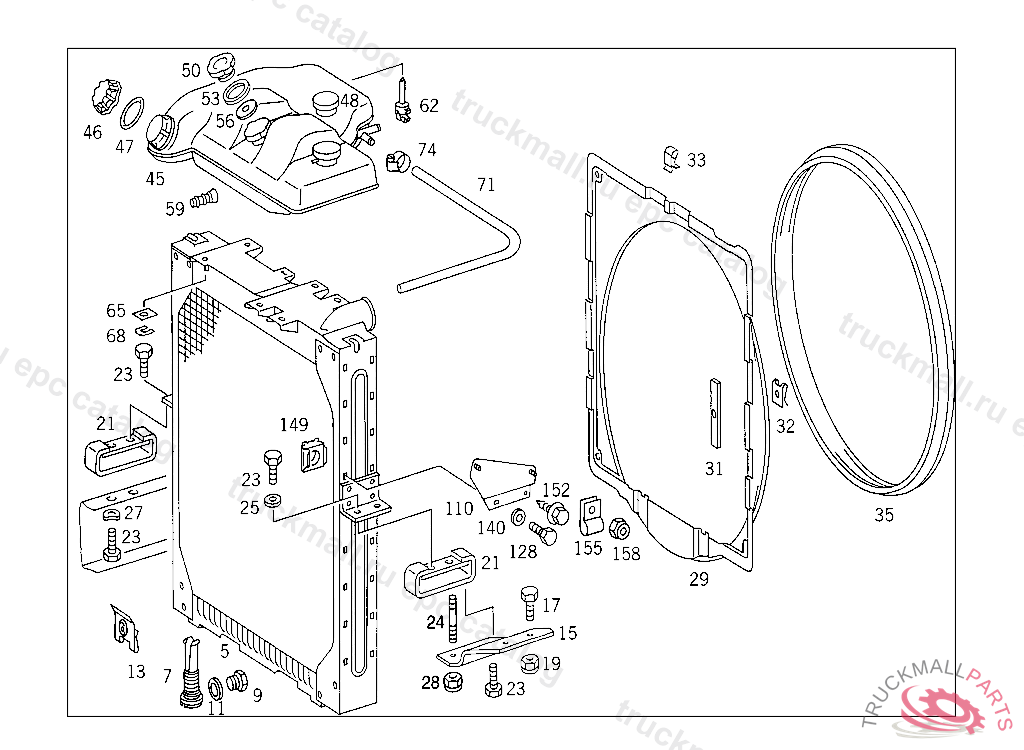

Поз.
Артикул
Описание
5
RADIATOR , Replaced By: A6555003003, +001A6559974582, +001A6559974682
5
RADIATOR , Replaced By: A6555003003, +001A6559974582, +001A6559974682
5
RADIATOR WATER BEHR
5
RADIATOR WITH HOSE FITTING,K 096750
5
RADIATOR WITH HOSE FITTING,K 096750
5
RADIATOR WITH SCREW FITTING
9
SCREW PLUG WATER DRAIN
11
SEAL RINGTO 000 553 03 05,000 553 18 05,
15
SUPPORT RADIATOR,LEFT
17
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
19
NUT SUPPORT TO SIDE MEMBER
21
RUBBER MOUNTING RADIATOR
23
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
23
SCREW END PIECE TO EXHAUST PIPE M 10X25
23
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
24
STUD BOLT BEARING COVER TO TRANSMISSION CASE, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
25
WASHER , Replaced By: N000125010532
25
WASHER RADIATOR TO RUBBER MOUNTING
27
SPRING WASHER STEERING COLUMN BRACKET TO CAB
28
NUT STRAP TO BRACKET
29
FAN SHROUD RADIATOR
29
FAN SHROUD
31
DETENT FAN SHROUD TO RADIATOR
32
LOCK , Replaced By: N912002008003
32
LOCK PULL TO FASTENER
33
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
35
BOOT FAN SHROUD TO FAN RING
35
BOOT , Replaced By: A6565050286
35
BOOT FAN SHROUD TO FAN RING
45
TANK COOLING WATER EXPANSION
46
RADIATOR CAP , Replaced By: A0005016415
46
RADIATOR CAP FILLER NECK
47
SEAL RING
48
RADIATOR CAP
50
RADIATOR CAP CENTRAL
50
RADIATOR CAP CENTRAL
53
GASKET O.D., 52 MM
56
GASKET O.D., 37 MM
59
DRAIN PIPE
62
SENDER UNIT COOLING WATER LEVEL INDICATOR
68
BRACKET. LOCK , Replaced By: A6525040038
68
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
71
HOSE FROM EXPANSION TANK TO ENGINE
74
CLAMP , Replaced By: N916017011001
74
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
128
SCREW , Replaced By: N304017006016
128
SCREW PUMP TO BRACKET
158
NUT PUMP TO BRACKET
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004006001
999
SCREW , Replaced By: N308676012038
