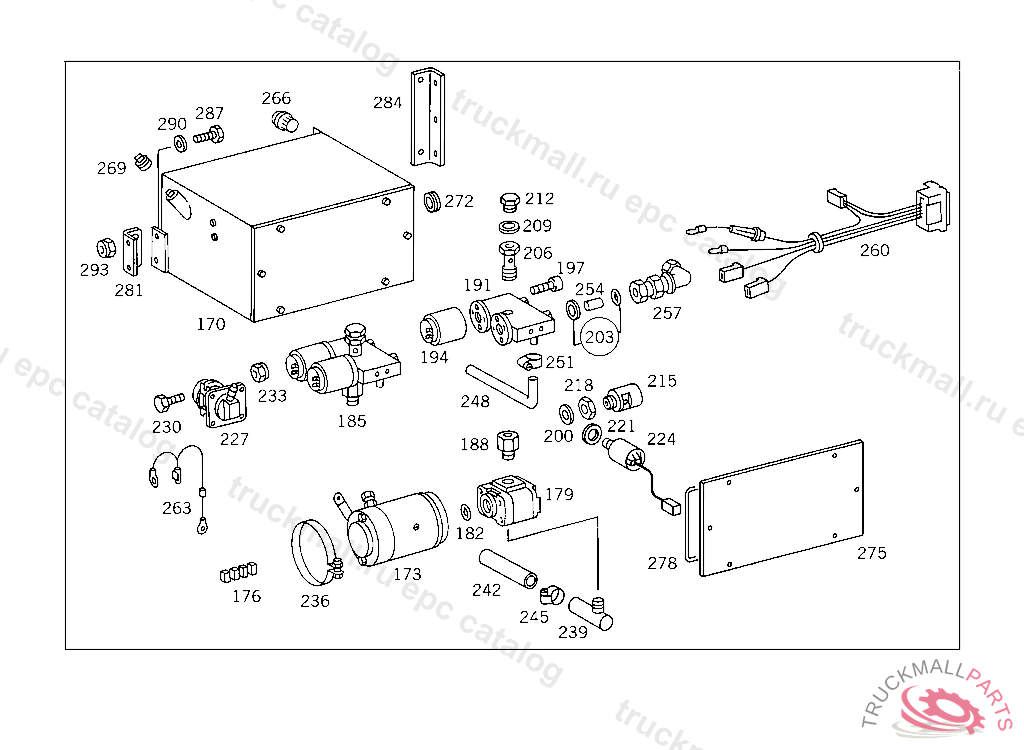

Поз.
Артикул
Описание
170
HYDRAULIC UNIT
173
MOTORSWE
176
CARBON BRUSH PARTS KIT SWE
179
PUMPSWE
182
SEAL RINGSWE
185
VALVE (CONTROL VALVE)
185
VALVE , Replaced By: A0005505355
188
VALVE (CHECK VALVE) SWE
191
VALVE (CONTROL VALVE)
191
VALVE , Replaced By: A0005504355
194
MAGNET
197
SCREW
200
SEAL RINGTO 006 997 00 72
203
SEAL RING PARTS KIT SWE
206
HOLLOW SCREW SOLENOID VALVE
209
SEAL RING SOLENOID VALVE
212
SCREW PLUG
215
T-FITTING PRESSURE SWITCH
218
NUT PRESSURE SWITCH
221
SEAL RING PRESSURE SWITCH
224
SWITCH (PRESSURE SWITCH) 140 BAR
224
SWITCH (PRESSURE SWITCH) 70 BAR
227
CONTACTOR
230
SCREW IN CASE OF SUBSEQUENT INSTALLATION
233
NUT TWO-WAY VALVE TO BRACKET
236
BRACKET ENGINE
239
LINE OIL TANK SWE
242
HOSE
245
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
245
CLAMP , Replaced By: N000000000667
248
HOSE FROM OIL TANK TO SOLENOID VALVE
251
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
251
CLAMP , Replaced By: N916017011001
254
PIPE SOLENOID VALVE
257
SCREW CONNECTION SOLENOID VALVE
260
CABLE HARNESS ELECTRIC
263
CONTROL UNIT THERMAL SWE
266
FILTER HOUSING OIL TANK
269
PLUG OIL TANK
269
SCREW PLUG OIL TANK
272
GROMMET OIL TANK
275
COVER SWITCH BOX
278
GASKET COVER TO SWITCH BOX
281
BRACKET HYDRAULIC UNIT TO APPARATUS SUPPORT
284
BRACKET HYDRAULIC UNIT TO APPARATUS SUPPORT
287
SCREW BRACKET TO SIDE MEMBER
287
SCREW , Replaced By: N304017010002
287
SCREW END PIECE TO EXHAUST PIPE M 10X25
290
WASHER STRUT TO CROSS MEMBER
290
WASHER , Replaced By: N007349010007
293
NUT STRAP TO BRACKET
293
NUT , Replaced By: N910113010000
999
BRACKET , Replaced By: A6454310740
999
BRACKET , Replaced By: A4354922941
999
SCREW , Replaced By: A0019976130
