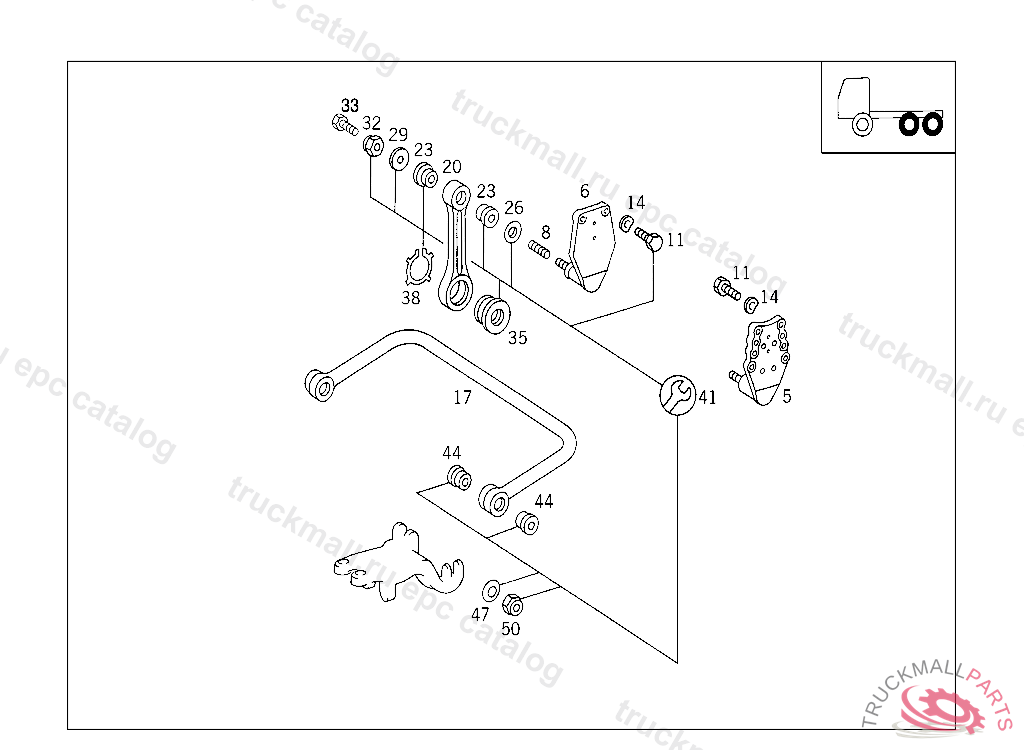

Поз.
Артикул
Описание
5
CONSOLE , Replaced By: A3933261163, +001N000961016081
5
BEARING BRACKET SHACKLE TO FRAME,5 904660
8
STUD BOLT
11
SCREW , Replaced By: N308676016020
11
SCREW CONSOLE TO FRAME
14
SPRING WASHER BRACKET TO TIMING CASE
17
TORSION BAR REAR AXLE
20
SHACKLE STABILIZER,5 904660
23
BUSHING SHACKLE TO BEARING BRACKET,5 904660
26
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
29
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
32
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
32
NUT COMBINATION CYLINDER TO BEARING BRACKET
33
SCREW SHACKLE TO CONSOLE
35
RUBBER MOUNTING SHACKLE TO TORSION BAR,5 904660
38
LOCK RING SHACKLE TO TORSION BAR,5 904660
41
REPAIR KIT TORSION BAR MOUNTING
44
BUSHING TORSION BAR TO BEARING BRACKET,5 184731
47
WASHER BRACKET TO SPARE WHEEL CARRIER
50
NUT , Replaced By: N910113018004
50
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
999
PIN TORSION BAR TO BEARING BRACKET
