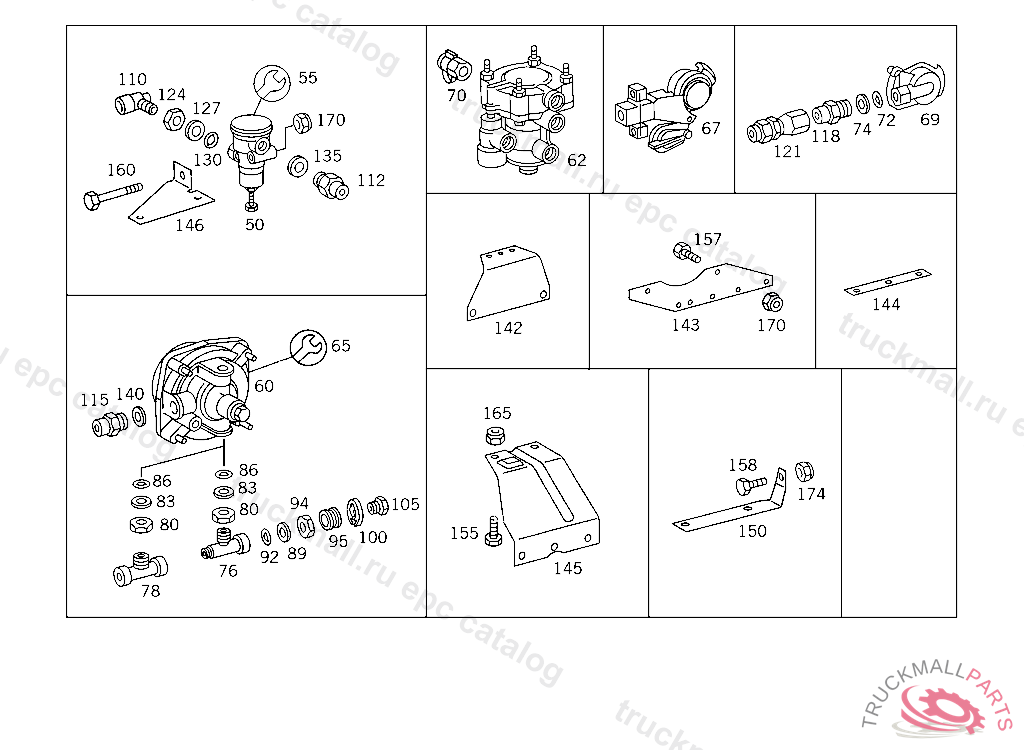

Поз.
Артикул
Описание
50
VALVE (PRESSURE RELIEF VALVE)
50
VALVE (PRESSURE RELIEF VALVE)
55
REPAIR KIT PRESSURE RELIEF VALVE
60
BRAKE VALVE (TRAILER CONTROL VALVE),ONE-LINE BRAKE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
62
BRAKE VALVE (TRAILER CONTROL VALVE),TWO-LINE BRAKE "WABCO"
65
REPAIR KIT TRAILER CONTROL VALVE TO 001 431 46 05,BOSCH
67
BRAKE LINE COUPLING
69
BRAKE LINE COUPLING AT REAR CROSS MENBER
69
BRAKE LINE COUPLING AT REAR CROSS MENBER
69
BRAKE LINE COUPLING AT REAR CROSS MENBER
70
TEST CONNECTION
70
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
70
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
72
O-RING CHECK VALVE TO AIR RESERVOIR
74
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
74
THRUST RING CHECK VALVE TO AIR RESERVOIR
76
T-FITTING SHUTTLE VALVE TO BRAKE CYLINDER
76
T-FITTING SHUTTLE VALVE TO BRAKE CYLINDER
78
T-FITTING LINE CONNECTION
78
T-FITTING LINE CONNECTION
80
NUT CHECK VALVE TO AIR RESERVOIR
80
NUT CHECK VALVE TO AIR RESERVOIR
83
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
83
THRUST RING CHECK VALVE TO AIR RESERVOIR
83
THRUST RING CHECK VALVE TO AIR RESERVOIR
86
O-RING CHECK VALVE TO AIR RESERVOIR
86
O-RING CHECK VALVE TO AIR RESERVOIR
89
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
89
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
94
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
94
NUT COMBINATION CYLINDER,CONNECTION: "12"
95
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
95
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
95
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
100
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
100
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
100
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
105
SCREW. UNION SCREW LINE CONNECTION
105
SCREW. UNION SCREW LINE CONNECTION
105
SCREW. UNION SCREW LINE CONNECTION
110
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
110
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
112
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
112
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
115
FITTING LINE CONNECTION
118
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
121
CONNECTOR BRAKE LINE COUPLING TO BRACKET
124
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
124
NUT COMBINATION CYLINDER,CONNECTION: "12"
127
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
130
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
135
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
135
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
140
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
140
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
142
BRACKET TRAILER CONTROL VALVE TO BRACKET
143
BRACKET TRAILER CONTROL VALVE,5 298636
144
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
144
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
145
BRACKET TRAILER CONTROL VALVE TO APPARATUS SUPPORT
145
BRACKET TRAILER CONTROL VALVE TO APPARATUS SUPPORT
146
BRACKET PRESSURE RELIEF VALVE
150
BRACKET BRACKET TO TRAILER CONTROL VALVE, SIMPLE PART-PLEASE HAVE SHOP MADE
150
BRACKET BRACKET TO TRAILER CONTROL VALVE,5 720507
155
SCREW , Replaced By: N304017010002
155
SCREW BRACKET TO SIDE MEMBER
157
SCREW , Replaced By: N304017008021
157
SCREW PIPE CLAMP
157
SCREW , Replaced By: N304017008018
157
SCREW SUPPORT TO FENDER
157
SCREW END PIECE TO EXHAUST PIPE M 10X25
157
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
157
SCREW END PIECE TO EXHAUST PIPE M 10X25
158
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
160
SCREW , Replaced By: N304014008001
160
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
160
SCREW VALVE TO SIDE MEMBER,5 295723
165
NUT , Replaced By: N910113010000
165
NUT EXHAUST PIPE TO SIDE MEMBER
165
NUT STRAP TO BRACKET
165
NUT STRAP TO BRACKET
170
NUT , Replaced By: N913004008001
170
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
170
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
170
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
174
NUT , Replaced By: N910113014001
174
NUT BRACKET TO SIDE MEMBER
999
HEXALOBULAR BOLT BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT M 10X50
999
BRACKET TRAILER CONTROL VALVE
999
TRAILER CONTROL VALVE (TRAILER CONTROL VALVE) "KNORR"
999
SCREW , Replaced By: N000000001441
999
RUBBER BUFFER , NOT USED
