Mercedes N304017008043 - БОЛТ М8

2544 L DATACARD: CHASSIS-SA 5...../.. 658.471

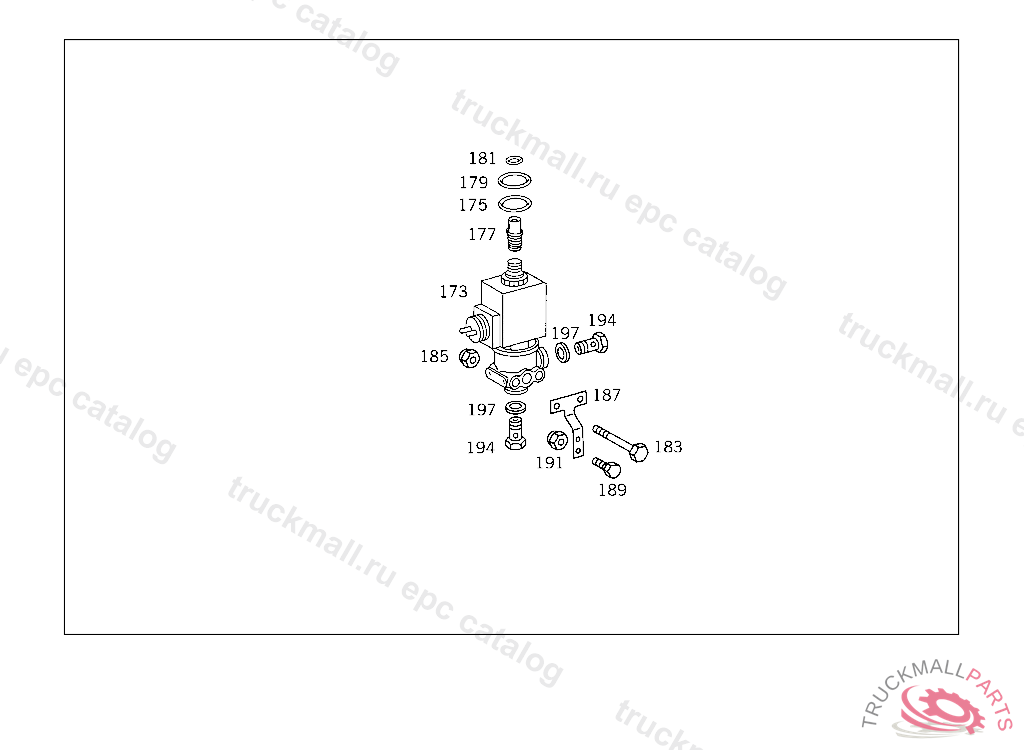

30 CONTROL - 060 ACCELERATOR PEDAL CONTROL IL. 3

Поз.
Артикул
Описание
173
A0039976936
VALVE (3/2-WAY SOLENOID VALVE) WABCO
175
A0079970248
SEAL RINGWABCO
177
A0004312068
VALVE PARTWABCO
179
A0019975945
SEAL RINGWABCO
181
A0149973048
SEAL RINGWABCO
183
N000931008327
SCREW , Replaced By: N304017008043
183
N304017008043
SCREW VALVE TO BRACKET M 8X55
185
N913004008004
NUT , Replaced By: N913004008001
185
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
185
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
187
A6454312140
BRACKET 3/2-WAY SOLENOID VALVE
189
N000933012056
SCREW , Replaced By: N304017012020
189
N304017012020
SCREW END PIECE TO EXHAUST PIPE M 12X30
191
N913002012004
NUT END PIECE TO EXHAUST PIPE
194
N915036008202
HOLLOW SCREW HEATING CONNECTION
197
N007603012405
SEAL RING LINE CONNECTION
