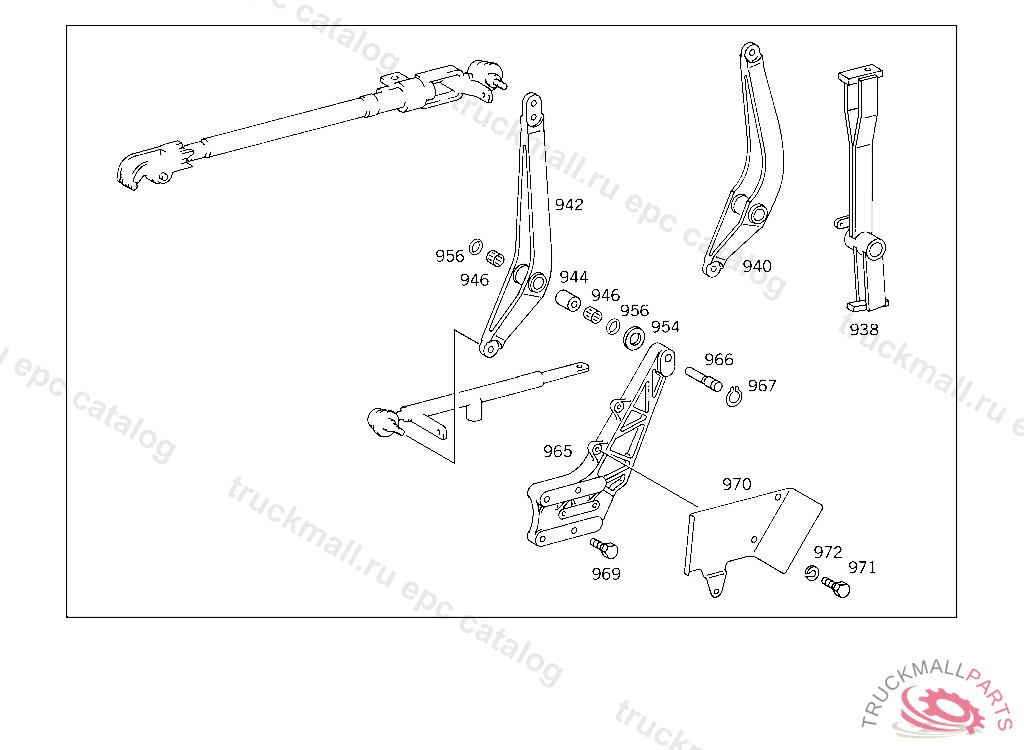

Поз.
Артикул
Описание
938
LEVER SHIFTING TRANSFER,K 131522
938
LEVER , Replaced By: A6522605437
938
LEVER , Replaced By: A6522605037
940
LEVER SHIFTING TRANSFER,K 142858
942
LEVER SHIFTING TRANSFER,K 142858
944
BUSHING
946
NEEDLE BEARING
946
NEEDLE BEARING
954
SPACER WASHER LEVER TO BRACKET 0.60 MM
954
SPACER WASHER LEVER TO BRACKET 0.40 MM
954
SPACER WASHER , Replaced By: A6522680352, +001A6522680252
954
SPACER WASHER LEVER TO BRACKET 0.20 MM
956
SEAL RING LEVER TO BRACKET
956
SEAL RING LEVER TO BRACKET
965
BRACKET LEVER,K 142858
965
BRACKET LEVER,K 131522
965
BRACKET LEVER,K 142858
966
PIN PIN TO BRACKET,K 142858
967
LOCK RING PIN TO BRACKET,K 142858
969
SCREW BRACKET TO TIMING CASE,K 142858
969
SCREW BRACKET TO TIMING CASE,K 142858
970
COVERING , Replaced By: A6552681283
970
COVERING SCREENING PLATE TO BRACKET,K 142858
971
SCREW SCREENING PLATE TO BRACKET,K 142858
972
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
SHIFT MECHANISM ELECTROPNEUMATIC POWER SHIFT, 625.101,652-654 5 984064 625.129,655-659 5 957779
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
HANDLE 3/2-WAY VALVE TO BRACKET
999
HANDLE TRANSFER CASE ACTUATION
999
SCREW BRACKET TO BEARING BRACKET,K 274033
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
FITTING (PARTS KIT),LINE RUPTURE
999
TS DOUBLE FITTING (PARTS KIT),LINE RUPTURE 4MM
999
HOSE , Replaced By: A0009872827
999
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
999
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
BOOT SHIFT LEVER
999
SHIFTING ROD REAR
999
BRACKET SHIFT MECHANISM
999
BRACKET LINE MOUNTING
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
COVER COVERING
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
SHIM , Replaced By: A6552680184
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
SHIM SHIFT MECHANISM AND BRACKET TO CAB FLOOR
999
COVERING SHIFT MECHANISM
999
COVERING SHIFT MECHANISM
999
GUMMED LABEL , Replaced By: A6555840338
999
GUMMED LABEL , Replaced By: A6555840438
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 984064 625.129,655-659 5 957779
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 984064 625.129,655-659 5 957779
999
GUMMED LABEL GEARSHIFT DIAGRAM
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH
999
GUIDE SIGN P.T.O. CONTROL
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH
