Поз.
Артикул
Описание

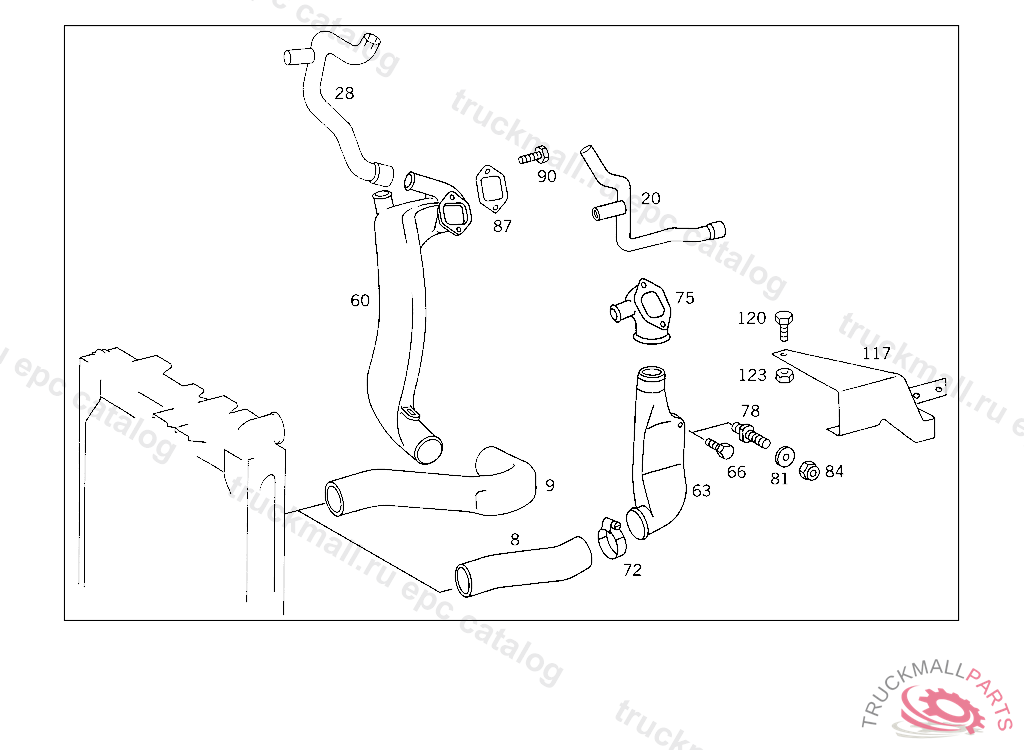

8
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
9
HOSE FROM RADIATOR OUTLET TO WATER PUMP
9
HOSE FROM RADIATOR OUTLET TO WATER PUMP
9
HOSE , Replaced By: A6565012482
9
HOSE , Replaced By: A6565012582
9
HOSE , Replaced By: A6565012682
9
HOSE FROM RADIATOR OUTLET TO WATER PUMP
20
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
20
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 003669
20
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE, TO BE ADAPTED DURING ASSEMBLY
20
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
20
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 003668
20
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE,K 103231
20
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
20
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
20
HOSE DE-AERATION PIPE TO EXPANSION TANK
28
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
28
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
60
PIPE ELBOW FROM RADIATOR OUTLET TO WATER PUMP
60
PIPE ELBOW FOR SCREW FITTING
60
PIPE ELBOW , Replaced By: A6555010356
60
PIPE ELBOW FROM RADIATOR TO WATER PUMP
60
PIPE ELBOW FROM RADIATOR OUTLET TO WATER PUMP
63
PIPE ELBOW AT WATER PUMP,5 510518
66
SCREW BRACKET TO FRAME SIDE MEMBER
72
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
72
CLAMP , Replaced By: N000000000674
75
PIPE ELBOW , Replaced By: A6555010223
75
CONNECTOR AT WATER PUMP
75
CONNECTOR AT WATER PUMP
78
PIN PIPE ELBOW TO BRACKET,K 023462
81
SPACER RING PIPE ELBOW TO BRACKET,K 023462
81
WASHER , Replaced By: A1894660751
84
NUT BRACKET TO SUPPORT AND TO END PIECE
87
GASKET CONNECTOR
87
GASKET CONNECTOR, Replaced By: A0002011180
87
GASKET CONNECTOR, Replaced By: A0002011280
87
GASKET , Replaced By: A4422010480
87
GASKET CONNECTOR, Replaced By: A0002011080
90
SCREW END PIECE TO EXHAUST PIPE M 10X25
117
BRACKET CONNECTOR
120
SCREW , Replaced By: N304017008021
120
SCREW , Replaced By: N304017008034
120
SCREW BRACKET TO CROSS CONNECTION STRUT
120
SCREW PIPE CLAMP
123
NUT , Replaced By: N913004008001
123
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
WASHER , Replaced By: A1894660751
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
BRACKET ,K 125624
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
BRACKET OIL LINE TO ENGINE,K 131866
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
LINE HEATING LINES,K 003669
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
HOSE , Replaced By: A6565011482
999
BRACKET AT OIL PAN,K 131866
999
BRACKET FEED LINE TO THERMOSTAT
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,K 068297
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE , Replaced By: A6565012682
999
SCREW COVER PLATE TO BRACKET
999
SCREW BRACKET TO OIL PAN
999
SCREW , Replaced By: N304017008034
999
NUT , Replaced By: N913004008001
