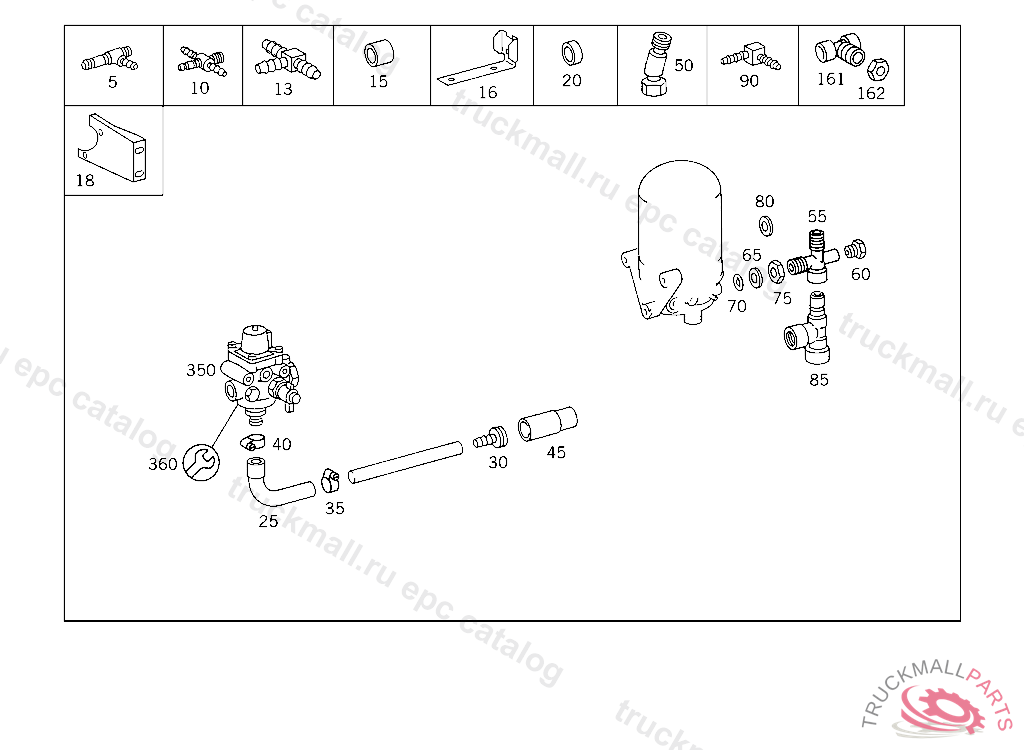

Поз.
Артикул
Описание
5
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
10
DISTRIBUTOR
13
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
15
RUBBER BUFFER LINE MOUNTING
16
BRACKET COMPRESSED AIR PIPING
18
BRACKET COMPRESSED AIR LINE MOUNTING
20
WASHER BRACKET TO LEFT SIDE MEMBER
25
BREATHER PIPE COMPRESSED AIR LINE TO EXHAUST MUFFLER
30
FITTING PRESSURE REGULATOR,CONNECTION: "30"
35
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
35
CLAMP , Replaced By: N000000000667
40
CLAMP PRESSURE REGULATOR
45
MUFFLER PRESSURE REGULATOR BREATHING
50
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
55
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21", 3XM 22X1.5/1XM 16X1.5
55
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21"
60
SCREW. UNION SCREW , Replaced By: A0009973734
60
SCREW. UNION SCREW LINE CONNECTION
65
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
65
THRUST RING CHECK VALVE TO AIR RESERVOIR
70
O-RING CHECK VALVE TO AIR RESERVOIR
75
NUT CHECK VALVE TO AIR RESERVOIR
80
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
85
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
85
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
90
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
161
T-FITTING LINE CONNECTION
162
NUT CHECK VALVE TO AIR RESERVOIR
350
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
350
PRESSURE REGULATORWABCO
350
PRESSURE REGULATORKNORR
360
REPAIR KIT PRESSURE REGULATOR KNORR
360
REPAIR KIT PRESSURE REGULATOR WABCO
360
REPAIR KIT DIAPHRAGM PART BOSCH,209
360
REPAIR KIT SEAL RING BOSCH,209
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322107
999
PLASTIC PIPE AERATION, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
NUT BRACKET TO BRACKET
999
NUT EXHAUST PIPE TO SIDE MEMBER
999
NUT STRAP TO SUPPORT
999
CONNECTOR HOSE WIDTH, 6 MM, TO M22
999
NUT BRACKET TO BEARING BRACKET
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
SEAL RING , Replaced By: A0009940747
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK RING LINE CONNECTION
999
LOCK , Replaced By: A0009945448
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SCREW. UNION SCREW LINE CONNECTION
999
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
999
SCREW COVERING TO SUPPORT
999
SCREW , Replaced By: N910142008001
999
SCREW , Replaced By: N910142008009
999
ELBOW FITTING , Replaced By: A0049905371
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
999
SCREW LINE MOUNTING M 10X20
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SCREW BRACKET TO REAR CROSS MEMBER
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313606
999
SCREW EXHAUST PIPE TO BRACKET
999
SCREW BRACKET TO TRANSMISSION
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO,5 963779 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BASE AIR RESERVOIR
999
ANGLE LINE MOUNTING
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
WASHER , Replaced By: A3609902340
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
BRACKET AIR RESERVOIR
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
STRAP AIR RESERVOIR TO BRACKET
999
BRACKET
999
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
HOLLOW SCREW AIR RESERVOIR
999
BRACKET PRESSURE RATIO VALVE,5 448631
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125015019
999
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW BRACKET TO CAB MOUNTING CONSOLE
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SCREW PIPE CLAMP
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT STRAP TO BRACKET
999
NUT BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO BRACKET
999
SCREW CLAMP TO BRACKET,5 597426
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
999
NUT BRACKET TO SIDE MEMBER
