Поз.
Артикул
Описание

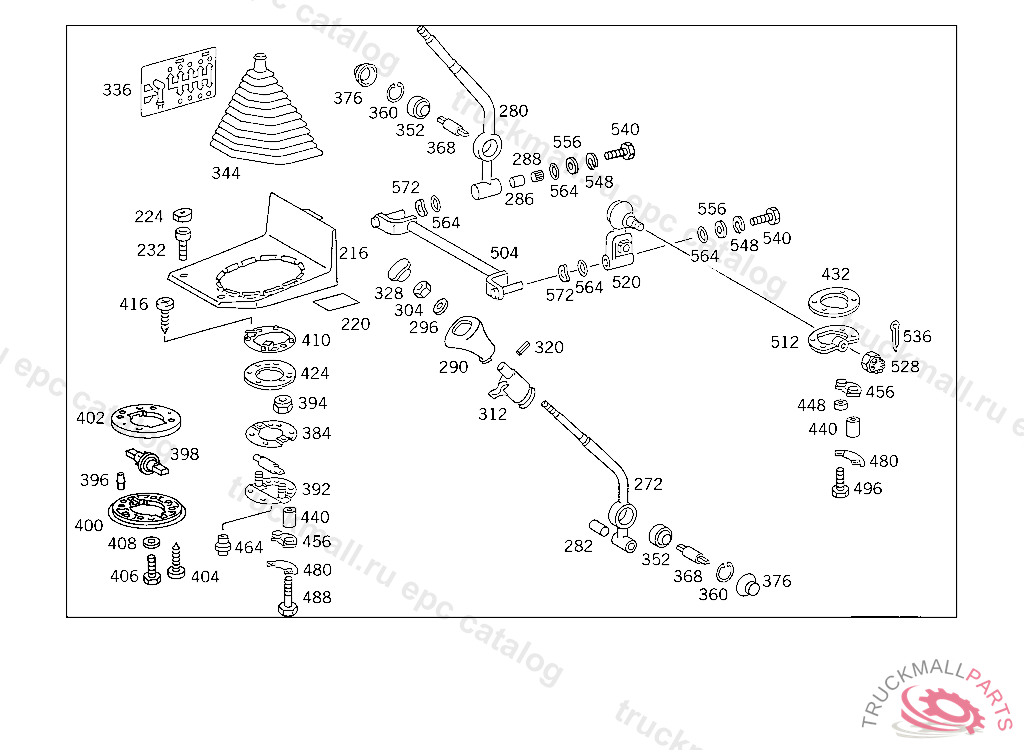

216
COVERING BOOT TO CAB
216
COVERING BOOT TO CAB
216
COVERING CAB/TRANSMISSION COMPRESSED-AIR-LINE SEPARATION POINT
216
COVERING CAB/TRANSMISSION COMPRESSED-AIR-LINE SEPARATION POINT
220
INSULATION CAB/TRANSMISSION COMPRESSED-AIR-LINE SEPARATION POINT
224
COVER COVERING TO CAB
224
COVER COVERING
232
SCREW COVERING TO CAB
232
SCREW , Replaced By: A1249900520
232
SCREWM 6X16
232
SCREW COVERING
272
SHIFT LEVER ,K 131522
272
SHIFT LEVER
272
SHIFT LEVER ,K 131522K 142857
280
SHIFT LEVER
280
SHIFT LEVER
280
SHIFT LEVER
282
BUSHING PAWL TO ROD END,5 443047
286
BUSHING
288
NEEDLE BEARING
288
NEEDLE BEARING
290
HANDLE (SHIFT LEVER HANDLE)
296
WASHER RADIATOR TO RUBBER MOUNTING
296
WASHER , Replaced By: N000125010532
304
NUT , Replaced By: N308673010000
304
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
312
VALVE GEARSHIFT LEVER LOWER PART WABCO
312
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403697, Replaced By: A0012605357
312
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403697, Replaced By: A0012602457
312
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 528951, Replaced By: A0012606357
312
VALVE SHIFT LEVER HERION
320
CLAMPING SLEEVE (SHIFT LEVER VALVE)
328
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
336
GUMMED LABEL EIGHT-SPEED,ASHTRAY
336
GUMMED LABEL , Replaced By: A9415842238
344
BOOT SHIFT LEVER
352
JOINT BEARING SHIFT LEVER BEARING,K040603
352
JOINT BEARING SHIFT LEVER BEARING,K040603
360
LOCK RING SHIFT LEVER BEARING
368
PIN SHIFT LEVER BEARING,K040603
376
BOOT SHIFT LEVER BEARING
384
BRACKET SHIFT LEVER UPPER PART,K040603
392
BRACKET SHIFT LEVER LOWER PART,K040603
394
NUT , Replaced By: N913004008001
394
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
396
BUSHING COMPRESSED AIR LINE THRU CAB FLOOR,K040603
398
PIN SHIFT LEVER BEARING,K 040604
400
BRACKET SHIFT LEVER LOWER PART,K 040604
402
BRACKET SHIFT LEVER UPPER PART,K 040604
404
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
404
SHEET METAL SCREW BRACKET TO FLOOR PLATE
406
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
406
SCREW , Replaced By: N000933008337
406
SCREW , Replaced By: A0099900101
408
WASHER , Replaced By: N000125008443
408
WASHER , Replaced By: N000125008443
408
WASHER EXHAUST MUFFLER TO STRAP
410
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
416
SHEET METAL SCREW BRACKET TO CAB
424
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
432
RUBBER PAD SHIFTING TRANSFER,LEFT
440
TUBE. BUSHING CAB FLOOR COVERING
448
SPACER TUBE SHIFTING TRANSFER,LEFT
456
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
464
BUSHING SHIFT LEVER BEARING TO CAB FLOOR
480
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
488
SCREW SUPPORT TO FENDER
488
SCREW , Replaced By: N304017008018
488
SCREW , Replaced By: N304017008018
496
SCREW , Replaced By: N304017008027
496
SCREW , Replaced By: N304017008034
496
SCREW , Replaced By: N304017008021
496
SCREW BRACKET TO CROSS CONNECTION STRUT
496
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
496
SCREW PIPE CLAMP
504
SHIFTING ROD FRONT, TRANSVERSE
504
ROD FRONT, TRANSVERSE
512
BRACKET SHIFTING TRANSFER,LEFT
520
JOINT SHIFTING TRANSFER,LEFT
528
NUT JOINT TO LEVER
536
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
540
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
548
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
556
WASHER LEVER TO BRACKET 30X10.5X4 MM
564
SEAL RING LEVER BEARING
572
SPRING WASHER LEVER TO BRACKET
999
SHIFT MECHANISM ELECTROPNEUMATIC POWER SHIFT, 625.101,652-654 5 984064 625.129,655-659 5 957779
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
HANDLE 3/2-WAY VALVE TO BRACKET
999
HANDLE TRANSFER CASE ACTUATION
999
SCREW BRACKET TO BEARING BRACKET,K 274033
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
FITTING (PARTS KIT),LINE RUPTURE
999
TS DOUBLE FITTING (PARTS KIT),LINE RUPTURE 4MM
999
HOSE , Replaced By: A0009872827
999
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
999
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
BOOT SHIFT LEVER
999
SHIFTING ROD REAR
999
BRACKET SHIFT MECHANISM
999
BRACKET LINE MOUNTING
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
SHIM , Replaced By: A6552680184
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
SHIM SHIFT MECHANISM AND BRACKET TO CAB FLOOR
999
COVERING SHIFT MECHANISM
999
COVERING SHIFT MECHANISM
999
GUMMED LABEL , Replaced By: A6555840338
999
GUMMED LABEL , Replaced By: A6555840438
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 984064 625.129,655-659 5 957779
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 984064 625.129,655-659 5 957779
999
GUMMED LABEL GEARSHIFT DIAGRAM
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH
999
GUIDE SIGN P.T.O. CONTROL
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH
