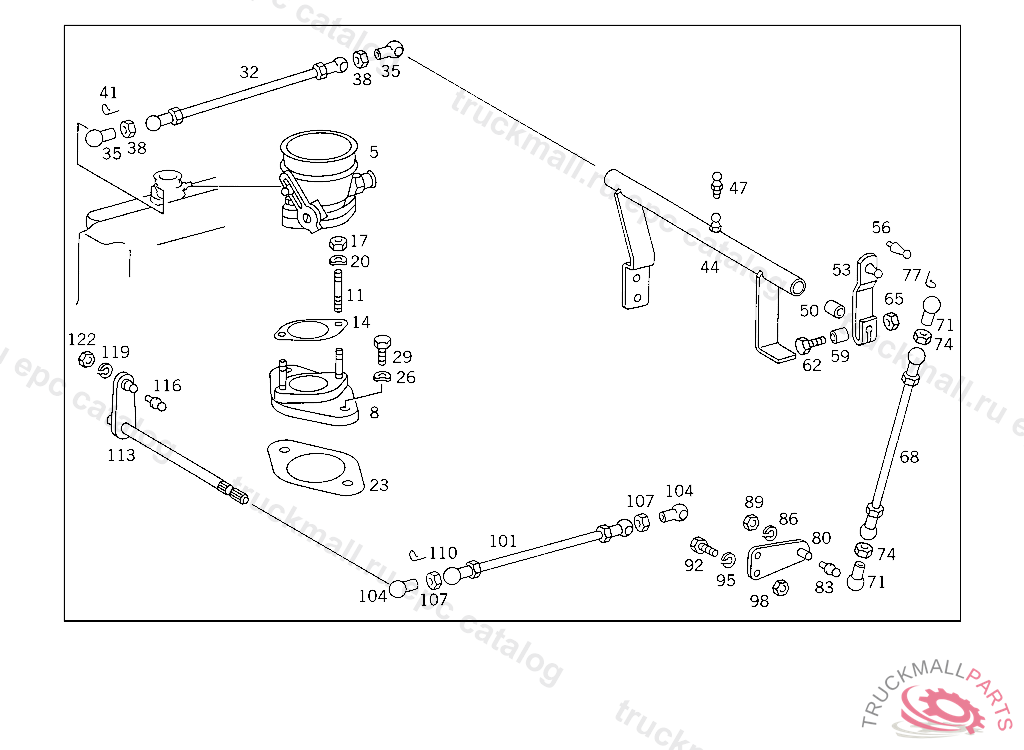

Поз.
Артикул
Описание
5
MIXTURE CONTROLLER
8
FLANGE
11
STUD BOLT , 637229
14
GASKET MIXTURE CONTROLLER TO INTERMEDIATE FLANGE
17
HEX. NUT M 12 DIN 934-5 S. NUT , Replaced By: N000934012021
20
SPRING WASHER
23
GASKET FLANGE TO INTAKE MANIFOLD
26
SPRING WASHER STEERING COLUMN BRACKET TO CAB
29
SCREW BRACKET TO SIDE MEMBER M10X30
32
ROD FROM MIXTURE CONTROLLER TO INTERMEDIATE SHAFT
35
BALL SOCKET CONTROL
38
NUT , Replaced By: N304032006004
41
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
44
BRACKET
44
BRACKET , NOT USED
47
GREASE NIPPLE LOCK ANGLE SENSOR
50
BUSHING MOUNTING
50
BUSHING CONTROL LEVER
53
LEVER CONTROL LEVER
53
LEVER CONTROL LEVER
56
BALL PIVOT , Replaced By: A3129910120
59
SPACER TUBE VIBRATION ABSORBER TO BRACKET 39 MM, TO BE ADAPTED DURING ASSEMBLY
59
SPACER TUBE , Replaced By: A3210720053
62
SCREW
65
NUT , Replaced By: N304032006004
68
ROD FROM CHANGE-OVER TIMING CONTROL TO INTERMEDIATE SHAFT
71
BALL SOCKET PULL ROD TO LEVER
74
NUT , Replaced By: N304032006004
77
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
80
LEVER CHANGE-OVER TIMING CONTROL
83
BALL PIVOT
86
LOCK WASHER CLAMP TO BRACKET
89
NUT , Replaced By: N304032006004
92
SCREW , Replaced By: N304017006016
95
LOCK WASHER CABLE TO FUSE BOX
98
NUT , Replaced By: N304032006004
101
ROD FROM CHANGE-OVER TIMING CONTROL TO INTERMEDIATE SHAFT
104
BALL SOCKET CONTROL
107
NUT , Replaced By: N304032006004
110
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
113
SHAFT (CONTROL SHAFT)
116
BALL PIVOT
119
LOCK WASHER RESISTOR
122
NUT , Replaced By: N304032006004
