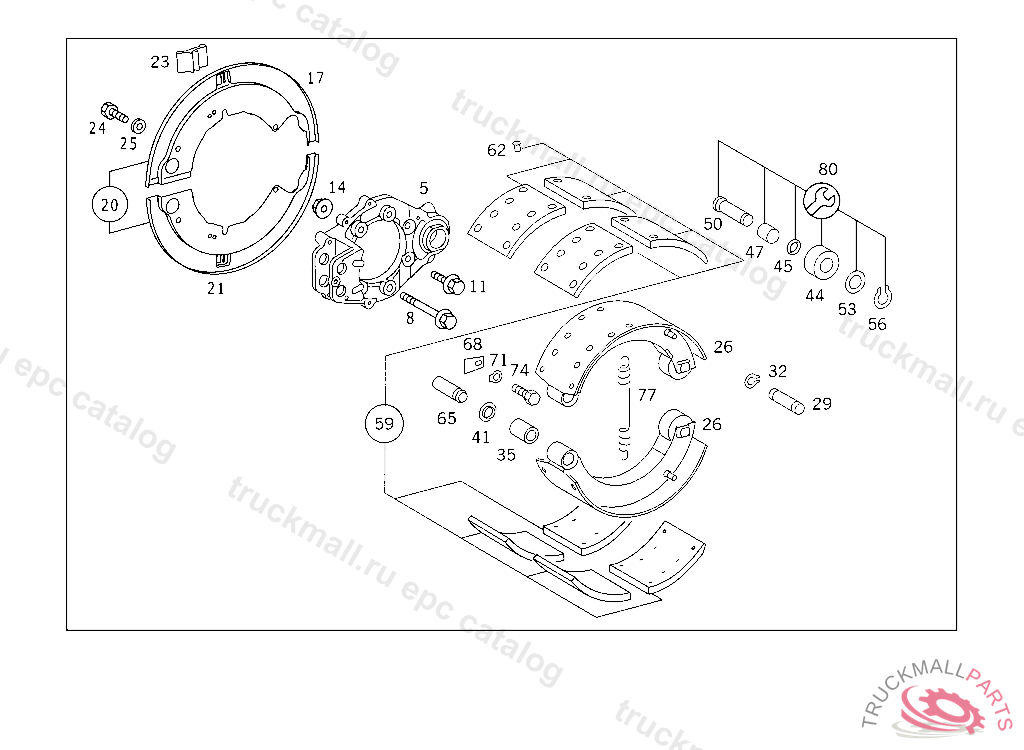

Поз.
Артикул
Описание
5
BRAKE ANCHOR (BRAKE ANCHOR)
8
SCREW CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
8
SCREW BEARING BRACKET TO BRAKE ANCHOR
11
SCREW BRAKE ANCHOR TO AXLE HOUSING 70 MM
11
SCREW ,1 789238 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3469902504, +001A3859900150
14
NUT WITH COLLAR
14
NUT BEARING BRACKET TO BRAKE ANCHOR
14
NUT , Replaced By: A0009905750
20
PROTECTIVE PLATE PARTS KIT, TO BE ADAPTED DURING ASSEMBLY
20
PROTECTIVE PLATE WITH BEAD
20
PROTECTIVE PLATE
23
PLUG
24
SCREW , Replaced By: N304017010042
25
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
26
BRAKE SHOE LESS LINING
29
PIN RELEASE SPRING
32
LOCK RING
35
BUSHING BRAKE SHOE BEARING
35
BUSHING ,669845
35
BUSHING ,669845
41
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
44
ROLLER , Replaced By: A3354200039
47
BUSHING
47
BUSHING
50
PIN BRAKE SHOE ROLLER
53
FITTED WASHER BRAKE SHOE ROLLER
56
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
59
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
59
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
59
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.0 MM
62
RIVET , Replaced By: A3079900197
62
RIVET
62
RIVET
62
RIVET
65
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
68
LOCK BRAKE SHOE TO BRAKE ANCHOR
74
SCREW , Replaced By: N910106010018
77
SPRING (RELEASE SPRING)
80
REPAIR KIT BRAKE SHOE ROLLER
