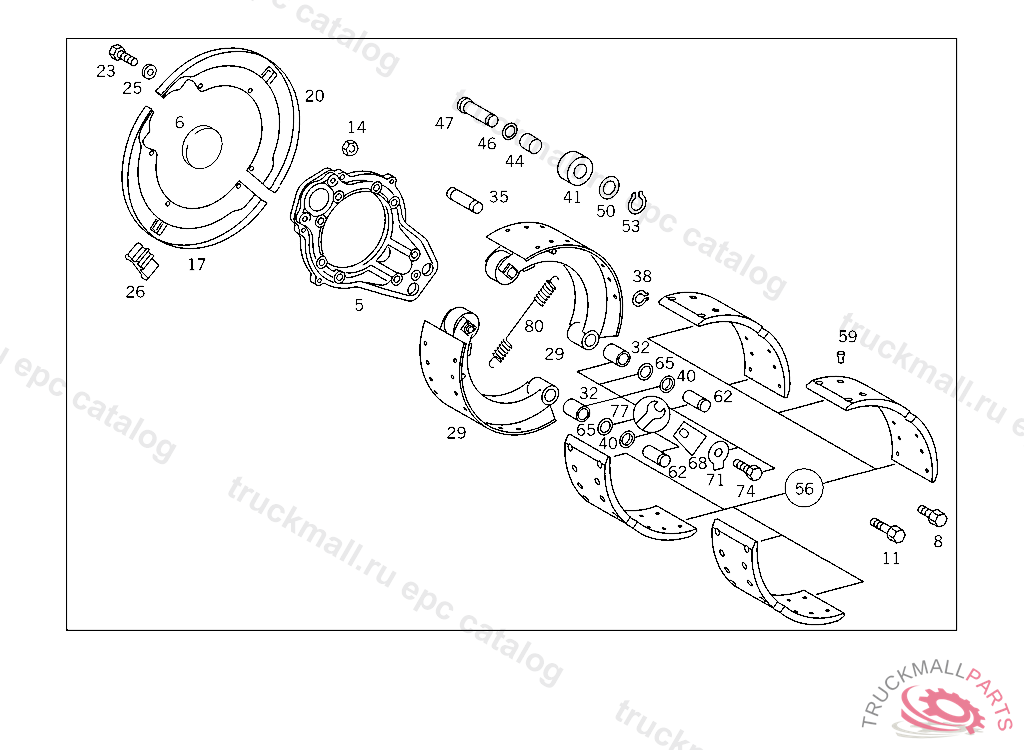

Поз.
Артикул
Описание
5
BRAKE ANCHOR (BRAKE ANCHOR)
6
OIL BAFFLE (BRAKE ANCHOR)
8
SCREW BEARING BRACKET TO BRAKE ANCHOR
8
SCREW CENTRAL BEARING CROSS MEMBER TO SIDE MEMBERS
11
SCREW BRAKE ANCHOR TO AXLE HOUSING 70 MM
11
SCREW ,1 789238 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3469902504, +001A3859900150
14
NUT WITH COLLAR
14
NUT , Replaced By: A0009905750
23
SCREW , Replaced By: N304017010042
25
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
26
PLUG
29
BRAKE SHOE CAST VERSION
32
BUSHING BRAKE SHOE BEARING
32
BUSHING ,669845
32
BUSHING ,669845
35
PIN RELEASE SPRING
38
LOCK RING
41
ROLLER , Replaced By: A3014200039, +002A0039971548
44
BUSHINGTO 301 420 00 39
44
BUSHING BRAKE SHOE ROLLER
46
SEAL RING BRAKE SHOE PIN TO BRAKE ANCHOR
47
PIN BRAKE SHOE ROLLER
50
WASHER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N000988017100
50
FITTED WASHER BRAKE SHOE ROLLER
53
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
56
BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING 17.0 MM
56
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING) 18.0 MM
56
BRAKE LINING (PARTS KIT),REPAIR SIZE II (ASBESTOS-FREE BRAKE LINING) 19.0 MM
59
RIVET
59
RIVET
59
RIVET
62
PIN BRAKE SHOE TO BRAKE ANCHOR PLATE,078418
68
LOCK BRAKE SHOE TO BRAKE ANCHOR
74
SCREW , Replaced By: N910106010018
77
REPAIR KIT BRAKE SHOE ROLLER
80
SPRING (RELEASE SPRING)
999
PROTECTIVE PLATE PARTS KIT
