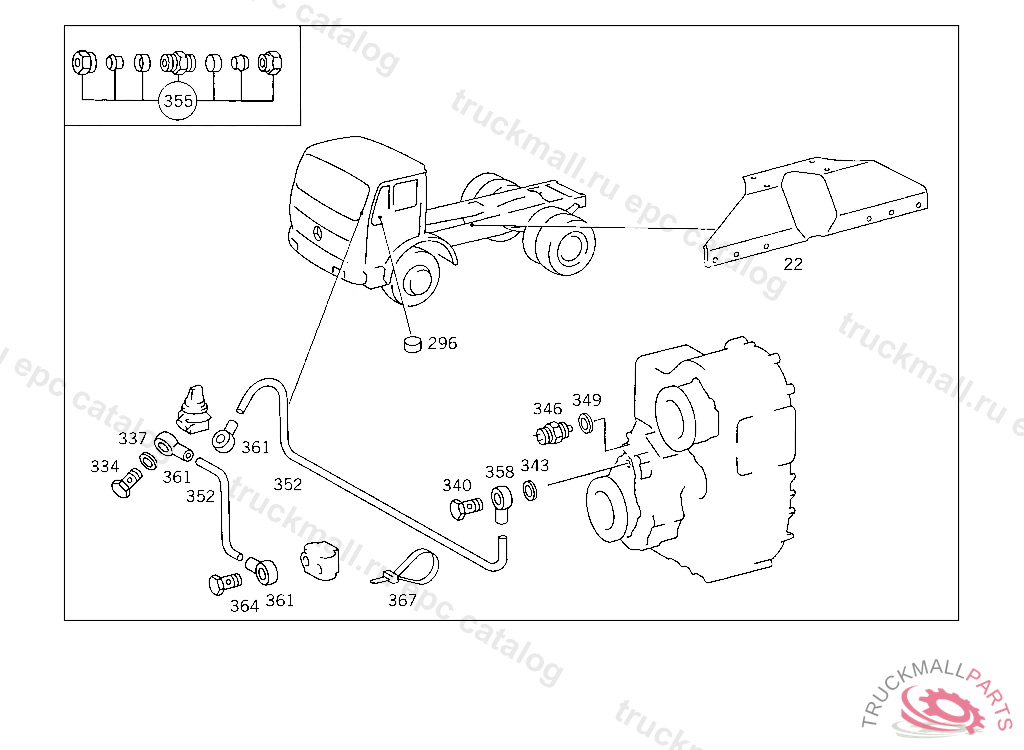

Поз.
Артикул
Описание
22
ANGLE BOTTOM LEFT,5 297102
22
ANGLE BOTTOM RIGHT,5 297102
296
PLUG ENGINE TUNNEL, NOT USED
334
HOLLOW SCREW LINE CONNECTION
337
SEAL RING AT OPERATING VALVE
337
SEAL RING PNEUMATIC VALVE
340
HOLLOW SCREW HEATING CONNECTION
343
SEAL RING LINE CONNECTION
346
SWITCH , Replaced By: A0015455709
346
SWITCH
346
SWITCH
349
SEAL RING VALVE TO VALVE,K 025179
352
PLASTIC PIPE RISING PIPE 4X6 MM
352
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
355
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
358
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
361
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
364
HOLLOW SCREW HEATING CONNECTION
367
LOOM TIE LINE MOUNTING 280 MM
999
GUSSET PLATE LEFT
999
GUSSET PLATE RIGHT
