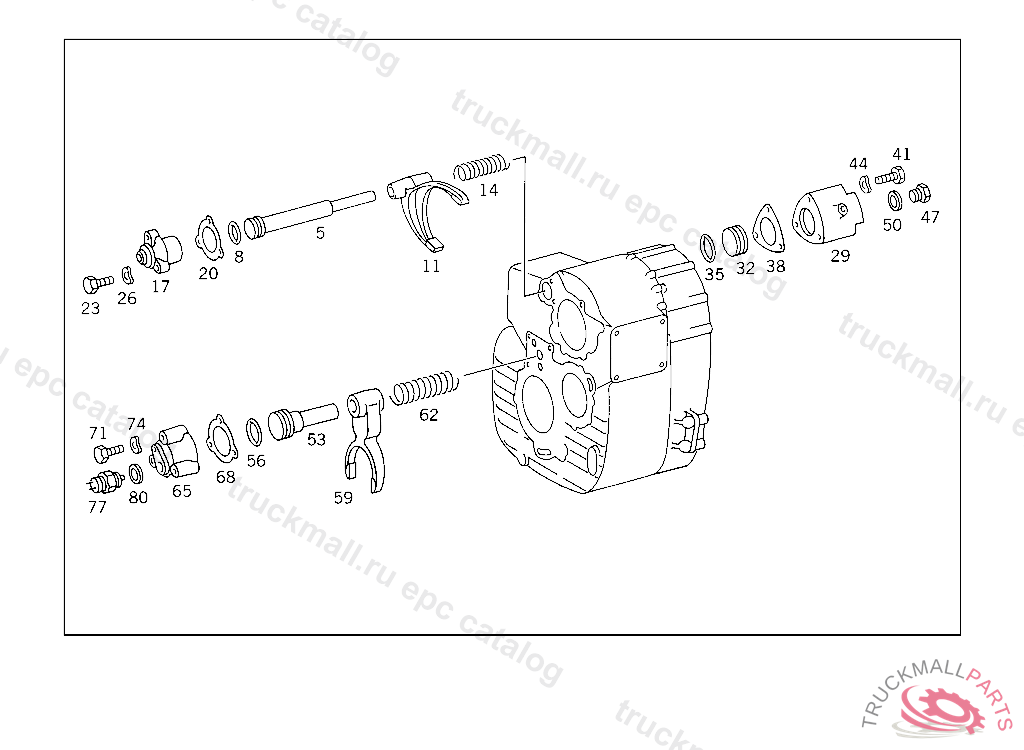

Поз.
Артикул
Описание
5
SHIFTING ROD ON-ROAD/OFF-ROAD SPEED
8
SEAL RING P.T.O. CONTROL
11
SHIFTING FORK ON-ROAD/OFF-ROAD SPEED
14
SPRING SHIFTING FORK
17
SHIFTING CYLINDER FRONT AXLE DRIVE
20
GASKET CYLINDER TO HOUSING
20
GASKET , Replaced By: A3872811580
23
SCREW CYLINDER TO HOUSING
26
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
26
SPRING WASHER , Replaced By: N000137008212
29
CYLINDER , Replaced By: A6592840485
29
SHIFTING CYLINDER ON-ROAD/OFF-ROAD SPEED
32
PISTON TRANSVERSE DIFFERENTIAL LOCK
35
SEAL RING SHIFTING FORK,021424
38
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
41
SCREW SHIFTING CYLINDER TO INTERMEDIATE FLANGE M 8X70
41
SCREW , Replaced By: N910107008043
44
SPRING WASHER , Replaced By: N000137008212
44
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
47
SCREW PLUG
50
SEAL RING VALVE TO VALVE,K 025179
53
ROD (PISTON)
56
SEAL RING SHIFTING FORK,021424
59
SHIFTING FORK LONGITUDINAL DIFFERENTIAL LOCK, FROM TRANSFER CASE 005834
62
SPRING SHIFTING FORK
65
SHIFTING CYLINDER LONGITUDINAL DIFFERENTIAL LOCK
68
GASKET CYLINDER TO P.T.O. HOUSING
68
GASKET , Replaced By: A3852811180
71
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
74
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
74
SPRING WASHER , Replaced By: N000137008212
77
SWITCH , Replaced By: A0015458214
77
SWITCH , Replaced By: A0015455709
77
SWITCH
77
SWITCH
80
SEAL RING VALVE TO VALVE,K 025179
