Mercedes
›
VAN
›
208CDI, 211CDI, 213CDI FROM IDENT-NR. R337627, 5337627, A901274
›
901.621
›

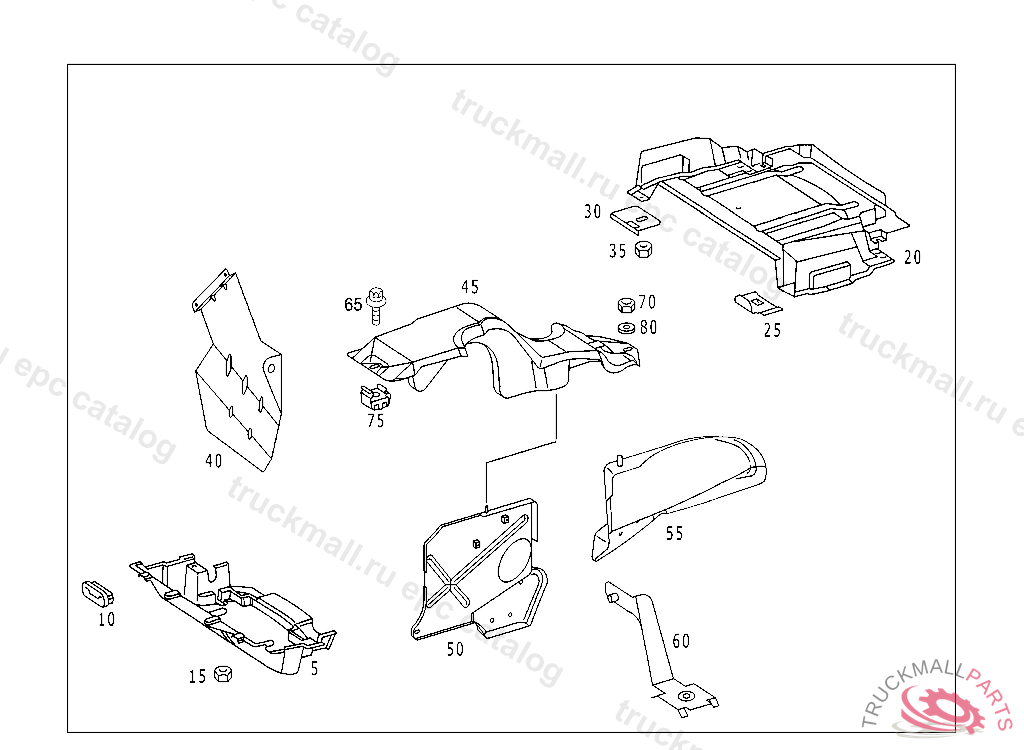

52 SHEET METAL / AIR INTAKE
›
290 ENGINE COMPARTMENT PANELLING
Mercedes N304032006004 - Гайка / mutter
208CDI, 211CDI, 213CDI FROM IDENT-NR. R337627, 5337627, A901274 901.621
52 SHEET METAL / AIR INTAKE - 290 ENGINE COMPARTMENT PANELLING
Поз.
Артикул
Описание
5
A9015240825
ANTINOISE CAPSULE
5
A9015240325
ANTINOISE CAPSULE , Replaced By: A9015240825
10
A9015240081
RUBBER BUFFER. RUBBER BUMPER ANTINOISE CAPSULE TO FRAME
15
N304032006004
NUT SPRING-LOADED PUSH ROD
20
A9015240925
ANTINOISE CAPSULE
25
A9015200841
BRACKET AT FRAME, LEFT
30
A9015200941
BRACKET
35
N304032006004
NUT SPRING-LOADED PUSH ROD
40
A9015280022
COVERING. COVER
45
A9015242228
COVERING. COVER
50
A9015200422
COVERING. COVER
55
A9015200122
COVERING REAR
60
A9015200741
BRACKET BOTTOM COVERING
65
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
70
N910112006001
NUT , Replaced By: N913023006001
75
N913014006004
NUT SHIFTING SHAFT
80
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
