Mercedes N910105008072 -

5

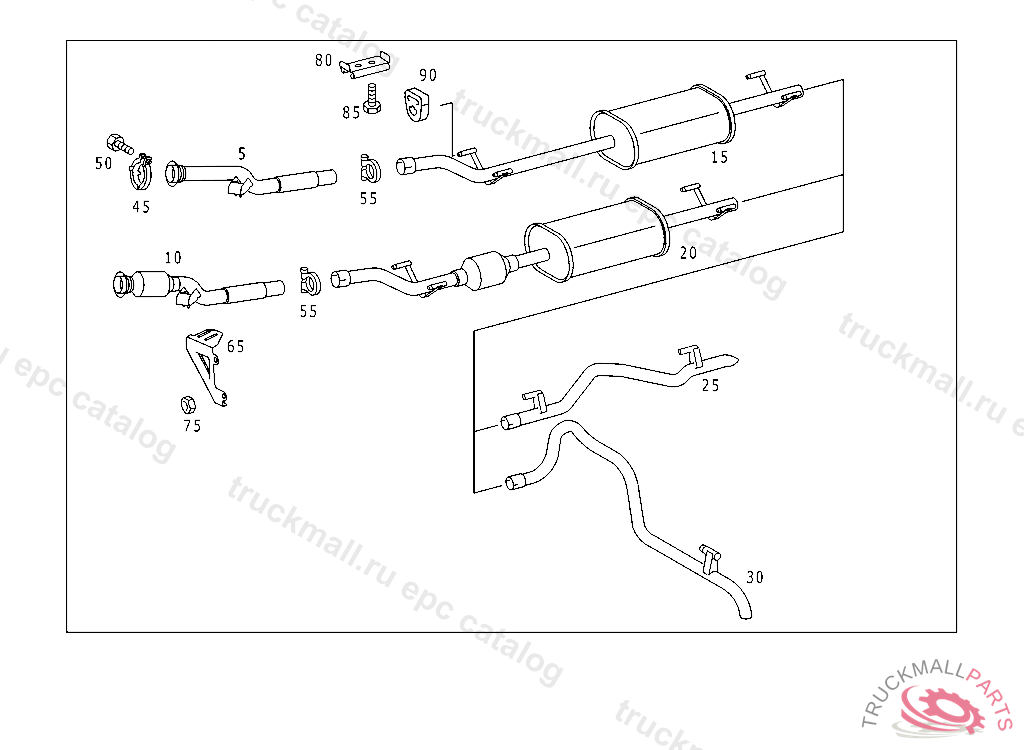

EXHAUST PIPE

5

EXHAUST PIPE , Replaced By: A9014903319

10

CATALYST. CATALYTIC CONVERTER ONLY FOR RETROFIT SYSTEM FOR DIESEL PARTICULATE REDUCTION, IMPORTANT! RATING FOR FINE DUST BADGE REMAINS UNCHANGED ON VEHICLES WITH TRUCK REGISTRATION. ON VEHICLES WITH TRUCK REGISTRATI ON (CODE 41), BE SURE TO NOTE SERVICE MARKETING LETTER SMB 45 - 2009.

15

EXHAUST PIPE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9014903019

15

EXHAUST PIPE , INAPPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER TO BE ADAPTED DURING ASSEMBLY

20

EXHAUST PIPE , ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER

20

EXHAUST PIPE , ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER

25

EXHAUST PIPE REAR/WHEELBASE: 3000 MM

45

CLAMP CLAMP TO EXHAUST PIPE ABRACADEIRA TUBULAR

50

HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET

55

CLAMP

65

BRACKET BRACKET TO CYLINDER CRANKCASE

75

NUT HORN TO BRACKET M8

80

BRACKET REAR EXHAUST PIPE TO FRAME

85

SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET

90

SUSPENSION RING
