Mercedes N007981005306 - ШУРУП

208CDI, 211CDI, 213CDI, 216CDI FROM IDENT-NR. R337627, 5337627, A901274 902.621

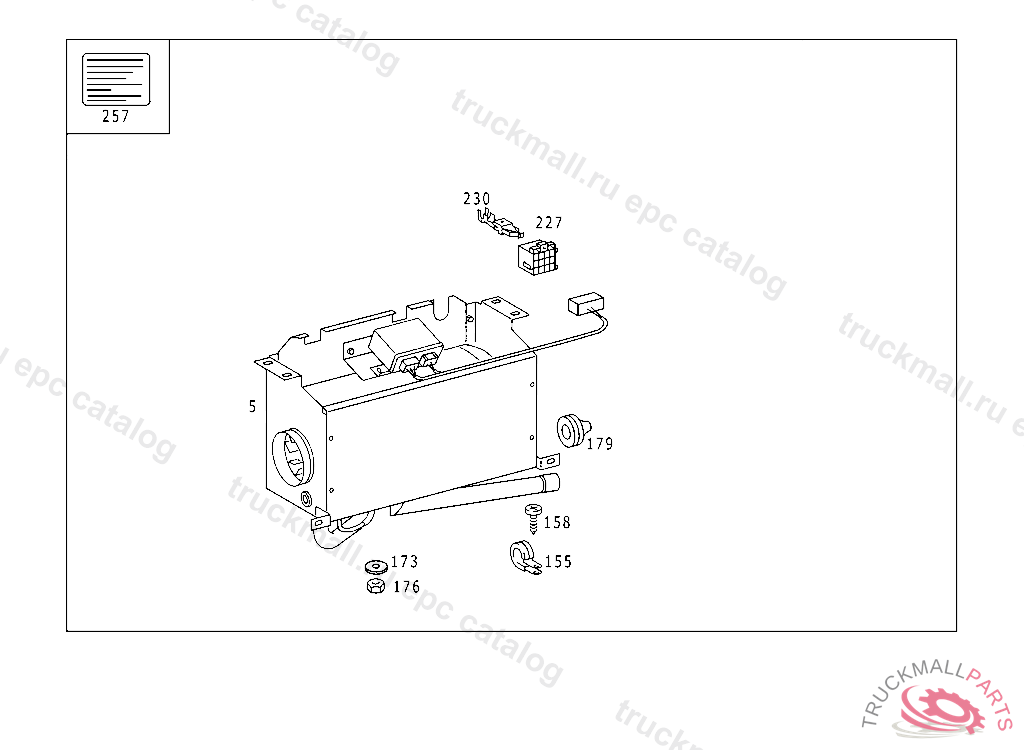

83 HEATING AND VENTILATION - 320 HOT AIR AUXILIARY HEATER IL. 1

Поз.
Артикул
Описание
5
A0048306861
HEATER UNIT
155
N916016025201
CLAMP HOSE TO FLANGE AND TO VALVE
155
N916016028204
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
158
N007981005306
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
173
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
173
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
176
N304032006000
NUT
179
A6019970381
GROMMETD8/36
227
A0055459426
PIN BUSHING HOUSING 12-POLE, GREEN TO 011 545 80 26,81 26, OLD VERSION UP TO CONNECTOR HOUSING CONVERSION
230
A0115458126
CONTACT SPRING0.5-1.0 MM2
230
A0115458026
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.0-2.5 MM2
257
A9015840136
OPERATING PLATE
