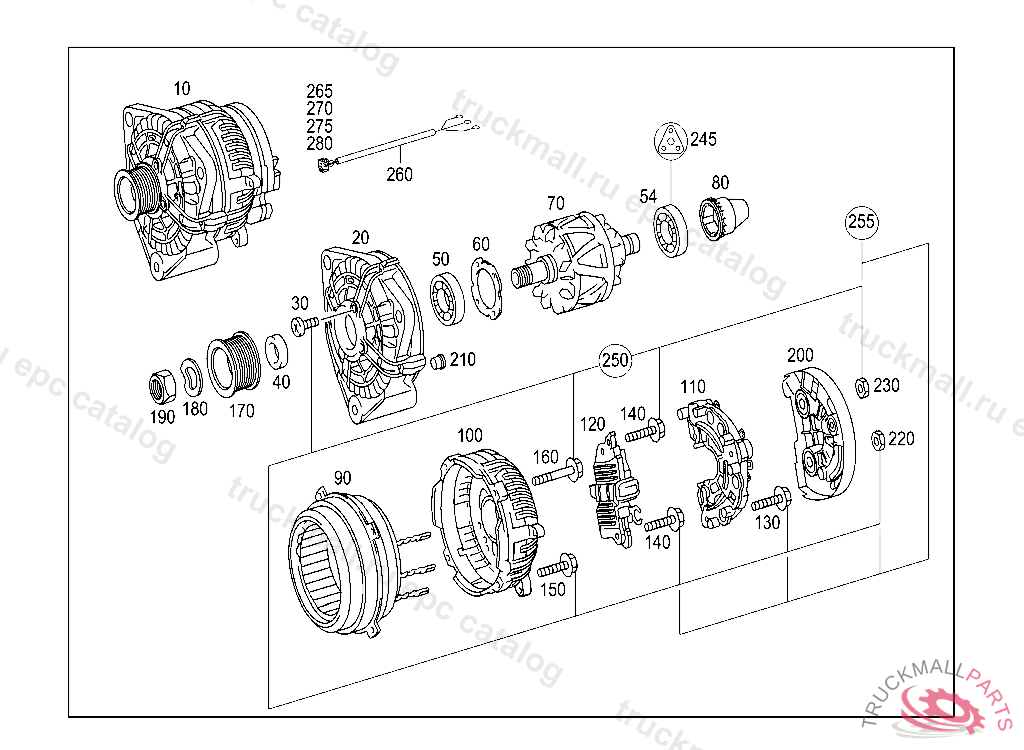

Поз.
Артикул
Описание
10
ALTERNATORFA.BOSCH, NCB1 28V/35-80A
10
THREE-PHASE ALTERNATORREMY 18SI 28V-80A, NOT USED
20
BEARINGTO 013 154 50 02
30
SCREWTO A 013 154 78 02,
40
SPACER RING
50
BALL BEARING
54
BALL BEARINGTO A 000 150 46 50
60
SPACER WASHER
70
ROTORTO A 000 150 46 50
80
RINGTO A 376 154 03 02
90
COILTO 013 154 50 02
100
BEARINGTO 013 154 50 02
110
RECTIFIERBOSCH - TO A0141545302
120
REGULATORTO 013 154 50 02
130
SCREW RECTIFIER TO A 011 154 94 02, 92 02
140
SCREWTO A 013 154 78 02,
150
SCREWTO A 013 154 78 02,
160
SCREW
170
PULLEY AT ALTERNATOR
180
WASHER PULLEY TO ALTERNATOR
190
NUT
200
PROTECTIVE CAPTO 013 154 79 02 / 014 154 54 02, Replaced By: A0009989623
210
COLLARED BUSHING. BUSHING
220
NUTTO A 000 150 42 50
230
NUT COVER TO A 011 154 94 02, 92 02
245
TS ANNULAR BALL BEARING. GROOVED BALL BEARING PARTS KIT, Replaced By: A0009807215
250
TS FASTENING PARTS KIT. ATTACHMENT PARTS KIT TO 013 154 79 02 / 014 154 54 02
