Mercedes N000137008212 - Гайка

2124 375.150

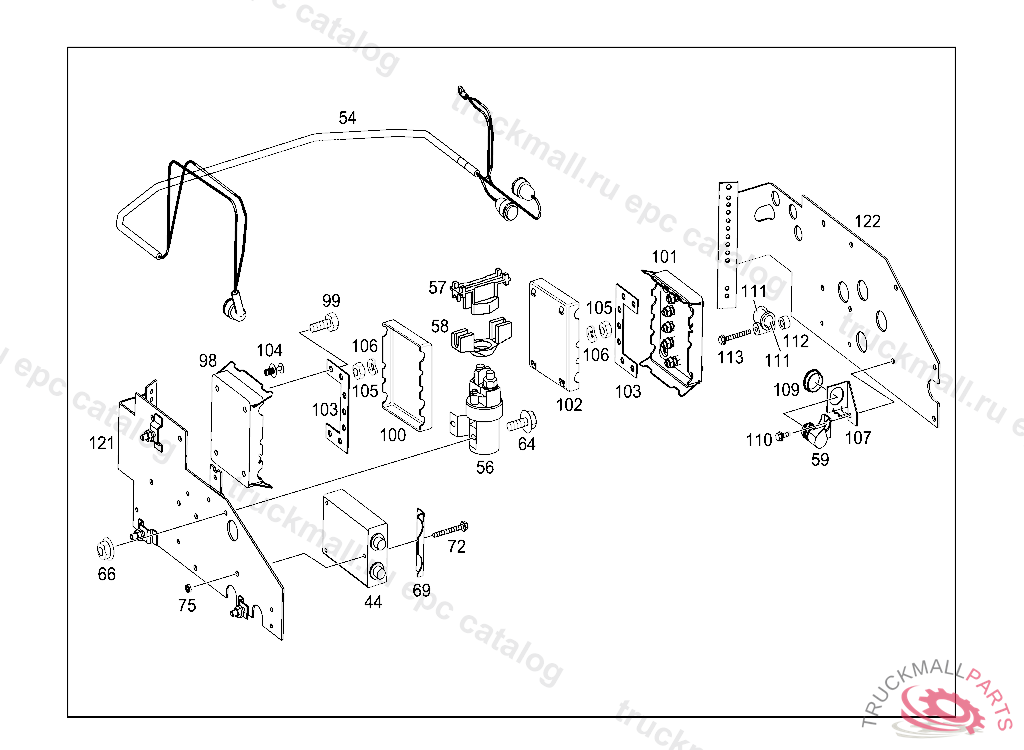

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 080 BATTERY AND CONNECTING CABLES IL. 5

Поз.
Артикул
Описание
57
A6555450883
CAP FOR COVER OF CONTACTS ON BATTERY CARRIER
58
A6555450983
CAP FOR COVER OF CONTACTS ON BATTERY CARRIER
59
A0515451228
PLUG ADDITIONAL FUSE
72
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
98
A0365454328
HOUSING POS.
99
A0009903110
SCREW
100
A0015452603
CAP POS.
101
A0365455328
HOUSING GROUND CONNECTION
102
A0015452103
CAP GROUND CONNECTION
103
A0005460166
CONTACT BRIDGE
104
A2019900292
RIVET BUSHING AND LEVER TO CAB
105
N304032008011
HEXAGON NUT FUSE BOX M8
106
N000137008212
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
110
N910105006007
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
111
A6735460075
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
112
A4082910153
SPACER TUBE
113
N910105006012
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
113
N910105006013
SCREW. HEXAGON HEAD BOLT BATTERY CABLE M6X50
