Поз.
Артикул
Описание
1

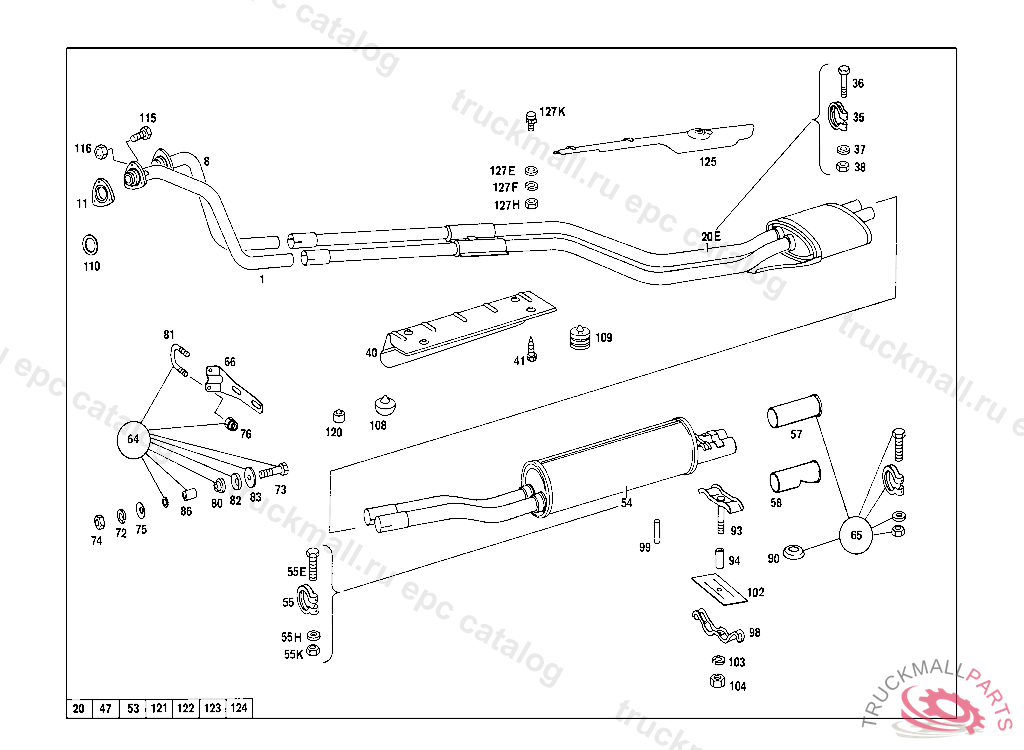

EXHAUST PIPE TO CYLINDERS NOS. 1-3, 002575
8
EXHAUST PIPE CYLINDERS NOS.4-6
11
FLANGE
35
CLAMP , 003 078977 086 003334 ALSO INSTALLED ON 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
35
CLAMP , Replaced By: A0004900341
35
CLAMP , Replaced By: A1144900141
36
SCREW , Replaced By: N304017008043
36
SCREW VALVE TO BRACKET M 8X55
37
WASHER BRACKET TO CROSS MEMBER
38
NUT
40
PROTECTIVE PLATE
41
SCREW , Replaced By: N007976004217
55
CLAMP , 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
55
CLAMP , Replaced By: A1074900041
58
END PIECE , FOR SUBSQUENT INSTALLATION IN CASE OF TAIL SOILING,SHORTEN EXHAUST PIPE BY 75 MM
64
REPAIR KIT FRONT EXHAUST PIPE SUSPENSION
65
REPAIR KIT FROM PLUG CONNECTION, ONLY APPLICABLE TO EXHAUST MUFFLER WITH PIPE CLAMP
65
REPAIR KIT , Replaced By: A1145860649
66
BRACKET , 114.011 014698 114.015 125698 114.023 009130 114.060 003009 114.062 003318 114.072 002880 114.073 000421
72
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
73
SCREW VALVE TO BRACKET
74
NUT
75
DISC SPRING EXHAUST PIPE TO BRACKET
76
NUT POWER CYLINDER TO BRACKET
76
NUT , Replaced By: A0009903250
80
RUBBER RING BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
81
CLAMPING BRACKET EXHAUST PIPE TO BRACKET
82
WASHER HIGH PRESSURE HOSE TO BRACKET
83
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
86
SPACER TUBE
90
DAMPING PAD EXHAUST PIPE SUSPENSION
108
RUBBER BUFFER , Replaced By: A1079871140
108
RUBBER BUFFER , Replaced By: A1079870840
108
RUBBER BUFFER STOP ABOVE POSTERIOR MUFFLER TO BRACKET ON CROSS MEMBER
109
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
110
SEAL RING
115
SCREW
116
NUT POWER CYLINDER TO BRACKET
116
NUT , Replaced By: A0009903250
120
RUBBER BUFFER
999
EXHAUST MUFFLER WITH PIPE CENTRAL,CLAMP-ON VERSION
999
EXHAUST PIPE , Replaced By: A1144900115
999
EXHAUST PIPE , 002574, Replaced By: A1144901619, +001A0010940082, +001A1141400070, +001A1141430025, +001A1144901719, +001N000137006101, +001N000933006016
999
MUFFLER WELDED VERSION, NO LONGER AVAILABLE INSTEAD CLAMP-ON VERSION
999
PROTECTIVE PLATE , UP TO CHASSIS: 073 001470
999
SCREW LINES UNDER FUEL TANK
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
SCREW , Replaced By: N304017008043
999
NUT CYLINDER TO BRACKET TO0002902112
999
SHEET METAL SCREW BRACKET TO CAB
999
SHEET METAL SCREW. TAPPING SCREW , Replaced By: N007981003203
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
NUT BATTERY MOUNTING
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
