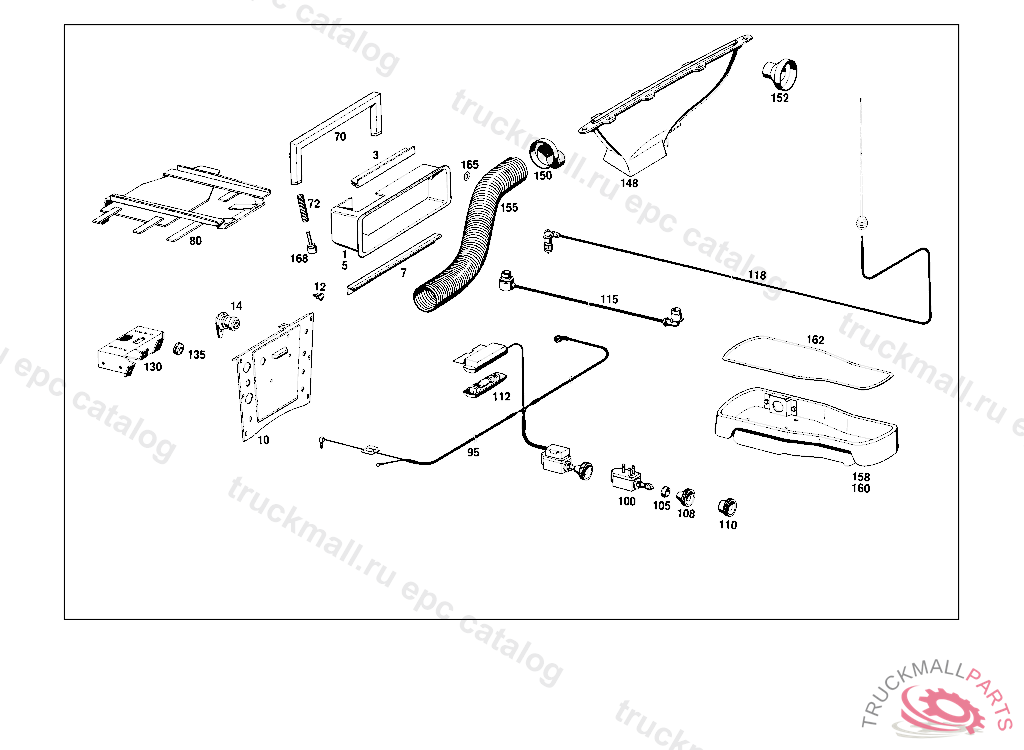

Поз.
Артикул
Описание
1
ORNAMENTAL COVER
3
COVERING
5
GLOVE COMPARTMENT
7
RAIL
10
INSTRUMENT PANEL
12
RUBBER BUFFER
14
FASTENER LESS KEY, STATE LOCK NUMBER WHEN ORDERING
70
CLAMPING FIXTURE
72
SPRING
72
SPRING , Replaced By: A1158280367
80
BRACKET
95
ELECTRIC CABLE , Replaced By: A1158204217
95
ELECTRIC CABLE , NOT USED
100
SWITCH , Replaced By: A0018216151, +001A1158201492
100
SWITCH INSTRUMENT PANEL
105
ESCUTCHEON
108
KNOB
110
KNOB INSTRUMENT PANEL
110
KNOB , EXHAUST STOCK OF OLD PARTS 108.016 FROM CHASSIS 045640,108.018,019 FROM CHASSIS 047663,108.057,058,067,068 FROM CHASSIS 000001,109.016 FROM CHASSIS 00249 9,109.018 FROM CHASSIS 003663 AND FOOTN.62 108.016,018,019,057,058,067,068,109.016,018,056,057,111.024,026 UNTIL PRODUCTION STOP AND FOOTN.97, Replaced By: A1158202392
112
READING LAMP
115
ELECTRIC CABLE
118
ELECTRIC CABLE
130
BRACKET
135
GROMMET BATTERY CASE
148
DEFROSTER NOZZLE
150
CONNECTING PIPE
152
CONNECTING PIPE
155
HOSE
158
SHELL , Replaced By: A1158400074
158
SHELL , UP TO CHASSIS: 114.010 042887 114.015 047931 115.000,010 047801 115.015 049453 115.100,103,110 115422 115.115 053537
160
SHELL , UP TO CHASSIS: 114.010 042887 114.015 047931 115.000,010 047801 115.015 049453 115.100,103,110 115422 115.115 053537
160
SHELL , Replaced By: A1158410174
162
LINING , STATE COLOR NUMBER WHEN ORDERING FROM CHASSIS:114.010 055772 114.015 066578 115.010 065219 115.015 071769 115.110 163880 115.115 078211
165
RUBBER RING
168
STOP SCREW , Replaced By: A2019880211
999
FELT *** 320 MM, ORDER BY THE METER
999
GROMMET BLINKER LAMP BRANCH-OFF
999
GROMMET BLINKER LAMP BRANCH-OFF
999
LOOM TIE , Replaced By: A1149970590
999
LOOM TIE
999
FASTENER WITH KEY, WITH LOCK NUMBER UNDEFINED,FOR STORAGE PURPOSES ONLY THE LOCK NUMBER MUST NOT BE IDENTICAL WITH THE LOCK NUMBER(MASTER AND SECONDARY DEY SYSTEM)OF THE CAR
999
GLOVE COMPARTMENT
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
WASHER HEAT SHIELD TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
LOCK RING STEERING WHEEL HEIGHT ADJUSTMENT,4 188879
999
RIVET
999
SCREW COVER PLATE TO BRACKET
999
SCREW CONTROL UNIT TO APPARATUS PANEL
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
NUT BALL PIVOT TO LEVER
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SHEET METAL SCREW , NOT USED
999
SHEET METAL SCREW FUSE BOX TO BRACKET
999
SHEET METAL SCREW
999
SHEET METAL SCREW , UP TO CHASSIS: 108.016 068406 108.018,018 074621 109.016 UNTIL PRODUCTION STOP 109.056 004428
999
SCREW ELECTRIC CABLE TO HORN
999
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW SWITCH TO BRACKET M6X35
999
SCREW , UP TO CHASSIS: 114.010 042887 114.015 047931 115.000,010 047801 115.015 049453 115.100,103,110 115422 115.115 053537
999
WASHER , Replaced By: N009021004207
999
WASHER COVERING TO CYCLONE AIR TRAP
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
INSULATING HOSE BLACK 12 X 0,8 MM
999
BULB INTERIOR LAMP K-12V 10W
999
BULB , Replaced By: A6885447093
999
COUNTERSUNK WASHER , UP TO CHASSIS: 108.016 068406 108.018,018 074621 109.016 UNTIL PRODUCTION STOP 109.056 004428
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
