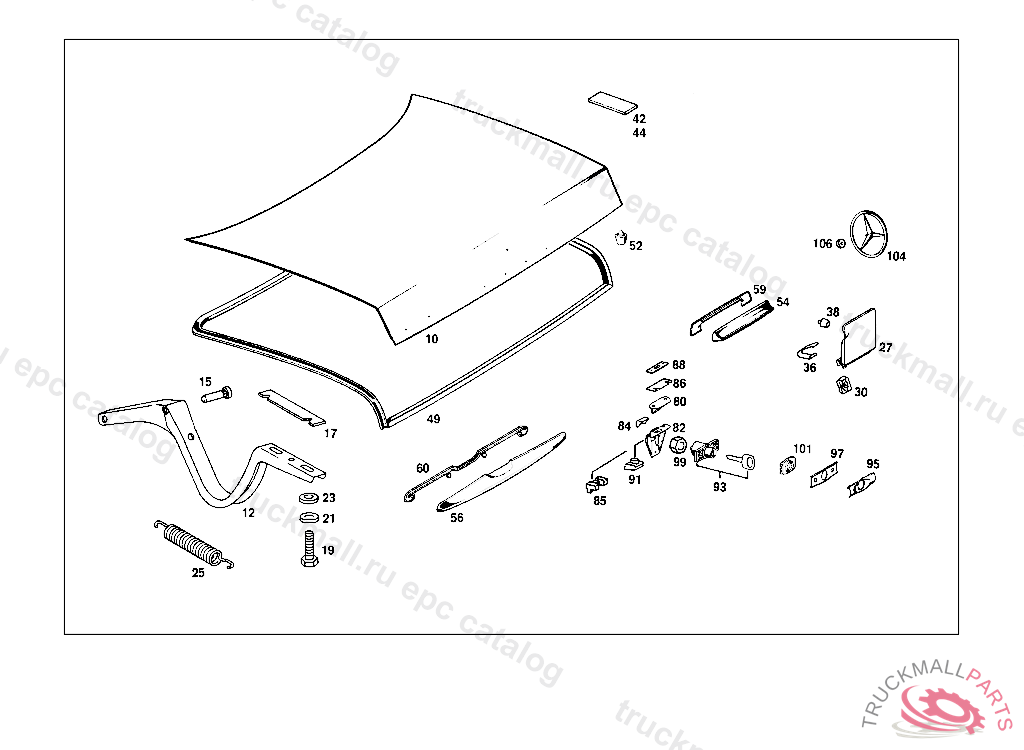

Поз.
Артикул
Описание
10
REAR LID
12
HINGE LEFT
15
PIN
17
BASE PLATE
19
SCREW COVER PLATE TO BRACKET
21
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
23
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
25
SPRING
27
FLAP
30
LOCK GROMMET TO CAB,4 940046
36
SPRING
36
SPRING
38
RUBBER BUFFER
42
INTERMEDIATE LAYER11 MM, FROM CHASSIS: 010 002636 015 000135 048481
44
INTERMEDIATE LAYER6 MM, FROM CHASSIS: 010 054508 110 134760 017,114,117 000001
49
SEAL
52
RUBBER BUFFER
54
HANDLE
56
HANDLE , FROM CHASSIS: 023 100026 072 100209 073 100070
59
PAD
60
PAD , FROM CHASSIS: 023,072,073 100001
80
LOCK
82
LOCK
84
RUBBER BUFFER , UP TO CHASSIS: 011 103290 015,017 215059 060 105269 062 103388
84
BUFFER , Replaced By: A1169870539
85
RUBBER BUFFER , UP TO CHASSIS: 011 103290 015,017 215059 060 105269 062 103388
86
BASE PLATE
88
PLATE
91
NUT RETAINER ,123 415950
93
LOCK LESS KEY, STATE LOCK NUMBER WHEN ORDERING
95
LINING
97
PAD
99
NUT TWO-WAY VALVE TO BRACKET
101
FILLER
104
MERCEDES STAR
106
RUBBER RING
999
NUT
999
SCREW , Replaced By: N000000001146
999
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
999
NUT , Replaced By: N304032008006
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
SCREW FUSE BOX TO SIDE MEMBER,5 097182
999
SCREW CLAMP MOUNTING M 6X16
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
SPACER TUBE , Replaced By: A1157580334
999
STRUT , Replaced By: A1157580897
999
SPRING , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 015 249261 017 036714 110 438990 114 004885 115 263609 117,119 073788, Replaced By: A1237580336
999
HINGE RIGHT
999
LOCK WORKSHOP VERSION, WITH KEY, USED WITHOUT CODE 466 (CENTRAL LOCKG.MECHANISM)
999
REAR LID , UP TO CHASSIS: 015 200000 110 400000 115 200000, Replaced By: A1157500675, +001A1077580202, +001A1077580205, +001A2018200801, +004N000137004101, +004N007985004149
999
FLAP , Replaced By: A1157500106
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1119871540
999
PLATE , Replaced By: A1167500011
999
PAD , FROM CHASSIS: 015 200001 110 400001 115 200001 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS: 015 201804 017 000919 110 402151 115 201889 117,119 000487, Replaced By: A1077580205
999
HANDLE , FROM CHASSIS: 015 200001 110 400001 115 200001 UP TO CHASSIS: 015 201804 017 000919 110 402151 115 201889 117,119 000487, Replaced By: A1077580202, +001A1077580205
999
NUT , Replaced By: N913004005001
999
NUT RETAINER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0009909991
999
SCREW
