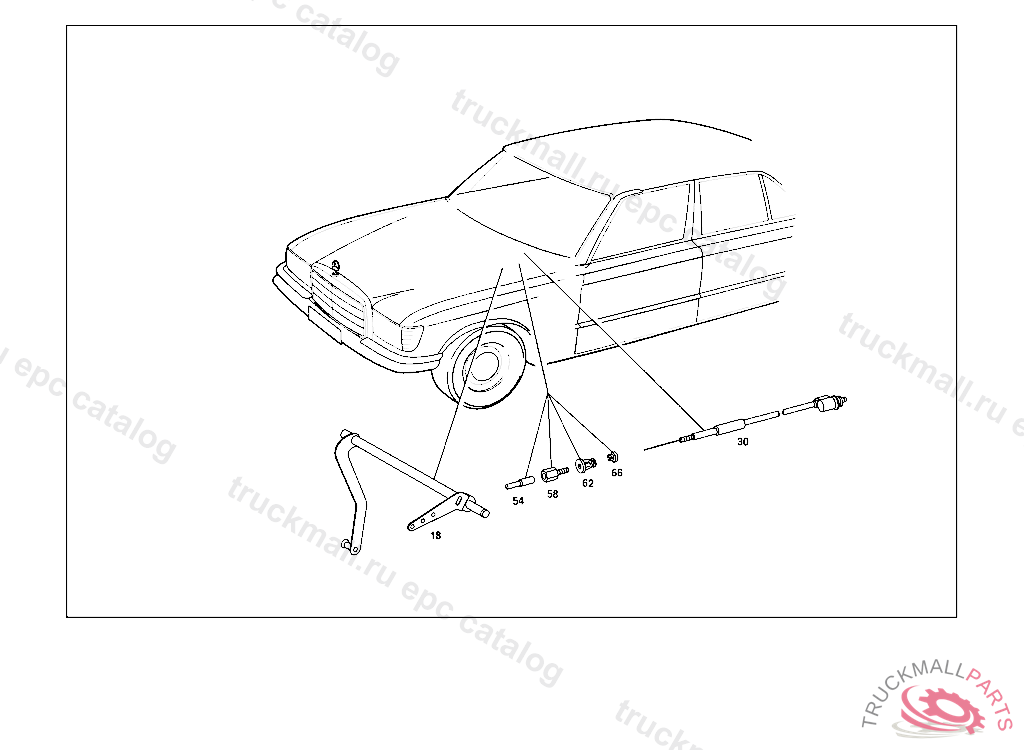

230 USA - 114.015 - 30 CONTROL
Поз.
Артикул
Описание
18
SHAFT
30
WIRE CABLE
54
SLEEVE
54
SLEEVE , Replaced By: A1233020209
58
SCREW
62
BRACKET
66
BUSHING
999
BUTTON IDLING ADJUSTMENT,303364
999
WIRE CABLE , Replaced By: A1153000832
999
WIRE CABLE , Replaced By: A1153000332
999
WIRE CABLE
999
RING WIRE CABLE TO LEVER
999
LOCK WASHER 3/2-WAY SOLENOID VALVE TO BRACKET
999
SCREW IN CASE OF SUBSEQUENT INSTALLATION
999
NUT TACHOGRAPH TO BRACKET
