Поз.
Артикул
Описание
8

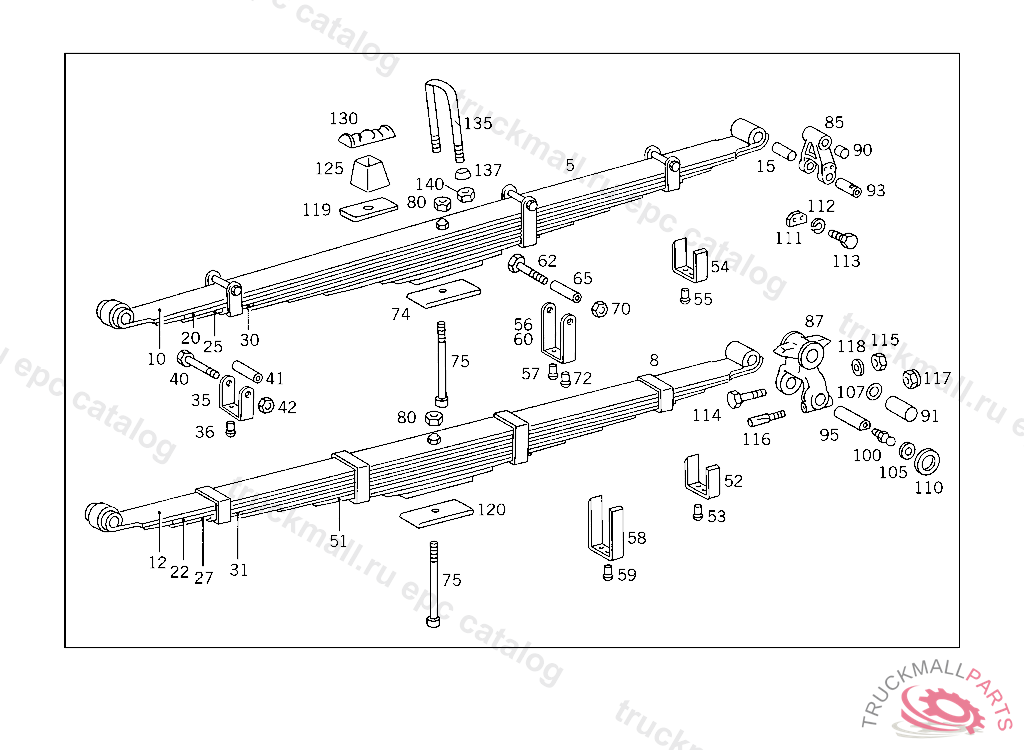

FRONT SPRING 9-LEAF
12
SPRING LEAFNO.1
15
BUSHING
15
BUSHING
22
SPRING LEAFNO.2
27
SPRING LEAFNO.3
31
SPRING LEAFNO.4
35
SPRING CLAMP AS REQUIRED
35
SPRING CLAMP AS REQUIRED,A 006845
35
SPRING CLAMP AS REQUIRED
36
RIVET SPRING CLAMP TO SPRING LEAF
51
SPRING LEAFNO.7
52
SPRING CLAMP AS REQUIRED
52
SPRING CLAMP AS REQUIRED
52
SPRING CLAMP AS REQUIRED,A 006845
53
RIVET SPRING CLAMP TO SPRING LEAF
75
SPRING BOLTM 12X125
80
NUT LEAF SPRING
85
SHACKLE ,A 006845
87
SHACKLE , Replaced By: A3533220120, +001A3533220050
90
BUSHING ,A 006845
91
BUSHING
91
BUSHING
93
SHACKLE PIN ,A 006845
93
SHACKLE PIN ,464616 ONLY APPLICABLE TO FRONT SPRING BRACKET 344 322 01 01
95
SHACKLE PIN , Replaced By: A3855860332
95
SHACKLE PIN , Replaced By: A3923227030
95
SHACKLE PIN ,A 006846
100
GREASE NIPPLE PROTECTIVE TUBE
105
WASHER AS REQUIRED 4.00 MM
105
WASHER AS REQUIRED 4.20 MM
107
SPACER WASHER
110
SEAL RING SPRING SUSPENSION
111
LOCK ,A 006845
112
LOCK WASHER
113
SCREW
114
SCREW CLAMP TO DRAG LINK TO 000 463 05 17
115
HEX. NUT. NUT SHIFT LEVER KNOB
116
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
117
NUT ,A 006846
118
WASHER , Replaced By: N000125010532
119
SHIM ,A 006845
130
PLATE FRONT SPRINGS TO FRONT AXLE
135
U-BOLT LEFT
135
U-BOLT RIGHT
135
U-BOLT , Replaced By: A3523310025
137
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
140
NUT FRONT SPRINGS TO FRONT AXLE
999
SPRING LEAF , Replaced By: A3443200393
999
SPRING LEAF , Replaced By: A3443200293
999
SPRING LEAF NO.3,WITH SPRING CLAMP, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
SHACKLE PIN , Replaced By: A3443227030
999
BUSHING ,A 006845
999
BUSHING ,A 006845
