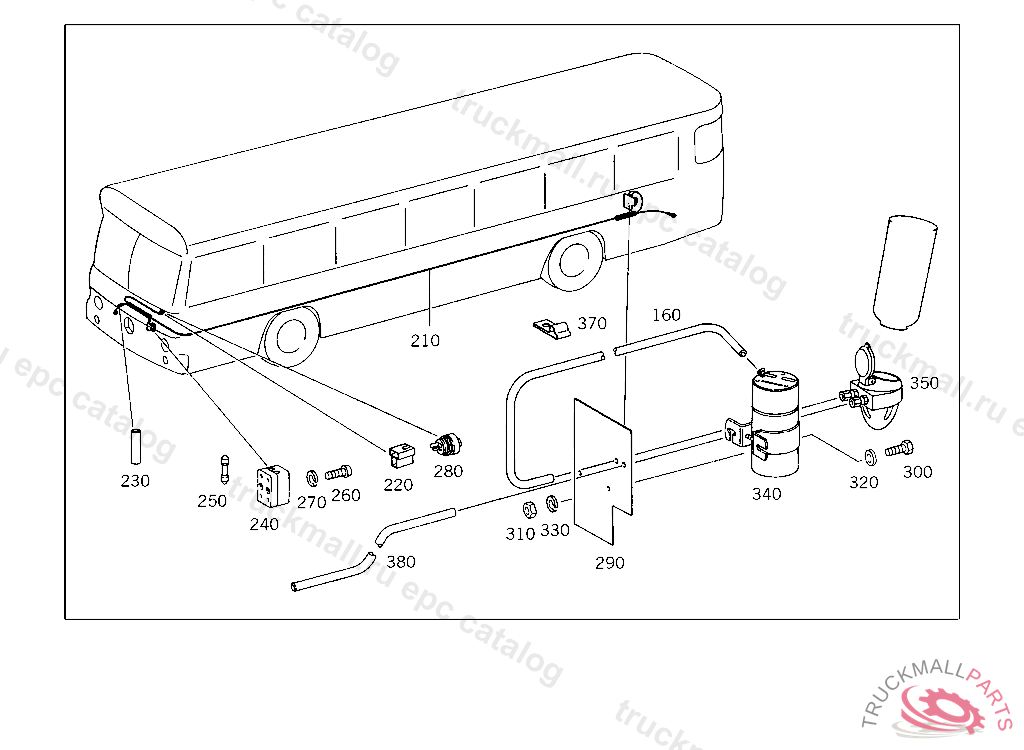

Поз.
Артикул
Описание
160
HOSE FROM HAND PUMP TO PRIMER CAPSULE
210
CABLE HARNESS FROM SWITCH TO ELECTRIC MOTOR
220
PIN BUSHING HOUSING , Replaced By: A0015458728
220
PIN BUSHING HOUSING BIPOLAR
230
GROMMET3.0 MM
240
FUSE BOX BIPOLAR,K 100807 MIT AUSNANME VON K 093739
250
FUSEA8
260
SCREW FUSE BOX MOUNTING
270
LOCK WASHER ELECTRIC CABLE TO HORN
280
SWITCH
280
SWITCH
290
MOUNTING PLATE
300
HEX. HEAD. SCREW COMPRESSOR TO SUPPORT
310
NUT BALL PIVOT TO LEVER
320
WASHER 6,4 DIN 433. WASHER BRAKE LINE MOUNTING
330
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
340
PUMP ELECTRIC
350
CAPSULE BORER
370
CLAMP
380
HOSE
999
PUMP , Replaced By: A0005501083
999
FILLING CYLINDER PRIMING FUEL
999
NUT , Replaced By: A0005550372
999
HANDLE , Replaced By: A0005550440
999
NUT , Replaced By: A0009949454
999
SEAL CONE , Replaced By: A0005550618
999
SCREW RIGHT COVERING
999
NUT LEVER TO SHIFTING SHAFT
999
NUT
999
SERRATED WASHER
999
WASHER A 8,4 DIN 9021. WASHER MOUNTING TO SUBSTRUCTURE
999
LOCK WASHER
