Mercedes N000125006421 - КРЕПЕЖ

LA 1114 341.116

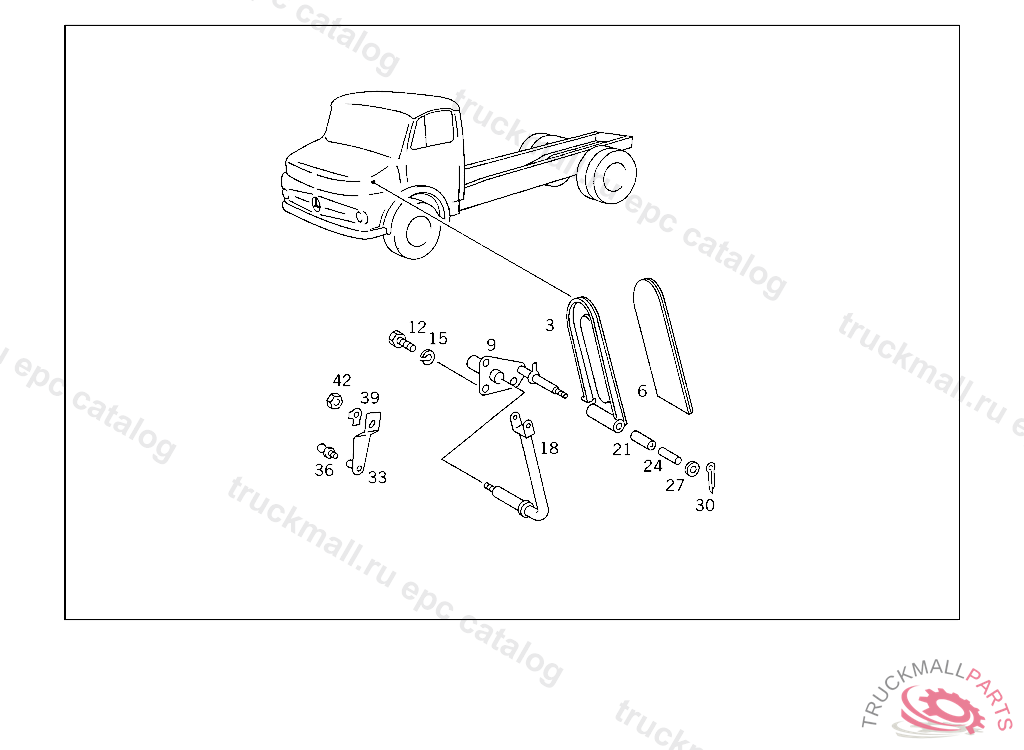

30 CONTROL - 001 ACCELERATOR PEDAL W/ROLLER

Поз.
Артикул
Описание
3
A3453007104
ACCELERATOR PEDAL
6
A3453017082
PAD
9
A3453007121
BEARING TUBE ACCELERATOR PEDAL CONTROL
12
N000933008028
SCREW IGNITION COIL TO BRACKET
15
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
18
A3453007425
LEVER
21
A3443000006
ROLLER ,GB718836
24
N001443006200
PIN ROLLER TO LEVER
27
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
30
N000094001609
COTTER PIN BATTERY COVER TO 388 540 70 14
33
A3453000225
LEVER
36
N071803010209
BALL PIVOT , Replaced By: A3129910120
39
A3603010073
LOCK LEVER TO SHAFT
42
N000936008011
NUT STEP TO APPARATUS SUPPORT
999
A3213001425
LEVER , INAPPLICABLE TO SUPERCHARGING SYSTEMGB718835
