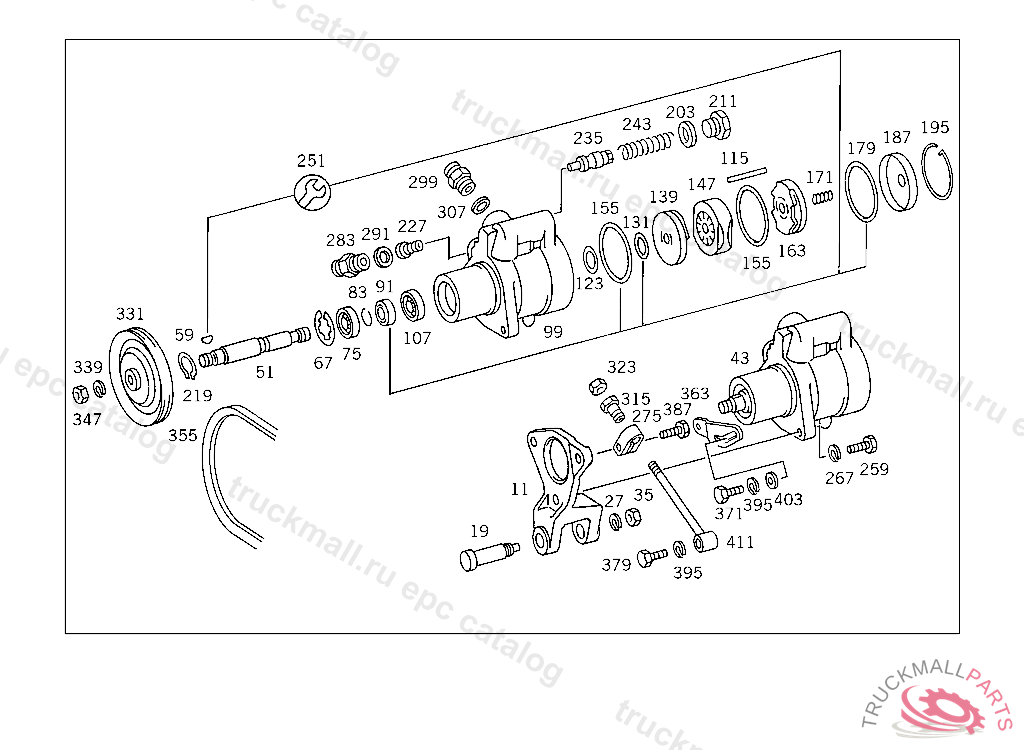

Поз.
Артикул
Описание
11
SUPPORT HYDRAULIC PUMP
19
PIN HYDR. PUMP SUPPORT TO SUPPORT OF FUEL FILTER OR POWER STEERING PUMP,RESP.
27
LOCK WASHER TRANSMISSION TO BELL HOUSING
35
NUT
43
HYDRAULIC PUMP
51
DRIVE SHAFT
59
KEY
59
KEY , Replaced By: A0009912268
59
KEY , Replaced By: A0009912568
67
LOCK RING
75
BALL BEARING
75
BALL BEARING , Replaced By: A0049810925
75
BALL BEARING , Replaced By: A0049819625
83
SNAP RING
91
SEAL RING
91
SEAL RING , Replaced By: A0005862746
99
HOUSING
107
NEEDLE BEARING , Replaced By: A0149818010
107
NEEDLE BEARING
115
DOWEL PINTO 001 466 77 01
123
SEAL RINGTO 000 460 26 80
131
SEAL RINGTO 000 553 23 01,000 553 37 01,,4 250876
139
COVER
139
COVER , Replaced By: A0004664305
139
COVER , Replaced By: A0004667105
147
SET OF ROTORS , Replaced By: A0004660221
147
SET OF ROTORS
155
SEAL RINGTO 000 460 23 80
163
COVER
163
COVER , Replaced By: A0004663505
163
COVER , Replaced By: A0004667205
163
COVER , Replaced By: A0004668005
171
SPRING , Replaced By: A0059934201
171
SPRINGTO 000 460 23 80
179
SEAL RING
187
COVERTO 000 460 23 80
187
COVER , Replaced By: A0004666505
195
SNAP RINGTO 000 460 23 80
203
SEAL RING LINE CONNECTION
211
SCREW PLUGTO 000 460 23 80
219
LOCK RING
227
CARTRIDGE
227
CARTRIDGE , Replaced By: A0004663584
235
PISTON , Replaced By: A0004664583
235
PISTON , Replaced By: A0004660483
235
PISTON
243
SPRING
251
REPAIR KIT
251
REPAIR KIT (GASKET KIT),POWER STEERING PUMP TO 001 466 19 01/27 01
259
SCREW , Replaced By: N304017010040
267
LOCK WASHER , Replaced By: N912004010102
275
CLAMPING PIECE , Replaced By: A3141550228
275
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
275
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
283
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
291
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
299
FITTING DELIVERY LINE TO PUMP
299
FITTING POWER STEERING PUMP M16X1,5/M22X1,5,D 084765
299
SCREW-IN FITTING OIL LINE CONNECTION
307
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
315
NUT ALTERNATOR
315
NUT TIGHTENER PULLEY TO LEVER
323
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
323
NUT STRAP TO SUPPORT,5 149419
331
PULLEY HYDRAULIC PUMP
331
PULLEY HYDRAULIC PUMP
339
LOCK WASHER SUPPORT TO SIDE MEMBER
347
NUT , Replaced By: N308675014000
355
NARROW V-BELT , Replaced By: A0049973692
379
SCREW CROSS MEMBER TO SIDE MEMBERS
387
SCREW (CLAMPING BRACKET),HYDRAULIC PUMP,137360
387
SCREW BRACKET TO SIDE MEMBER M 12X40
395
LOCK WASHER , Replaced By: N912004010102
411
SCREW
