Поз.
Артикул
Описание

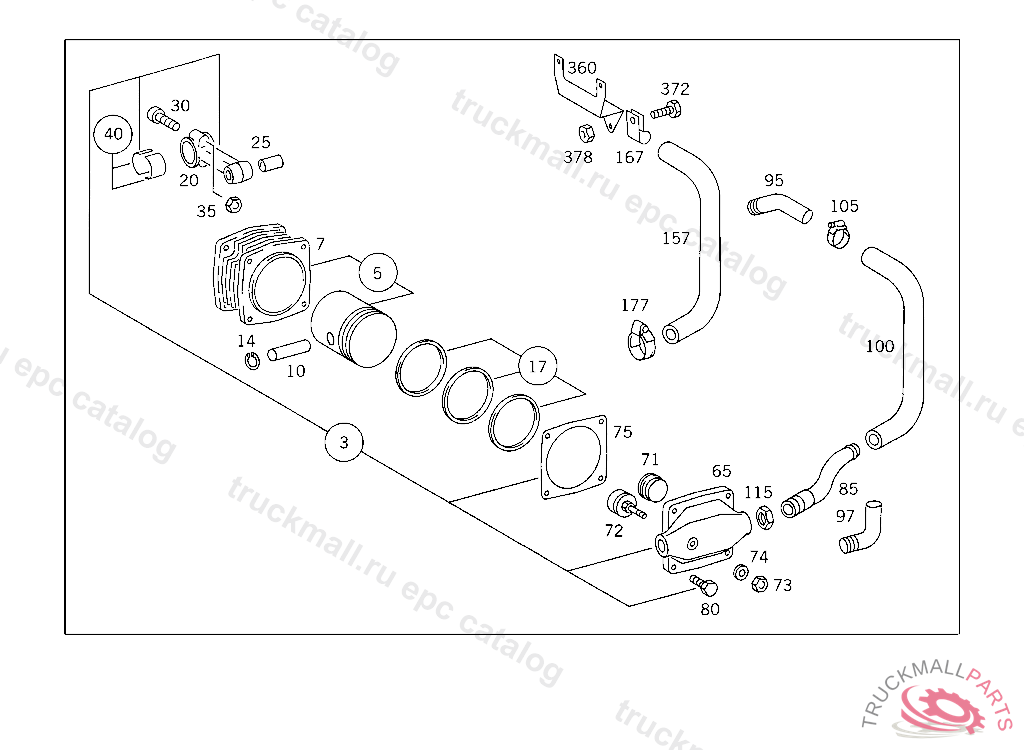

3
COMPRESSOR (ASSEMBLY KIT),FOUR-HOLE MOUNTING 94 MM
5
CYLINDER LINER WITH PISTON 94 MM
7
CYLINDER LINER
10
PISTON PIN
14
LOCK RING
17
PISTON RING PARTS KIT,STANDARD SIZES I AND II
17
PISTON RING PARTS KIT, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
17
PISTON RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0001319211
17
PISTON RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3441310011
20
CONNECTING ROD ,082679
25
BUSHING ,082679
30
SCREW CONNECTING ROD COVER TO CONNECTING ROD, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
35
NUT
40
BEARING SHELL PARTS KIT,REPAIR SIZE II 31.50 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
40
BEARING SHELL CONNECTING ROD BEARING SHELLS,31.90 MM STANDARD SIZE I,082679
40
BEARING SHELL PARTS KIT,REPAIR SIZE I 31.75 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
40
BEARING SHELL PARTS KIT,REPAIR SIZE III 31.25 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
40
BEARING SHELL CONNECTING ROD BEARING SHELLS,32.00 MM STANDARD SIZE,082679
65
CYLINDER HEAD
71
VALVE CYLINDER HEAD
72
VALVE (PRESSURE VALVE)
73
NUT PRESSURE VALVE TO CYLINDER HEAD
73
NUT PRESSURE VALVE TO CYLINDER HEAD
73
NUT PRESSURE VALVE TO CYLINDER HEAD
74
SEAL RING
75
GASKET AS REQUIRED 0.90 MM
75
GASKET , Replaced By: A3661310280
75
GASKET , Replaced By: A3661310180
75
GASKET AS REQUIRED 0.65 MM
80
SCREW BEARING BRACKET TO CAB M 8X30
85
INTAKE PIPE FROM AIR COMPRESSOR TO CYLINDER HEAD COVER
115
NUT INTERMEDIATE SPEED STOP
157
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
167
CLAMP HOSE TO BRACKET 25/20,5 206397
177
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
177
CLAMP , Replaced By: N000000000667
360
BRACKET AIR INTAKE HOSE
372
SCREW FAN TO HUB
378
NUT LEVER TO SHIFTING SHAFT
