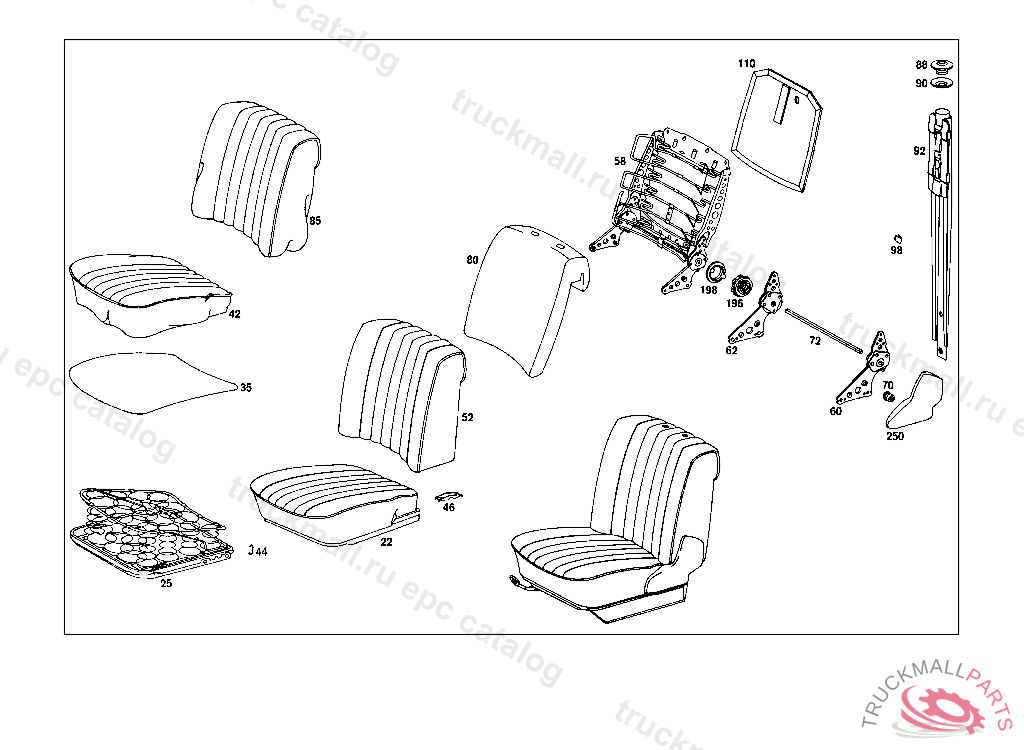

Поз.
Артикул
Описание
22
SEAT CUSHION , FROM CHASSIS: 010 111536, ALSO INSTALLED ON: 111524,111526,111528,111529,111531,111532,111534. 015 143408, ALSO INSTALLED ON: 143313-143316,143318,143319,143321,143323,143327-143331,143333,143334,143336-143341,143343-143406. 110,112 294598, ALSO INSTALLED ON: 293636,293758,293945,294045,294236,294237,294238,294336,294337,294449,294452,294456,294461-294465, 294467,294470,294473-294476,294478,294480,294483,294484,294487,294489,294490,294492,294493,294495- 294497,294499-294506,294509-294519,294521-294528,294530-294541,294543-294560,294562-294596. 115 150532, ALSO INSTALLED ON: 150441,150447,150468-150476,150478-150480,150483-150485,150487-150494,150496-150503,150505-150530. STATE COLOR NUMBER WHEN ORDERING
25
CUSHION FRAME , FROM CHASSIS: 010 111536, ALSO INSTALLED ON: 111524,111526,111528,111529,111531,111532,111534. 110 294598, ALSO INSTALLED ON: 293452,293636,293758,293945,294045,294236,294237,294238,294336,294337,294449,294456,294461-294465, 294467,294470,294473-294478,294480,294483,294484,294487,294489,294490,294492,294493,294495-294497, 294499-294506,294509-294519,294521-294528,294530-294541,294543-294560,294562-294596.
35
PAD
42
COVER , FROM CHASSIS: 010 111536, ALSO INSTALLED ON: 111524,111526,111528,111529,111531,111532,111534. 015 143408, ALSO INSTALLED ON: 143313-143316,143318,143319,143321,143323,143327-143331,143333,143334,143336-143341,143343-143406. 110,112 294598, ALSO INSTALLED ON: 293636,293758,293945,294045,294236,294237,294238,294336,294337,294449,294452,294456,294461-294465, 294467,294470,294473-294476,294478,294480,294483,294484,294487,294489,294490,294492,294493,294495- 294497,294499-294506,294509-294519,294521-294528,294530-294541,294543-294560,294562-294596. 115 150532, ALSO INSTALLED ON: 150441,150447,150468-150476,150478-150480,150483-150485,150487-150494,150496-150503,150505-150530. STATE COLOR NUMBER WHEN ORDERING
44
CLIP COVER TO PAD
46
CLIP
70
GROMMET
72
LINK , FROM CHASSIS: 010 111536, ALSO INSTALLED ON: 111524,111526,111528,111529,111531,111532,111534. 015 143408, ALSO INSTALLED ON: 143313-143316,143318,143319,143321,143323,143327-143331,143333,143334,143336-143341,143343-143406. 110,112 294598, ALSO INSTALLED ON: 293636,293758,293945,294045,294236,294237,294238,294336,294337,294449,294452,294456,294461-294465, 294467,294470,294473-294476,294478,294480,294483,294484,294487,294489,294490,294492,294493,294495- 294497,294499-294506,294509-294519,294521-294528,294530-294541,294543-294560,294562-294596. 115 150532, ALSO INSTALLED ON: 150441,150447,150468-150476,150478-150480,150483-150485,150487-150494,150496-150503,150505-150530.
110
PANELLING , FROM CHASSIS: 010 111536, ALSO INSTALLED ON: 111524,111526,111528,111529,111531,111532,111534. 015 143408, ALSO INSTALLED ON: 143313-143316,143318,143319,143321,143323,143327-143331,143333,143334,143336-143341,143343-143406. 110,112 294598, ALSO INSTALLED ON: 293636,293758,293945,294045,294236,294237,294238,294336,294337,294449,294452,294456,294461-294465, 294467,294470,294473-294476,294478,294480,294483,294484,294487,294489,294490,294492,294493,294495- 294497,294499-294506,294509-294519,294521-294528,294530-294541,294543-294560,294562-294596. 115 150532, ALSO INSTALLED ON: 150441,150447,150468-150476,150478-150480,150483-150485,150487-150494,150496-150503,150505-150530. STATE COLOR NUMBER WHEN ORDERING
198
COVERING
999
SCREW
999
SCREW TUNNEL,FRONT FLOOR M8X20
999
NUT
999
SCREW PIPE CLAMP
999
NUT , Replaced By: N304032008006
999
SCREW , Replaced By: N304017008021
999
PAD
999
COVERING , Replaced By: A1149130228
999
COVERING , Replaced By: A1149130128
999
COVERING RIGHT,LEFT FRONT SEAT
999
COVERING LEFT,RIGHT FRONT SEAT
999
BACKREST FRAME LEFT, UP TO CHASSIS: 011 102658 EXCEPT FOR: 102636,102642-102657 060 103844 EXCEPT FOR: 103821-103823,103825,103827,103829-103832,103834-103838,103840-103842,103844. 062 102769 EXCEPT FOR: 102742,102754,102757-102759,102761-102768.
999
BACKREST FRAME RIGHT
999
SPRING CORE , UP TO CHASSIS: 023 008714, Replaced By: A1149101022
999
PAD , Replaced By: A1159141114
999
PAD , Replaced By: A1159140216
999
COVERING RIGHT
999
COVERING RIGHT
999
COVERING , Replaced By: A1159132828
999
COVERING , Replaced By: A1159132728
999
COVERING , Replaced By: A1159133028
999
COVERING , Replaced By: A1159132928
999
COVERING , FROM CHASSIS: 010 025154 015 022707 110 054451 112 054299 115 025120 UP TO CHASSIS: 010 031141 015 028864 110,112 069196 115 031654, Replaced By: A1159132428, +001A1159132728, +001A1159132928, +001A1159133028
999
COVERING , FROM CHASSIS: 010 025154 015 022707 110 054451 112 054299 115 025120 UP TO CHASSIS: 010 031141 015 028864 110,112 069196 115 031654, Replaced By: A1159132328, +001A1159132828, +001A1159132928, +001A1159133028
999
COVERING , FROM CHASSIS: 010 025154 015 022707 110 054451 112 054299 115 025120 UP TO CHASSIS: 010 031141 015 028864 110,112 069196 115 031654, Replaced By: A1159132228, +001A1159132728, +001A1159132828, +001A1159132928
999
COVERING , FROM CHASSIS: 010 025154 015 022707 110 054451 112 054299 115 025120 UP TO CHASSIS: 010 031141 015 028864 110,112 069196 115 031654, Replaced By: A1159132128, +001A1159132728, +001A1159132828, +001A1159133028
999
COVERING , 010 FROM CHASSIS 130558, 110 FROM CHASSIS 225648
999
COVERING , 010 FROM CHASSIS 130558, 110 FROM CHASSIS 225648
999
COVERING , 010 FROM CHASSIS 130558, 110 FROM CHASSIS 225648
999
FRONT SEAT RIGHT
999
FRONT SEAT RIGHT
999
FRONT SEAT RIGHT
999
FRONT SEAT , Replaced By: A1159107401
999
FRONT SEAT LEFT
999
FRONT SEAT , Replaced By: A1159107301
999
BACKREST LEFT
999
BACKREST RIGHT
999
CUSHION FRAME , FROM CHASSIS: 010 111536, ALSO INSTALLED ON: 111524,111526,111528,111529,111531,111532,111534. 015 143408, ALSO INSTALLED ON: 143313-143316,143318,143319,143321,143323,143327-143331,143333,143334,143336-143341,143343-143406. 110,112 294598, ALSO INSTALLED ON: 293636,293758,293945,294045,294236,294237,294238,294336,294337,294449,294452,294456,294461-294465, 294467,294470,294473-294476,294478,294480,294483,294484,294487,294489,294490,294492,294493,294495- 294497,294499-294506,294509-294519,294521-294528,294530-294541,294543-294560,294562-294596. 115 150532, ALSO INSTALLED ON: 150441,150447,150468-150476,150478-150480,150483-150485,150487-150494,150496-150503,150505-150530., Replaced By: A1159104422
999
COVER
999
FRONT SEAT
999
FRONT SEAT RIGHT, STATE COLOR NUMBER WHEN ORDERING,AND PLEASE STATE WHETHER FRONT SEAT BACKREST SHOULD BE MADE READY FOR INSTALLATION OF HEADRES T DELIVER ADDITIONALLY:1X 115 910 01 11, 1X 115 910 02 11, 1X 115 919 01 12, 1X 007987 008132 FOR MODEL 112 UP TO CHASSIS: 010 025153 015 022706 110 054450 112 054298 115 025119
999
ADJUSTER , Replaced By: A1109108205
999
BACKREST BRACKET , Replaced By: A1159100307
999
BACKREST FRAME LEFT, "FORMFEDERUNG", TO BE USED ONLY WHEN "FORMFEDERUNG" IS PRINTED ON YOUR DATA CARD
999
ADJUSTER , Replaced By: A1109108105
999
CUSHION FRAME , UP TO CHASSIS: 015,017 129846 ALSO INSTALLED ON 130123 EXCEPT FOR: 128845,128980,129056,129058,129102,129216,129217,129704,129708,129728,129751-129753,129755-129758, 129761-129763,129768-129770,129772-129805,129807-129813,129815-129845.
999
SEAT GUIDE INSIDE RIGHT
999
SEAT CUSHION LESS COVER
999
ADJUSTER RIGHT
999
BACKREST , UP TO CHASSIS: 010 111535, EXCEPT FOR: 111524,111526,111528,111529,111531,111532,111534. 015 143407, EXCEPT FOR: 143313-143316,143318,143319,143321,143323,143327-143331,143333,143334,143336-143341,143343-143406. 110,112 294597, EXCEPT FOR: 293636,293758,293945,294045,294236,294237,294238,294336,294337,294449,294452,294456,294461-294465, 294467,294470,294473-294476,294478,294480,294483,294484,294487,294489,294490,294492,294493,294495- 294497,294499-294506,294509-294519,294521-294528,294530-294541,294543-294560,294562-294596. 115 150531, EXCEPT FOR: 150441,150447,150468-150476,150478-150480,150483-150485,150487-150494,150496-150503,150505-150530.
999
BACKREST BRACKET , Replaced By: A1159101932
999
COVERING RIGHT,FRONT SEAT,RIGHT
999
COVERING , STATE COLOR NUMBER WHEN ORDERING 023826
999
SEAT CUSHION LESS COVER , FROM CHASSIS: 010 111536, ALSO INSTALLED ON: 111524,111526,111528,111529,111531,111532,111534. 015 143408, ALSO INSTALLED ON: 143313-143316,143318,143319,143321,143323,143327-143331,143333,143334,143336-143341,143343-143406. 110,112 294598, ALSO INSTALLED ON: 293636,293758,293945,294045,294236,294237,294238,294336,294337,294449,294452,294456,294461-294465, 294467,294470,294473-294476,294478,294480,294483,294484,294487,294489,294490,294492,294493,294495- 294497,294499-294506,294509-294519,294521-294528,294530-294541,294543-294560,294562-294596. 115 150532, ALSO INSTALLED ON: 150441,150447,150468-150476,150478-150480,150483-150485,150487-150494,150496-150503,150505-150530.
999
BACKREST LEFT
999
BACKREST RIGHT
999
SCREW , Replaced By: A1109840332
999
PLATE RIGHT, 010 FROM CHASSIS 192770 ALSO INSTALLED ON, SEE FOOTNOTE 17, 011 FROM CHASSIS 035338 ALSO INSTALLED ON, SEE FOOTNOTE 18, 110 FR OM CHASSIS 336606 ALSO INSTALLED ON, SEE FOOTNOTE 19
999
ADJUSTER
999
ADJUSTER
999
BACKREST BRACKET
999
SCREW , Replaced By: A1239901022
999
SCREW , 023826
999
LOCK , 023827-069775
999
LOCK , 023827-069775
999
SCREW
999
SCREW
999
SCREW , Replaced By: N914028006100
999
SCREW
999
SCREW , Replaced By: N914028006100
999
HANDWHEEL
999
COVERING , 023827
999
BACKREST ADJUSTER RIGHT SEAT, RIGHT
999
BACKREST ADJUSTER OUTSIDE LEFT LEFT SEAT, UP TO CHASSIS: 011 102658 EXCEPT FOR: 102636,102642-102657 060 103844 EXCEPT FOR: 103821-103823,103825,103827,103829-103832,103834-103838,103840-103842,103844. 062 102769 EXCEPT FOR: 102742,102754,102757-102759,102761-102768.
999
BACKREST ADJUSTER INSIDE RIGHT, RIGHT SEAT, UP TO CHASSIS: 011 102658 EXCEPT FOR: 102636,102642-102657 060 103844 EXCEPT FOR: 103821-103823,103825,103827,103829-103832,103834-103838,103840-103842,103844. 062 102769 EXCEPT FOR: 102742,102754,102757-102759,102761-102768.
999
BACKREST ADJUSTER RIGHT SEAT, LEFT
999
BACKREST ADJUSTER INSIDE RIGHT
999
BACKREST ADJUSTER OUTSIDE RIGHT
