Поз.
Артикул
Описание

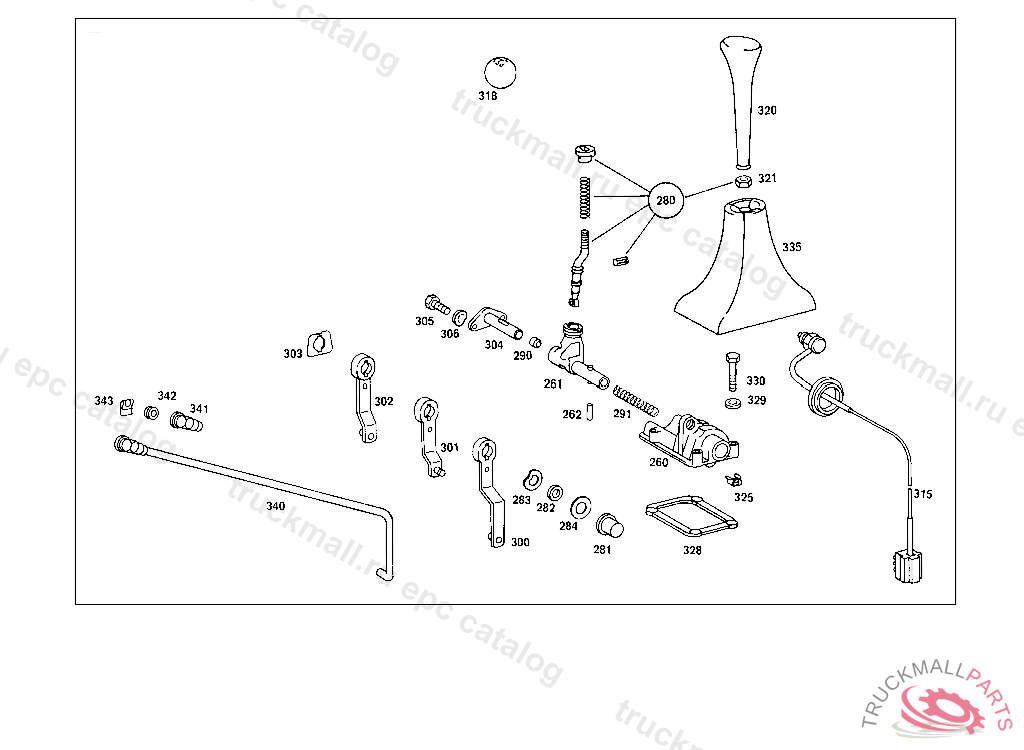

261
SHIFTING TUBE , 114.005,007,015 105875 114.010 075500 114.021 008262 114.022 020445 115.000,002,010 095742 115.015 116805 115.100,102,110 246475 115.115 123400
262
PIN
280
SHIFT LEVER RANGE OF DELIVERY, 086 007514 093 011073 183 019924 190 025455 280 003576 283 009003 003 110321 007 099338 102,103 307215 105 267871 200 085536
281
BUSHING
282
WASHER
283
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
284
SPACER WASHER
290
BUSHING
291
SPRING SHIFTING TUBE
300
SHIFT LEVER REVERSE SPEED
301
SHIFT LEVER 1ST AND 2ND SPEED, 102,103 219674 ALSO INSTALLED ON 219935,219936,220064,220096,220332. EXCEPT FOR 219267,219275,219283,219285,219287,219293,219296,219301,219302,219304,219307,219309,219313,219317, 219319-219321,219325,219326,219328-219331,219333,219335,219336,219338,219339,219341,219342,219346, 219347,219350,219351,219354,219357-219361,219363-219380,219384,219385,219387-219389,219391-219395, 219397,219399,219400,219402-219409,219411-219415,219417-219422,219424-219426,219428-219435,219437, 219439-219447,219449-219453,219459-219471,219473-219483,219485-219499,219502-219516,219520-219599, 219601-219673. 183 014172 ALSO INSTALLED ON 014174-014198,014203,014209,014215,014221,014225,014231,014407,014486,014630.
302
SHIFT LEVER 3RD AND 4TH SPEED, 102,103 219674 ALSO INSTALLED ON 219935,219936,220064,220096,220332. EXCEPT FOR 219267,219275,219283,219285,219287,219293,219296,219301,219302,219304,219307,219309,219313,219317, 219319-219321,219325,219326,219328-219331,219333,219335,219336,219338,219339,219341,219342,219346, 219347,219350,219351,219354,219357-219361,219363-219380,219384,219385,219387-219389,219391-219395, 219397,219399,219400,219402-219409,219411-219415,219417-219422,219424-219426,219428-219435,219437, 219439-219447,219449-219453,219459-219471,219473-219483,219485-219499,219502-219516,219520-219599, 219601-219673. 183 014172 ALSO INSTALLED ON 014174-014198,014203,014209,014215,014221,014225,014231,014407,014486,014630.
303
WASHER
304
GUIDE
305
SCREW COVER PLATE TO BRACKET
306
SPRING WASHER LICENSE PLATE TO BRACKET
315
SWITCH , 114.015 200000 114.011,023 100000
318
KNOB
320
HANDLE
321
NUT
325
NUT RETAINER , Replaced By: A0019906791
325
NUT RETAINER REGULATOR AND CUT-OUT, FOR VEHICLES HAVING LOW CAB 344 ON CAB 344
328
GASKET
329
WASHER COMPRESSED AIR LINE TO BRACKET
329
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
330
SCREW SOLENOID VALVE TO TRANSMISSION CASE TOP COVER M 6X32,002,003,006-009 4 263014-4 422632,034,134 4 276784-4 422632
335
BOOT
340
SHIFTING ROD
341
END PIECE
342
BUSHING
342
BUSHING FROM LEVER TO VALVE BODY ASSEMBLY
343
LOCK
999
SHIFT CASE , 114.005,007,015 026900 114.010 026248 114.021 000235 114.022 000031 115.000,002,010 028514 115.015 025820 115.100,102,110 062168 115.115 028582, Replaced By: A0002600972, +001A1152600538
999
SHIFT CASE , 108.016 079491 108.018,019 085595 108.057,058 002415 109.016,111.024,025 UNTIL PRODUCTION STOP 109.056 007192 111.026,027 004403, Replaced By: A0002600972, +001A1155404009
999
PLATE , 108.016 079491 108.018,019 085595 108.057,058 002415 109.016,111.024,025 UNTIL PRODUCTION STOP 109.056 007192 111.026,027 004403, Replaced By: A0005420239, +001A1155404009
999
LAMP SOCKET
999
SWITCH
999
BALL SOCKET
999
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
999
BALL BEARING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
999
NEEDLE BEARING , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359 OPTIONAL WITH 004 981 05 10,003 981 08 10,003 981 09 10
999
NEEDLE BEARING , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359 OPTIONAL WITH 004 981 05 10,003 981 03 10,003 981 09 10
999
NEEDLE BEARING , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359 OPTIONAL WITH 004 981 05 10,003 981 03 10,003 981 08 10
999
NEEDLE BEARING , Replaced By: A0059815610
999
NEEDLE BEARING , Replaced By: A0059815610
999
NEEDLE BEARING , Replaced By: A0059815410
999
NEEDLE BEARING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
999
SEAL RING , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
KNOB DARK GRAPHITE GREY
999
KNOB , UP TO CHASSIS: 000,002,010 007280 015 004403 100,102,103,110,112 017470 115 007978
999
SHIFT LEVER , FROM CHASSIS: 000,002,010 007281-056141 015 004404-060261 100,102,103,110,112 017471-139360 115 007979-065085, Replaced By: A1152604439, +001A1152670114, +001A1152680550, +001A1152680172, +001A1152691242, +001N007346005000
999
SCREW
999
SEAL RING
999
GUIDE PLATE , 114.005,007,015 026900 114.010 026248 114.021 000235 114.022 000031 115.000,002,010 028514 115.015 025820 115.100,102,110 062168 115.115 028582, Replaced By: A0002600972, +001A1152600538
999
SHAFT , 114.005,007,015 026900 114.010 026248 114.021 000235 114.022 000031 115.000,002,010 028514 115.015 025820 115.100,102,110 062168 115.115 028582
999
SHIFT LEVER , Replaced By: A1232670410, +001A1262670123, +001A1152670597, +001A1269930120, +001N070616010003
999
SHIFT LEVER , Replaced By: A1152601639, +001A1262670110, +001A1152671850, +001A1232670097, +001N007346004010, +001N070616010003
999
SHIFT LEVER , Replaced By: A1232601139, +001A1262670110, +001A1232670097, +001A1152680950, +001N007346040010, +001N070616010003
999
GEAR (GEAR SET),CONSTANT, UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
999
SHIFT LEVER , FROM CHASSIS: 000,002,010 056142 015 060262 100,102,103,110,112 139361 115 065086 UP TO CHASSIS: LESS POWER STEERING 000,002,010 12/52 086674 015 12/52 101861 100,102,103,110,112 12/52 220489 115 12/52 109121 UP TO CHASSIS: WITH POWER STEERING 000,002,010 12/52 083150 015 12/52 097114 100,102,103,110,112 12/52 211905 115 12/52 104333, Replaced By: A1152604439, +001A1152681442, +001A1152680172
999
TRANSMISSION CASE COVER , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359, Replaced By: A1152604713, +001A1152603873, +001A1152610166, +001A1152610080
999
SHIFT LEVER , FROM CHASSIS: LESS POWER STEERING 000,002,010 10/50 085059 015 10/50 099480 100,102,103,110,112 10/50 216012 115 10/50 106668 FROM CHASSIS: WITH POWER STEERING 000,002,010 10/50 086622 015 10/50 101629 100,102,103,110,112 10/50 220100 115 10/50 108872 FROM CHASSIS: LESS POWER STEERING 000,002,010 12/52 086675 015 12/52 101862 100,102,103,110,112 12/52 220490 115 12/52 109122 FROM CHASSIS: WITH POWER STEERING 000,002,010 12/52 083151 015 12/52 097115 100,102,103,110,112 12/52 211906 115 12/52 104334 UP TO CHASSIS: 000,002,010 095001 015 115530 100,102,103,110,112 244262 115 122227, Replaced By: A1152604439, +001A1152680550, +001A1152680172, +001N007346005000
999
END PIECE , Replaced By: A1152601353, +001A1269930120
999
TRANSMISSION CASE COVER , Replaced By: A1152603713, +001A1152603873, +001A1152610166
999
SHIFTING ROD
999
SHIFT LEVER , Replaced By: A1152603339, +001A1152671650, +001N007346005000
999
SHIFTING ROD
999
SHIFT LEVER , Replaced By: A1152603639, +001A1152603839, +001A1152604239
999
SHIFT LEVER , Replaced By: A1152603739, +001A1152603839, +001A1152604339
999
SHIFTING ROD , UP TO CHASSIS: 015,115 200000 100,102,103,110,112 400000
999
LEVER , FROM CHASSIS: 010 082591 110 210766 UP TO CHASSIS: 010,110 UNTIL PRODUCTION STOP 117:027694, Replaced By: A1152603839, +001A1152604239, +001A1152604339
999
SHIFTING ROD , INAPPLICABLE TO 115.005,017,105,107,117 115.000,002,010,100,102 UNTIL PRODUCTION STOP 115.015,115 200000 115.110 400000
999
DETENT , Replaced By: A1152603873, +001A0049815510
999
TRANSMISSION CASE COVER , Replaced By: A1152603713, +001A1152603873
999
SHIFT LEVER , FROM CHASSIS: 000,002,010 095002 015 115531 100,102,103,110,112 244263 115 122228 UP TO CHASSIS: 000,002,010 117631 015 154063 100,102,103,110,112 315098 115 161611, Replaced By: A1152604439, +001A1152670114, +001A1152680172
999
SHIFT LEVER , 114.010 026227 114.005,007,015 026874 114.021 000229 114.022 000030 115.000,002,010 028495 115.015 025798 115.100,102,110 062109 115.115 028577
999
SUPPORT FRONT
999
SHIFT LEVER , Replaced By: A1152604339, +001A1152604139, +001A1152604239
999
SHIFT LEVER , Replaced By: A1152604239, +001A1152604139, +001A1152604339
999
SHIFT LEVER , Replaced By: A1152604139, +001A1152604239, +001A1152604339
999
SHIFTING TUBE , UP TP CHASSIS: 000,002,010 053749 015 057119 100,102,103,110,112 132390 115 061802, Replaced By: A1152606682, +001A1099900238, +001N000934005004
999
TRANSMISSION CASE COVER
999
TRANSMISSION , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SHIFTING TUBE , 114.005,007,015 105874 114.010 075499 114.021 008261 114.022 020444 115.000,002,010 095741 115.015 116804 115.100,102,110 246474 115.115 123399, Replaced By: A1152607282, +001A1152672250, +001A1159939303
999
SHIFTING TUBE , UP TP CHASSIS: 000,002,010 053749 015 057119 100,102,103,110,112 132390 115 061802, Replaced By: A1152606682, +001A1099900238, +001N000934005004
999
SHIFTING TUBE , UP TP CHASSIS: 000,002,010 053749 015 057119 100,102,103,110,112 132390 115 061802, Replaced By: A1152606682, +001A1099900238, +001N000934005004
999
SHIFTING TUBE , 114.005,007,015 105874 114.010 075499 114.021 008261 114.022 020444 115.000,002,010 095741 115.015 116804 115.100,102,110 246474 115.115 123399, Replaced By: A1152607282, +001A1152672250, +001A1159939303
999
SHIFTING TUBE , 114.005,007,015 105874 114.010 075499 114.021 008261 114.022 020444 115.000,002,010 095741 115.015 116804 115.100,102,110 246474 115.115 123399, Replaced By: A1152607282, +001A1152672250, +001A1159939303
999
SHIFTING TUBE , FROM CHASSIS: 000,002,010 053750 015 057120 100,102,103,110,112 132391 115 061803 005,017,105,107,108,117,119 000001
999
LEVER , Replaced By: A1152603839, +001A1152604239, +001A1152604339
999
LEVER , Replaced By: A1152603639, +001A1152603839, +001A1152604239
999
LEVER , Replaced By: A1152603739, +001A1152603839, +001A1152604339
999
LEVER , Replaced By: A1152603839, +001A1152604239, +001A1152604339
999
LEVER , Replaced By: A1152603639, +001A1152603839, +001A1152604239
999
LEVER , Replaced By: A1152603739, +001A1152603839, +001A1152604339
999
THRUST WASHER AS REQUIRED 3.8 MM, UP TO TRANSMISSION: 000,002,010,015 005985 100,102,103,110,112,115 000036
999
THRUST WASHER AS REQUIRED 3.9 MM, UP TO TRANSMISSION: 000,002,010,015 005985 100,102,103,110,112,115 000036
999
THRUST WASHER AS REQUIRED 4.0 MM, UP TO TRANSMISSION: 000,002,010,015 005985 100,102,103,110,112,115 000036
999
THRUST WASHER AS REQUIRED 4.1 MM, UP TO TRANSMISSION: 000,002,010,015 005985 100,102,103,110,112,115 000036
999
THRUST WASHER AS REQUIRED 4.2 MM, UP TO TRANSMISSION: 000,002,010,015 005985 100,102,103,110,112,115 000036
999
THRUST WASHER 4.0 MM
999
MAIN SHAFT , UP TO TRANSMISSION: 000,002,010,015 005985 100,102,103,110,112,115 000036, Replaced By: A1152621505, +001A1152622562, +001A1152622662, +001A1152622762, +001A1152622862, +001A1152622962, +001A1239900060
999
MAIN SHAFT , UP TO TRANSMISSION: 000,002,010,015 005985 100,102,103,110,112,115 000036, Replaced By: A1152621505, +001A1152622562, +001A1152622662, +001A1152622762, +001A1152622862, +001A1152622962, +001A1239900060
999
SYNCHRONIZER BODY , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
999
MAIN SHAFT , FROM TRANSMISSION: 000,002,010,015 005986 100,102,103,110,112,115 000037 UP TO CHASSIS: 000,002,010 039284 015 038199 100,102,103,110,112 090463 115 041377, Replaced By: A1152621505, +001A1239900060
999
GEAR , Replaced By: A1152621611, +001A1152623662
999
SYNCHRONIZER BODY , NO LONGER AVAILABLE
999
SLIDING COLLAR , NO LONGER AVAILABLE
999
GEAR 1ST SPEED, FROM CHASSIS: 000,002,010 098306 115.015 121866 100,102,103,110,112 255529 115 128219 UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
THRUST WASHER AS REQUIRED 3.9 MM, FROM TRANSMISSION: 000,002,010,015 005986 100,102,103,110,112,115 000037 UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
THRUST WASHER AS REQUIRED 4.0 MM, FROM TRANSMISSION: 000,002,010,015 005986 100,102,103,110,112,115 000037 UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
THRUST WASHER AS REQUIRED 4.1 MM, FROM TRANSMISSION: 000,002,010,015 005986 100,102,103,110,112,115 000037 UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
THRUST WASHER AS REQUIRED 4.2 MM, FROM TRANSMISSION: 000,002,010,015 005986 100,102,103,110,112,115 000037 UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
SYNCHRONIZER RING 1ST AND 2ND SPEED, UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
SYNCHRONIZER RING 3RD AND 4TH SPEED, UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
REVERSE IDLER SHAFT , FROM TRANSMISSION: 023 496842 UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
999
COUNTERSHAFT , FROM TRANSMISSION: 023 669558 UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
999
REVERSE IDLER GEAR , FROM TRANSMISSION: 023 669558 UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
999
CAP
999
BOOT , 114.010 058796 114.011 003269 114.015 071505 114.021 005601 114.022 013880
999
YOKE , Replaced By: A1152601353, +001A1269930120
999
SHIFT LEVER , Replaced By: A1152601639, +001A1262670110, +001A1152671850, +001A1232670097, +001N007346004010, +001N070616010003
999
SHIFT LEVER , 114.010 058796 114.011 003269 114.015 071505 114.021 005601 114.022 013880, Replaced By: A1152600939, +001A1152671310, +001A1152671850, +001A1232670097, +001N007346004010, +001N070616010003
999
SHIFT LEVER , Replaced By: A1232601139, +001A1262670110, +001A1232670097, +001A1152680950, +001N007346004010, +001N070616010003
999
BUSHING , 114.005,007,015 105874 114.010 075499 114.021 008261 114.022 020444 115.000,002,010 095741 115.015 116804 115.100,102,110 246474 115.115 123399
999
BUSHING , 114.005,007,015 105874 114.010 075499 114.021 008261 114.022 020444 115.000,002,010 095741 115.015 116804 115.100,102,110 246474 115.115 123399
999
BEARING , Replaced By: A1152673505, +001A1262670123, +001A1269930120
999
BUSHING , 003 110321 007 099338 086 007514 093 011074 105 267871 190 025455
999
BUSHING , UP TO CHASSIS: 000,002,010 056141 015 060261 100,102,103,110,112 139360 115 065085 FROM CHASSIS: 000,002,010 095002 015 115531 100,102,103,110,112 244263 115 122228
999
KNOB , FROM CHASSIS: 000,002,010 007281 015 004404 100,102,103,110,112 017471 115 007979 UP TO CHASSIS: LESS POWER STEERING 000,002,010 12/52 086674 015 12/52 101861 100,102,103,110,112 12/52 220489 115 12/52 109121 UP TO CHASSIS: WITH POWER STEERING 000,002,010 12/52 083150 015 12/52 097114 100,102,103,110,112 12/52 211905 115 12/52 104333 UP TO CHASSIS: LESS POWER STEERING 000,002,010 22/62 087646 015 22/62 103161 100,102,103,110,112 22/62 222275 115 22/62 110304 UP TO CHASSIS: WITH POWER STEERING 000,002,010 22/62 086763 015 22/62 101811 100,102,103,110,112 22/62 220494 115 22/62 109109
999
KNOB , Replaced By: A1082680042
999
BUSHING , 011483
999
BUSHING , FROM CHASSIS: 000,002,010 056142 015 060262 100,102,103,110,112 139361 115 065086 UP TO CHASSIS: 000,002,010 095001 015 115530 100,102,103,110,112 244262 115 122227
999
SHIFT LEVER , UP TO CHASSIS: 000,002,010 007280 015 004403 100,102,103,110,112 017470 115 007978, Replaced By: A1152604439, +001A1152670114, +001A1152680550, +001A1152680172, +001A1152691242, +001N007346005000
999
SHIFT LEVER , UP TO CHASSIS: 000,002,010 007280 015 004403 100,102,103,110,112 017470 115 007978, Replaced By: A1152604539, +001A1152670114, +001A1152681442, +001A1152680750, +001A1152680172, +001N007346005000
999
SHIFT LEVER , FROM CHASSIS: 000,002,010 007281-056141 015 004404-060261 100,102,103,110,112 017471-139360 115 007979-065085, Replaced By: A1152604439, +001A1152670114, +001A1152680550, +001A1152680172, +001A1152691242, +001N007346005000
999
KNOB
999
NUT , UP TO CHASSIS: 007,008,015,017 219402 011 104137 060 107833 062 104360
999
CABLE HARNESS
999
SCREW , 003878
999
WASHER , Replaced By: A0039906840
999
BUSHING , 114.005,007,015 037181 114.010 033492 114.021 001931 114.022 002382 115.000,002,010 037475 115.015 035971 115.100,102,110 085311 115.115 039087
999
SLEEVE BRACKET TO PEDAL BEARING BRACKET
999
BUSHING GEAR SELECTOR LEVER
999
SPRING SHIFTING TUBE
999
SNAP RING AS REQUIRED 2.18 MM, UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
SNAP RING AS REQUIRED 2.1 MM, UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
GASKET
999
SPACER WASHER 0.2 MM
999
SPACER WASHER 0.3 MM
999
SNAP RING , Replaced By: A1369940935
999
SNAP RING 2.05 MM
999
SPRING
999
SPACER WASHER 0.25 MM
999
SPACER WASHER 0.50 MM
999
SPRING WASHER SHIFTING ROD TO BRACKET
999
SCREW AT SIDE MEMBER,OUTSIDE
999
NUT TACHOGRAPH TO BRACKET
999
CLAMPING SLEEVE
999
CLAMPING SLEEVE , Replaced By: N001481005017
999
NUT
