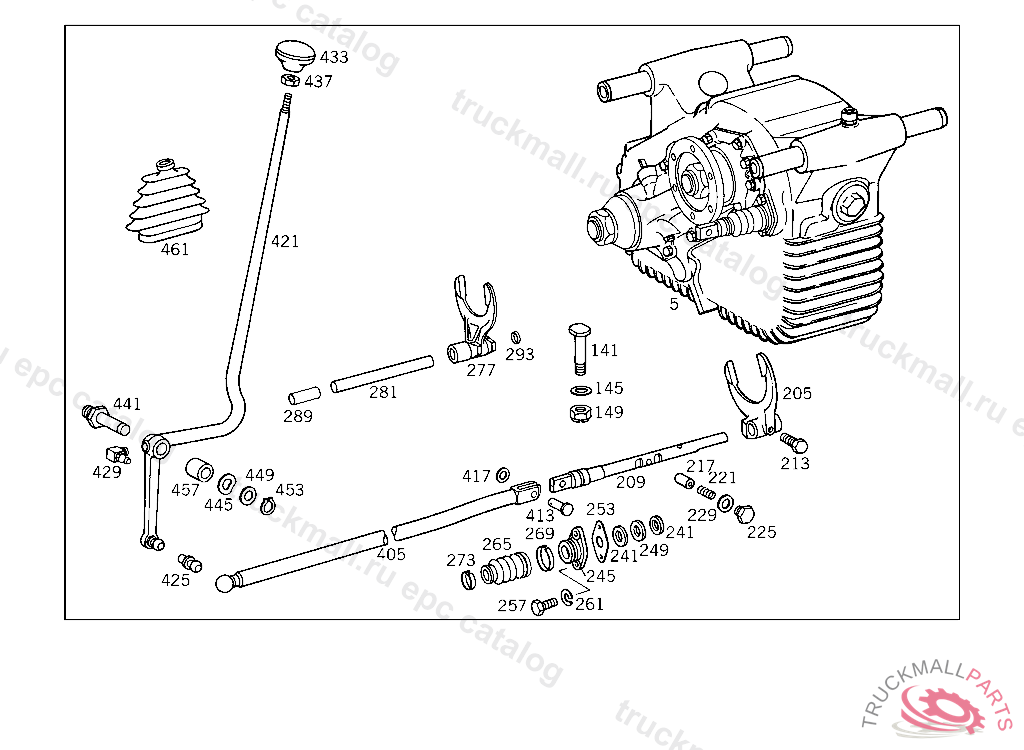

Поз.
Артикул
Описание
5
TRANSFER CASE
141
PIVOT PIN SHIFT LEVER TO CASE
145
WASHER SUPPORT TO FRAME,D 127794
149
NUT , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
205
SHIFTING FORK TOP
205
SHIFTING FORK , Replaced By: A3832840401
209
SHIFTING ROD
213
SCREW SHIFTING FORK TO SHIFTING ROD
217
INTERLOCK PIN
221
SPRING
225
SCREW PLUG
229
SEAL RING FROM FUEL TANK TO FUEL TANK
241
SEAL RING SHIFTING ROD
245
FLANGE
249
SPACER RING
253
GASKET
257
SCREW CLAMP TO BRACKET
261
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
265
BOOT SHIFTING ROD
269
SNAP RING BOOT TO FLANGE
273
SNAP RING BOOT TO SHIFTING ROD
277
SHIFTING FORK BOTTOM
281
SHIFTING SHAFT
289
SPACER TUBE FRONT
293
SPACER TUBE REAR
413
PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
417
WASHER GROUND CABLE
421
SHIFT LEVER
421
SHIFT LEVER , Replaced By: A3442807245
425
BALL PIVOT , Replaced By: A3449917020
425
BALL PIVOT
429
GREASE NIPPLE
429
GREASE NIPPLE
433
KNOB , Replaced By: A3442807046
437
NUT SHIFT LEVER
441
PIN ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
445
WASHER SHIFT LEVER TO PIVOT PIN
449
WASHER BOX COVER
453
LOCK RING SHIFT LEVER TO PIVOT PIN
457
SPACER TUBE LEVER TO TRANSMISSION CASE
461
BOOT SHIFT LEVER
999
SCREW , Replaced By: N000960012335
999
SCREW BRACKET TO BUMPER STRUT
999
SCREW TRANSFER CASE TO FRAME M 12X1.5X95
999
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
999
SCREW CONNECTOR TO CAB M6X8
999
SPRING WASHER CABLE TO ALTERNATOR
999
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
999
COTTER PIN SHIFT LEVER TO CASE
999
COTTER PIN , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
SHIFTING ROD FROM SHIFT LEVER TO TRANSFER CASE
999
SHIFTING ROD FROM SHIFT LEVER TO TRANSFER CASE, MODELS 345.401,402,403 UP TO CHASSIS 647876
999
SHIFTING ROD FROM SHIFT LEVER TO TRANSFER CASE, MODELS 345.401,402,403 UP TO CHASSIS 647876
999
RUBBER MOUNTING TRANSFER CASE TO FRAME
999
WASHER TRANSFER CASE TO FRAME
999
SHIM TRANSFER CASE TO CROSS MEMBER
999
BUSHING
999
BEARING TRANSFER CASE TO FRAME
999
CAP
999
LOCK , Replaced By: A3449947041
999
LOCK TRANSFER CASE TO FRAME
