Поз.
Артикул
Описание

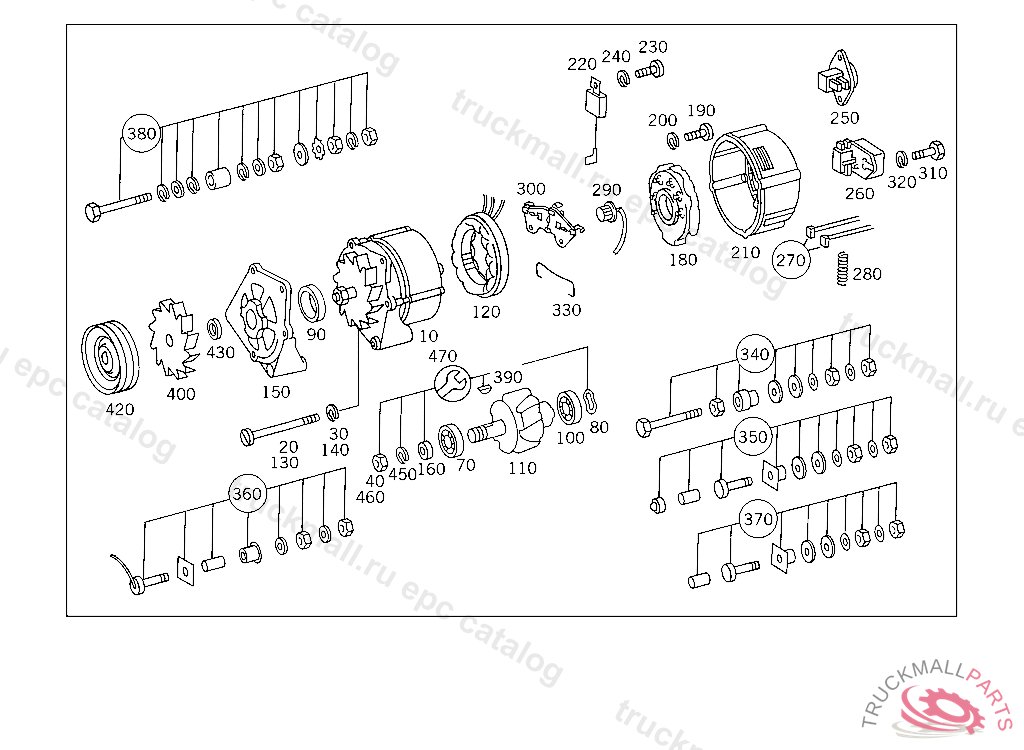

10
ALTERNATOR28V 35A, WITH TERMIANL "W"
10
ALTERNATOR14V 35A, MODEL 343.919.000 UP TO ENGINE 154149,MODEL 344.919.000 UP TO ENGINE 822956
10
ALTERNATOR WITH REGULATOR INCORPORATED AND PULLEY 14V 35A, MODEL 343.919.000 FROM ENGINE 154150,MODEL 344.919.000 FROM ENGINE 822957
10
ALTERNATOR , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 128099, Replaced By: A3441547101
10
ALTERNATOR , Replaced By: A3441508050
10
ALTERNATOR , Replaced By: A3441507450
10
ALTERNATOR , Replaced By: A3441507850
10
ALTERNATOR , Replaced By: A3761507750
10
ALTERNATOR , Replaced By: A3761507850
10
ALTERNATOR , Replaced By: A3441507150
10
ALTERNATOR , LESS TERMIANL "W", Replaced By: A3451547101, +001A3505477102
10
ALTERNATOR , Replaced By: A3441507350
20
SCREW , Replaced By: A0009909220
20
SCREW , Replaced By: A0009908321
20
SCREW , MODEL 343.919.000 UP TO ENGINE 154149,MODEL 344.919.000 UP TO ENGINE 822956
20
SCREWTO 344 154 72 01,75 01
20
SCREWTO 345 154 71 01
20
SCREW ,154149
20
SCREWTO 344 150 71 50,80 50,344 154 75 01
30
LOCK WASHERTO 376 150 74 50
30
LOCK WASHERTO 344 150 73 50
40
NUT
70
BALL BEARING FRONT TO 345 150 70 50,345 154 71 01
70
TAPERED ROLLER BEARINGTO 344 150 71 50,73 50,80 50
70
GROOVED BALL BEARING FRONT
70
TAPERED ROLLER BEARING FRONT TO 344 154 71 01,72 01,75 01, NOT USED
70
BALL BEARING , Replaced By: N000625900182
70
GROOVED BALL BEARING , Replaced By: N000625436303
80
SEAL RINGTO 005 154 34 02
90
RINGTO 376 150 74 50
100
BALL BEARINGTO 005 154 34 02
100
BALL BEARING SLIP RING SIDE TO 004 154 25 02
100
BALL BEARINGTO 344 154 71 02
100
BALL BEARING , Replaced By: A0049811825
100
BALL BEARING , Replaced By: A0049811925
100
TAPERED ROLLER BEARING , Replaced By: A0049811825
110
ROTOR , Replaced By: A0001545015
110
ROTOR , Replaced By: A0001546015
110
ROTOR
110
ROTORTO 344 150 71 50,80 50,344 154 75 01
110
ROTORTO 345 150 70 50
110
ROTORTO 345 154 71 01
120
COILTO 345 154 71 01
120
COILTO 345 150 70 50
120
EXCITER COIL
120
COILTO 344 150 74 50,78 50
120
COIL , Replaced By: A0001547125
120
COIL , Replaced By: A0001546725
120
COIL , Replaced By: A0001548825
120
EXCITER COIL , Replaced By: A0001517155
120
EXCITER COIL , Replaced By: A0001518855
130
SCREW
140
LOCK WASHER
150
COVERTO 344 150 71 50,80 50,344 154 75 01
150
BEARING COVER
150
CONNECTOR ,154149
150
CONNECTOR FRONT TO 345 154 71 01
160
BEARINGTO 345 154 71 01
180
RECTIFIERTO 376 150 78 50
180
RECTIFIER
180
RECTIFIERTO 344 150 73 50
190
SCREW
190
SCREWTO 376 150 80 50
200
LOCK WASHERTO 344 150 74 50,78 50
210
COVERTO 376 150 78 50,154150
210
COVERTO 344 150 71 50,80 50,344 154 75 01
220
CONDENSERTO 345 154 71 01
230
SCREW CONDENSER TO ALTERNATOR
240
LOCK WASHERTO 376 150 74 50
250
BRUSH HOLDERTO 344 154 71 02
250
BRUSH HOLDERTO 345 150 70 50
260
REGULATOR AND CUT-OUTTO 344 150 73 50
260
REGULATOR AND CUT-OUTTO 343 150 73 50
270
REPAIR KITTO 344 154 71 02
270
CARBON BRUSH SETTO 344 154 71 02
270
CARBON BRUSH SET CARBON BRUSHES TO 345 154 71 01,345 154 70 50
270
CARBON BRUSH SETTO 343 150 73 50
270
CARBON BRUSH SETTO 366 150 07 50, 376 150 83 50
270
CARBON BRUSH SET , Replaced By: A0001549514
270
CARBON BRUSH SET , Replaced By: A0001549814
270
CARBON BRUSH SET , Replaced By: A0001547614
280
SPRINGTO 004 154 75 02
280
SPRING , Replaced By: A0001541393
290
DIODE POS.
290
DIODE NEG. TO 344 154 71 01,344 154 72 01, MODEL 343.919.000 UP TO ENGINE 154149,MODEL 344.919.000 UP TO ENGINE 822956
290
DIODE POS.
290
DIODE POS., TO 003 154 26 02
290
DIODE , Replaced By: A0015481018
290
DIODE , Replaced By: A0005489818
290
DIODE , Replaced By: A0005485018
290
DIODE , Replaced By: A0015481118
290
DIODE , Replaced By: A0005487818
290
DIODE , Replaced By: A0005489818
290
DIODE , Replaced By: A0005485018
300
DIODE , Replaced By: A0005486518
300
DIODE CARRIER COMPLETE
310
SCREWTO 344 150 73 50
320
LOCK WASHERTO 344 150 74 50,78 50
330
SPRINGTO 344 154 71 02
330
SPRING
340
INSULATING PART PARTS KIT B+, MODEL 343.919.000 FROM ENGINE 154150,MODEL 344.919.000 FROM ENGINE 822957
340
INSULATOR PARTS KIT B+,TO 376 150 78 50, MODEL 343.919.000 FROM ENGINE 154150,MODEL 344.919.000 FROM ENGINE 822957
350
INSULATING PART PARTS KIT
360
MOUNTING KITTO A 345 154 71 01
370
INSULATING PART , OM 352 FROM ENGINE 823237,OM 352 A FROM ENGINE 822957
380
REPAIR KITTO 345 154 71 01
390
WOODRUFF KEY POWER STEERING PUMP
400
FAN , Replaced By: A3431557018
400
FAN , Replaced By: A3431557118
400
FAN , Replaced By: A3431507074
400
FAN WITH PULLEY
400
FANTO 344 150 74 50
420
PULLEY
420
PULLEYTO 344 150 73 50
430
SEAL RINGTO 376 150 78 50
450
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
450
LOCK WASHER SUPPORT TO SIDE MEMBER
450
LOCK WASHER , Replaced By: N912004014100
460
NUT , Replaced By: N000934014003
460
NUT TRAILER COUPLING TO FRAME
460
NUT BRACKET TO SIDE MEMBER
470
REPAIR KIT ARMATURE MOUNTING
470
SCREW. ARMATURE PARTS KIT TO 376 150 78 50
470
REPAIR KIT
