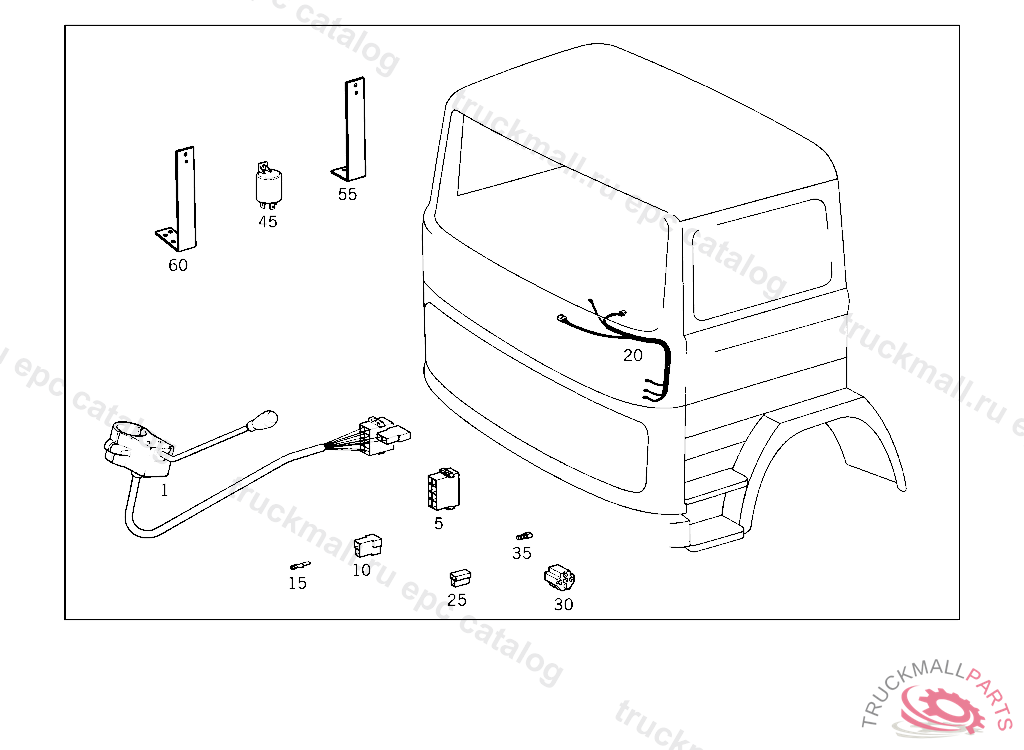

Поз.
Артикул
Описание
1
SWITCH,AUTOMATIC STEERING COLUMN MOUNTED
1
SWITCH,AUTOMATIC , Replaced By: A0035458324
5
PLUG HOUSING 8-POLE
10
PIN BUSHING HOUSING. PLUG HOUSING FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH
15
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
20
ELECTRIC CABLE FROM FUSE TO CONTACTOR, 674502
20
ELECTRIC CABLE FROM FUSE TO CONTACTOR, 663387
25
PIN BUSHING HOUSING BIPOLAR
30
PIN BUSHING HOUSING 5-POLE
35
PIN BUSHING , Replaced By: A0075458226
35
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
45
RELAY , Replaced By: A0015424719
45
RELAY , Replaced By: A0025420719
45
RELAY12 V, 663388
55
BRACKET , 663387
55
BRACKET , 663388-674501
60
BRACKET , 663388-674501
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT , Replaced By: N304032005005
999
SCREW APPARATUS PLATE TO CAB,K 062140
999
SCREW , Replaced By: N007985006580
999
SCREW , Replaced By: N000000001145
999
SCREW CONTROL UNIT TO CAB
999
SHEET METAL SCREW , Replaced By: N000000000459
999
SHEET METAL SCREW , Replaced By: N007981004339
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
999
SCREWM 5X20
999
NUT BALL PIVOT TO LEVER
999
SCREW BRACKET TO COVERING
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
999
ELECTRIC CABLE FROM BLINKER/DIMMER SWITCH FUSE TO LIGHT SWITCH FUSE BOX
999
ELECTRIC CABLE FROM FUSE TO CONTACTOR, 663388-674501
999
ELECTRIC CABLE FROM FUSE TO CONTACTOR, 663388-674501
999
CABLE HARNESS , 663387
999
CABLE HARNESS , 663387
999
ELECTRIC CABLE FROM FUSE TO CONTACTOR, 663387
999
ELECTRIC CABLE FROM FUSE TO CONTACTOR, 674502
999
ELECTRIC CABLE FROM FUSE TO CONTACTOR, 663387
999
CABLE HARNESS , 663387
999
SWITCH,AUTOMATIC , Replaced By: A3455457124
999
SWITCH,AUTOMATIC , Replaced By: A0035458124
999
RELAY
