Поз.
Артикул
Описание

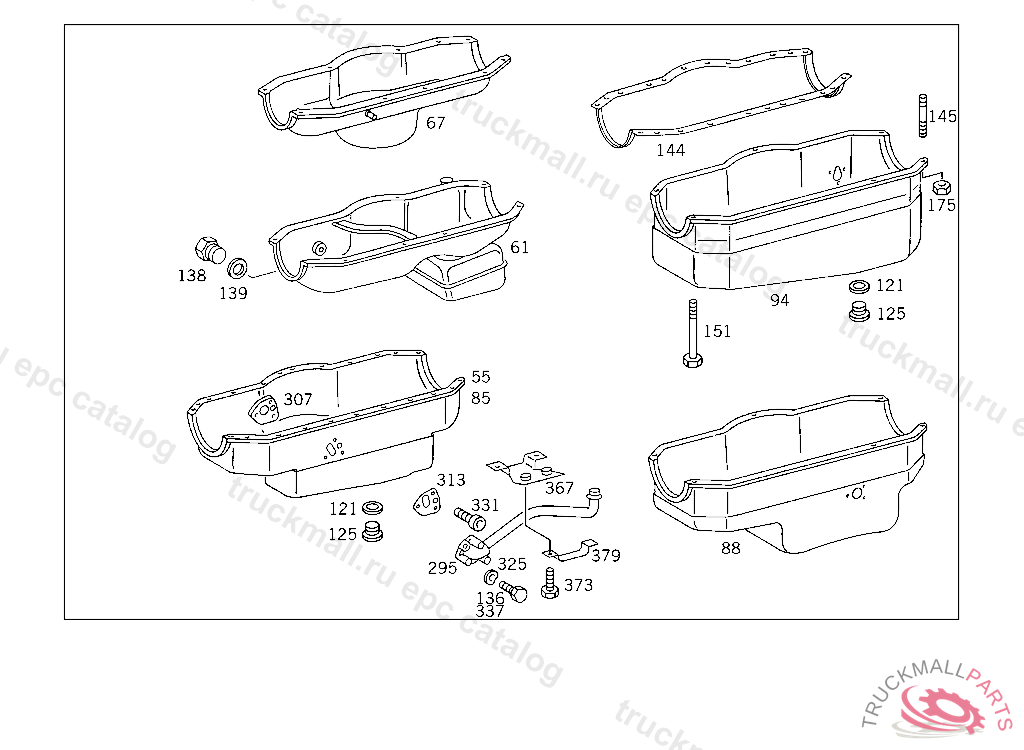

55
OIL PAN
55
OIL PAN
55
OIL PAN
55
OIL PAN
61
OIL PAN
67
OIL PAN
67
OIL PAN
67
OIL PAN
85
OIL PAN
85
OIL PAN
85
OIL PAN WITH OIL RETURN CONNECTION FLANGE,310563
88
OIL PAN
88
OIL PAN
88
OIL PAN
88
OIL PAN
88
OIL PAN
88
OIL PAN
94
OIL PAN
94
OIL PAN
94
OIL PAN
94
OIL PAN
121
SEAL RING OIL DRAIN
121
SEAL RING LINE CONNECTION
121
SEAL RING
121
SEAL RING OIL DRAIN 26X34 MM
121
SEAL RING VALVE TO VALVE,K 025179
125
SCREW PLUG OIL DRAIN
125
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
125
SCREW PLUG
125
SCREW PLUG , UP TO ENGINE 921 001982 927 000355 928 000589 929 000007
125
SCREW PLUG OIL DRAIN
125
SCREW PLUG , Replaced By: A4039970230
136
SCREW , Replaced By: N304017008030
136
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
138
SEAL RING LINE CONNECTION
138
SEAL RING
139
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
139
SCREW PLUG FUEL TANK
139
SCREW PLUG , Replaced By: N007604014110
144
GASKET KIT , Replaced By: A3520102280
144
GASKET KIT OIL PAN
144
PART NAME MISSING OIL PAN
144
GASKET KIT , Replaced By: A3520101980
144
GASKET KIT. GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 996747YEAR OF MANUFACTURE 1990, Replaced By: A3660100680
144
GASKET KIT , Replaced By: A3660100780
144
GASKET KIT , NOT USED, Replaced By: A3660100880
144
GASKET KIT , Replaced By: A3520100580
144
GASKET KIT , NOT USED, Replaced By: A3520102480
144
GASKET KIT , Replaced By: A3520105827
144
GASKET KIT OIL PAN
144
GASKET KIT OIL PAN
144
GASKET OIL PAN
144
GASKET KIT , NOT USED
144
GASKET KIT OIL PAN
144
GASKET KIT OIL PAN
145
STUD BOLT OIL PAN TO CYLINDER CRANKCASE M 8X50
145
STUD BOLTM 8X45, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
145
STUD HEATING WATER CONNECTION TO CYLINDER HEAD
145
STUD OIL PAN TO CYLINDER CRANKCASE
151
SCREW INJECTION PUMP DRIVE TO TIMING CASE M 8X140
151
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
151
SCREWM 8X40
151
SCREW AIR COMPRESSOR LINE
151
SCREW
151
SCREW OIL PAN TO CYLINDER CRANKCASE
151
SCREW TRAILER CONTROL VALVE TO BRACKET,4 940459
151
SCREW , Replaced By: N304017008030
151
SCREW , Replaced By: N304017006031
175
NUT , Replaced By: N304032008006
175
NUT , Replaced By: N913004008001
175
NUT
175
NUT SHIFTING CYLINDER TO PIN,5 353829
175
NUT POWER CYLINDER
295
FLANGE TURBOCHARGER OIL RETURN
295
FLANGE OIL RETURN
295
FLANGE OIL RETURN
295
FLANGE TURBOCHARGER OIL RETURN,310563
295
FLANGE TURBOCHARGER OIL RETURN
295
FLANGE OIL RETURN
307
FLANGE
307
FLANGE
313
GASKET , Replaced By: A3660180380
313
GASKET FLANGE TO OIL PAN
325
LOCK WASHER BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
325
SPRING WASHER , Replaced By: N000137008212
325
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
325
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
331
SCREWROCKINGER,TYP 59 U150
331
SCREW
331
SCREW STOP TO BEARING BRACKET M 6X12,781683, 10/50820177, 20/60
331
SCREW EXHAUST PIPE TO MUFFLER AND TO HEATER UNIT M 8X55
331
SCREW
331
SCREW , Replaced By: A0009847929
331
SCREW , Replaced By: N000000000190
337
SCREW , Replaced By: N304017008030
337
SCREW , Replaced By: N304017008043
337
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
337
SCREW VALVE TO BRACKET M 8X55
367
BRACKET OIL RETURN LINE
367
BRACKET OIL RETURN LINE
373
SCREW LICENSE PLATE BRACKET
379
CLAMP
999
EXPANSION PLUG , Replaced By: A3520100019
999
GASKET , Replaced By: A1020180080
999
LOOM TIE
999
LOOM TIE , Replaced By: N916017020000
999
LOOM TIE , Replaced By: N916017025000
999
OIL FILLER NECK , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0220100764
999
OIL PAN , Replaced By: A3520103213
999
OIL FILLER NECK , Replaced By: A3520107164
999
COVER , Replaced By: A3520102535
999
SUCTION PIPE FROM SUCTION BASKET TO OIL PUMP, STAGE II,009993
999
GEAR DRIVING,STAGE II
999
GEAR DRIVEN,STAGE II,009993
999
COVER , Replaced By: A3521810620
999
CLAMP , Replaced By: N916016020204
999
SCREW PLUG OIL DRAIN
999
OIL PUMP , Replaced By: A3521804501
999
OIL PAN , Replaced By: A3520105813
999
PIPE OIL DIPSTICK
999
SUCTION PIPE , Replaced By: A3141801551
999
HOUSING , Replaced By: A3521810201, +001A3521810106, +001A3521810206
999
SCREW PLUG , Replaced By: N000908016000
999
SUCTION BASKET
999
OIL PUMP , Replaced By: A3521807001, +001A3521800855, +001A3121860080, +002N914010008008
999
SUCTION PIPE , Replaced By: A3521801251
999
OIL PUMP , Replaced By: A3521807001, +001A3521800855, +001A3121860080, +002N914010008008
999
OIL PUMP , Replaced By: A3521805901
999
OIL PUMP , Replaced By: A3141804601
999
OIL DIPSTICK
999
OIL PAN , Replaced By: A3520100313
999
OIL PAN , Replaced By: A3520109313
999
GUIDE TUBE OIL DIPSTICK
999
HOUSING ,000032, Replaced By: A3521807001, +001A3521800855, +001A3121860080, +002N914010008008
999
WASHER , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
SCREW PLUG , Replaced By: A4039970230
999
EXPANSION PLUG , Replaced By: A3660100019
999
GASKET KIT , Replaced By: A3520100880
999
CAP , Replaced By: A0000180702
999
FLANGE ,310563, Replaced By: A3520100176
999
GASKET KIT , Replaced By: A3520100880
999
OIL DIPSTICK , Replaced By: A3520102072
999
GASKET KIT OIL PAN
999
OIL PAN , Replaced By: A3520109213
999
GUIDE TUBE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 036669, Replaced By: A3520102566
999
GUIDE TUBE
999
FLANGE
999
GASKET KIT , Replaced By: A3520101980
999
OIL DIPSTICK , Replaced By: A3440107172
999
COVER LATERAL
999
OIL PAN , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 692088, Replaced By: A3960100513
999
GUIDE TUBE OIL DIPSTICK
999
OIL DIPSTICK
999
OIL DIPSTICK ,040790, Replaced By: A3520102872
999
OIL PAN ,352.900-000-000688, Replaced By: A3520104813, +001A3641800101
999
OIL DIPSTICK , Replaced By: A3520100074
999
FLANGE , Replaced By: A3520102576
999
FLANGE , Replaced By: A3520100976, +001N007603014102, +001N007604014400
999
GUIDE TUBE , Replaced By: A3520184216
999
GASKET KIT , NOT USED, Replaced By: A3520102480
999
OIL PAN , Replaced By: A3520108913
999
CRANKCASE , Replaced By: A3520104408, +001N000433013002
999
OIL PAN , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 688024, Replaced By: A3520104127
999
OIL PAN ,310563, Replaced By: A3520104013
999
OIL PAN ,352.900-000-000689
999
OIL PAN , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 021505, Replaced By: A3960100913
999
OIL PAN , Replaced By: A3520141502
999
OIL PAN , Replaced By: A3520106813
999
CRANKCASE , Replaced By: A3520106908
999
OIL PAN , Replaced By: A3520106613, +001A3520181044, +001A3520181744, +002A3660180380, +001A3529970472, +001N000912006004, +003N000931008246, +001N007603014400
999
OIL PAN , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 745402, Replaced By: A3520104727, +001A3521802451
999
OIL PAN , Replaced By: A3520107813
999
OIL PAN , Replaced By: A3520102127
999
OIL PAN , Replaced By: A3520104013
999
OIL PAN , Replaced By: A3520104013
999
OIL PAN
999
OIL PAN , Replaced By: A3520109113, +001A3520180244, +001A3520181744, +002A3660180380, +001A3529970472, +002N000912006004, +003N000912008012, +001N007603014400, +002N007980006003, +006N007980008003
999
OIL PAN , Replaced By: A3520104827, +001A1210140457
999
OIL PAN , Replaced By: A3520109513
999
OIL FILLER NECK , Replaced By: A3520109764
999
OIL BAFFLE , Replaced By: A3520140166
999
OIL PAN , Replaced By: A3520109813
999
FLANGE , Replaced By: A3520181744
999
GASKET , Replaced By: A3660180380
999
SUCTION PIPETO 352 180 43 01
999
CONNECTOR , Replaced By: A3521800284
999
SUCTION PIPE , Replaced By: A3141801551
999
BRACKET SUCTION PIPE TO OIL PUMP TO 352 180 43 01
999
SUCTION PIPE , Replaced By: A3521800451
999
SUCTION BASKET , Replaced By: A3521861201, +001A1101800355, +001N007993070100
999
SUCTION BASKET , Replaced By: A3521861301, +001A1101800355, +001N007993070100
999
SUCTION PIPE , Replaced By: A3521801355
999
SUCTION BASKET ,291735, Replaced By: A3521801055
999
SUCTION PIPE , Replaced By: A3521801451
999
SUCTION BASKET , Replaced By: A3521860801, +001A1101800155, +001A1101860007, +001N007993070100
999
SUCTION BASKET , Replaced By: A3521861201, +001A1101800355, +001N007993070100
999
OIL LINE TURBOCHARGER OIL RETURN,310563
999
SUCTION BASKET , Replaced By: A3521801651, +001A1101800355, +001N007993070100
999
SUCTION BASKET , Replaced By: A3521861301, +001A1101800355, +001N007993070100
999
SUCTION PIPE , Replaced By: A3521802651
