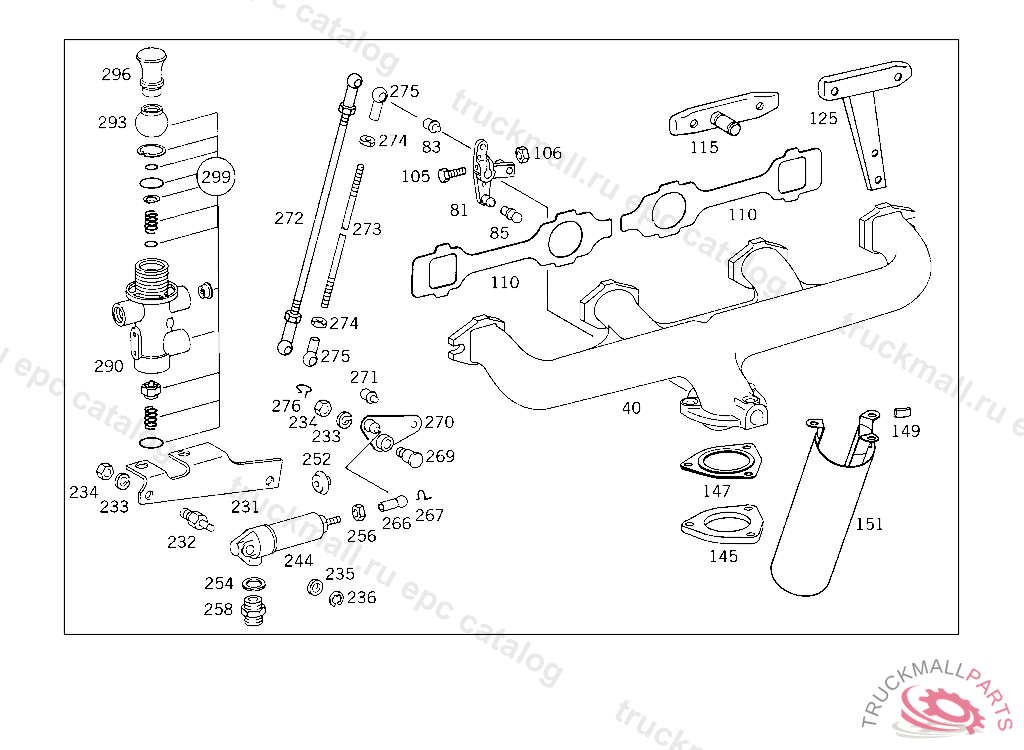

Поз.
Артикул
Описание
40
EXHAUST MANIFOLD , UP TO ENGINE 435602 ALSO INSTALLED ON 427634,429692,432512-432519,432957-432962,433029-433031,433078,433235-433237,433239-433241,433328, 433638-433641,433998-434000,434189-434191,434341-434343,434459-434461,434620-434623,434792-434795, 434888-434891.
81
LEVER THROTTLE VALVE
83
BALL PIVOT
85
BALL PIVOT
105
SCREW BOOT TO BATTERY CASE
106
NUT IN CASE OF SUBSEQUENT INSTALLATION
110
GASKET EXHAUST MANIFOLD
125
CLAMPING BRACKET EXHAUST MANIFOLD TO CYLINDER HEAD
231
BRACKET EXHAUST BRAKE COMPRESSED AIR CYLINDER
232
PIN COMPRESSED AIR CYLINDER TO BRACKET
233
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
234
NUT BATTERY CABLE
234
NUT BRACKET TO SUPPORT AND TO END PIECE
235
WASHER , Replaced By: N000125008443
235
WASHER EXHAUST MUFFLER TO STRAP
236
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
244
CYLINDER COMPRESSED AIR CYLINDER
252
SLEEVE
254
SEAL RING LINE CONNECTION
256
NUT
256
NUT , Replaced By: N304035008001
258
DOUBLE FITTING
266
BALL SOCKET ROD TO BALL PIVOT
267
SECURING CLIP. CIRCLIP
269
PIN LEVER TO BRACKET
270
LEVER EXHAUST BRAKE INTERMEDIATE LEVER
271
BALL PIVOT
272
ROD CONNECTOR TO EXHAUST MANIFOLD
273
PULL ROD , UP TO ENGINE 589246 YEAR OF MANUFACTURE 1980
274
NUT
274
NUT , Replaced By: N304035008001
275
BALL SOCKET ROD TO BALL PIVOT
276
SECURING CLIP. CIRCLIP
999
EXHAUST MANIFOLD , Replaced By: A3521402609, +001A3521401325, +001N000933005026, +001N000934005008
999
EXHAUST MANIFOLD WITH BUSHINGS
