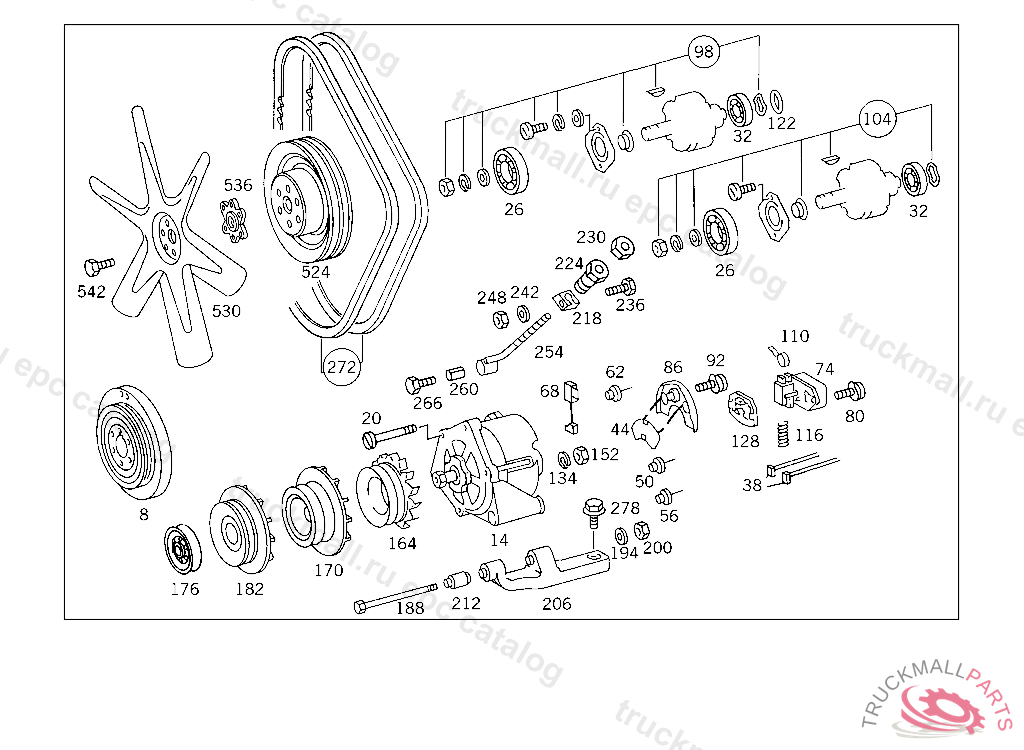

Поз.
Артикул
Описание
8
VIBRATION ABSORBER TWO-GROOVE
8
VIBRATION ABSORBER , Replaced By: A3520304203
8
VIBRATION ABSORBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 408069YEAR OF MANUFACTURE 1995, Replaced By: A3520305903
14
ALTERNATOR , Replaced By: A0071542702
14
ALTERNATOR , Replaced By: A0071542402
14
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0091540602
14
ALTERNATOR , Replaced By: A0091540702
14
ALTERNATOR , Replaced By: A0091541502
14
ALTERNATOR24 V /27 A, 74KW (100PS /DIN) 039271-043192 93-95KW (126-130PS /DIN) 086327-097403 110-124KW (150-168PS /DIN) 005864-006945
14
ALTERNATOR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
14
ALTERNATOR THREE-PHASE
14
ALTERNATOR
14
ALTERNATORN1 28V 10/55A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
20
SCREW
20
SCREWTO 005 154 11 02
20
SCREWTO 005 154 51 02
20
SCREW
20
SCREW
20
SCREW
20
SCREW HOUSING
20
SCREW , Replaced By: A0009908221
20
SCREW
20
SCREW , Replaced By: A0019900321
20
SCREW , Replaced By: A0009909721
20
SCREW , Replaced By: A0019900821
20
SCREW , Replaced By: A0009909821
20
SCREW , Replaced By: A0009908321
20
SCREW , Replaced By: A0009907921
20
SCREW , Replaced By: A0009907121
20
SCREW , Replaced By: A0019902120
20
SCREW , Replaced By: A0009907621
20
SCREW , Replaced By: A0009909621
26
BALL BEARING , Replaced By: A0059812225
26
BALL BEARING , Replaced By: A0079816625
26
GROOVED BALL BEARING , Replaced By: N000625436303
26
GROOVED BALL BEARING
26
BALL BEARINGTO 007 154 27 02, 009 154 07 02
26
GROOVED BALL BEARING
26
BALL BEARINGTO 005 154 32 02
32
GROOVED BALL BEARING , TO 002 154 38 02 TO 003 154 67 02 TO 002 154 46 02 TO 004 154 46 02
32
NEEDLE BEARING
32
BALL BEARINGTO 007 154 27 02, 009 154 07 02
32
GROOVED BALL BEARING SLIP RING SIDE TO 005 154 11 02
32
BALL BEARINGTO 005 154 34 02
32
BALL BEARING , Replaced By: A0089811225
32
GROOVED BALL BEARING
38
CARBON BRUSH SET , Replaced By: A0001548114
38
CARBON BRUSH SETTO 009 154 07 02
38
CARBON BRUSH SETTO 007 154 27 02
38
CARBON BRUSH SETTO 005 154 34 02
38
CARBON BRUSH SET
44
DIODE CARRIER COMPLETE
50
DIODE POS.
50
DIODE , Replaced By: A0005485018
56
DIODE , Replaced By: A0005489818
56
DIODE , Replaced By: A0015481118
56
DIODE NEG.
62
DIODE
62
DIODE EXCITER TO 003 154 33 02
62
DIODE , Replaced By: A0015481518
68
CONDENSER
68
CONDENSER
68
CONDENSER
74
REGULATOR AND CUT-OUTTO 005 154 34 02
74
REGULATORTO 007 154 27 02
74
REGULATOR AND CUT-OUT , Replaced By: A0021543906
74
REGULATOR AND CUT-OUT , Replaced By: A0001541705
74
REGULATOR AND CUT-OUT , Replaced By: A0001541705
80
SCREW , Replaced By: N007985004130
80
SCREW REGULATOR MOUNTING TO 009 154 07 02
80
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
86
RECTIFIER
86
RECTIFIERTO 009 154 15 02
86
RECTIFIERTO 005 154 34 02
86
RECTIFIER , Replaced By: A0001545716
86
RECTIFIER , Replaced By: A0001545816
86
RECTIFIER , Replaced By: A0001544716
86
RECTIFIERTO 005 154 51 02
86
RECTIFIER , Replaced By: A0011541516
86
RECTIFIER
86
RECTIFIER , Replaced By: A0011541416
86
RECTIFIER , Replaced By: A0011541116
86
RECTIFIER , Replaced By: A0011541616
86
RECTIFIER , Replaced By: A0011542116
86
RECTIFIERTO 007 154 24 02,009 154 06 02, Replaced By: A0011541316
86
RECTIFIER , Replaced By: A0011542716
86
RECTIFIER , Replaced By: A0011542116
86
RECTIFIERTO 005 154 52 02
86
RECTIFIER
86
RECTIFIERTO 005 154 83 02,006 154 67 02
92
SCREW T-FITTING TO BRACKET M4X25
98
REPAIR KIT (PARTS KT),ROTOR TO 007 154 27 02,009 154 07 02
98
REPAIR KIT
104
REPAIR KIT ROTOR TO 005 154 52 02
104
REPAIR KIT (PARTS KT),ROTOR TO 007 154 27 02,009 154 07 02
104
REPAIR KIT
110
SPRING
116
SPRING
122
SEAL RINGTO 005 154 34 02
122
RINGTO 007 154 27 02
128
GASKET
134
SPRING WASHER HEATER PLUG CABLE HARNESS
134
SPRING WASHER ALTERNATOR CONNECTION W
134
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
134
SPRING WASHER , Replaced By: N000137008212
152
NUT , Replaced By: N304032008006
152
NUT , Replaced By: N304032005005
152
NUT BALL PIVOT TO LEVER
152
NUT
152
NUT IN CASE OF SUBSEQUENT INSTALLATION
164
FAN FAN TWO-GROOVE V-BELT PULLEY TO 006 154 24 02
164
FANTO 344 154 71 02
170
FAN , Replaced By: A0001558518
176
PULLEY
182
FAN ALTERNATOR
188
SCREW BRACKET TO ALTERNATOR
194
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
200
NUT , 002130
206
BRACKET
212
BUSHING
218
CLAMPING PIECE , OM 352 031149 100 PS/DIN OM 352 025865 110 PS/DIN OM 352 068814 126 PS/DIN OM 352 003727 150 PS/DIN
224
NUT TIGHTENER PULLEY TO LEVER
230
NUT , Replaced By: N304035012002
236
SCREW CLAMPING BOLT TO BRACKET
242
WASHER , Replaced By: A6319900140
242
WASHER ELBOW TO TURBOCHARGER
248
NUT
248
NUT , Replaced By: N304032008006
254
CLAMPING BOLT
260
BUSHING
266
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
266
SCREW , Replaced By: N304017010035
272
V-BELT FAN DRIVE,D 180260
272
V-BELT SET2 PIECES
272
V-BELT SET2 PIECES
272
V-BELT SET OF NARROW V-BELTS2 PIECES 12.5X1325
272
V-BELT SET2 PIECES 12.5X1300
272
V-BELT FROM ENGINE TO BELT TIGHTENER PULLEY 12.5X1450 MM
278
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
278
SCREW SUPPORT TO CYLINDER CRANKCASE M 14X1.5X115
524
PULLEY WATER PUMP
530
FAN
530
FAN
536
INTERMEDIATE PIECE
542
SCREW , Replaced By: A0069909301
542
SCREW BRACKET TO APPARATUS SUPPORT
999
TERMINAL TERMINALS: B+, B-, D+, W
999
COUPLINGTO 001 151 36 01,001 151 38 01
999
PINIONTO 001 151 38 01, 000 151 33 01
999
DISC INSIDE TOOTHING TO 001 151 36 01,001 151 38 01,
999
SEAL RINGTO 001 151 36 01,001 151 38 01
999
STUDTO 002 151 81 01,003 151 57 01
999
NUTTO 000 151 33 01,001 151 41 01,
999
DISCTO 000 151 33 01,001 151 41 01,
999
SPACER WASHERTO 001 151 36 01,001 151 38 01,
999
STUDTO 002 151 81 01,003 151 57 01
999
NUT
999
LOCKTO 000 151 33 01,001 151 41 01,
999
DISC OUTSIDE TOOTHING TO 000 151 33 01,001 151 41 01
999
STUDTO 002 151 81 01,003 151 57 01
999
SEAL RINGTO 000 151 33 01,001 151 41 01,
999
SEAL RINGTO 000 151 33 01,001 151 41 01
999
SPRINGTO 000 151 33 01,001 151 41 01,
999
SHAFT WITH COUPLING TO 002 151 81 01,003 151 57 01
999
BEARINGTO 000 151 33 01, 001 151 41 01,
999
CONTROL LEVERTO 004 151 58 01/003 151 87 01
999
WASHERTO 001 151 41 01,001 151 33 01,
999
ARMATURETO 001 151 41 01,001 151 38 01
999
BUSHINGTO 001 151 36 01,001 151 38 01
999
CARBON BRUSH SETTO 000 151 33 01, 001 151 38 01
999
ARMATURE , Replaced By: A0001514315
999
SPACER WASHERTO 000 151 33 01,001 151 41 01,
999
BUSHINGTO 001 151 41 01,001 151 36 01,
999
EXCITER COIL COIL 1 TO 001 151 38 01
999
EXCITER COIL COIL 2 TO 001 151 38 01
999
BEARINGTO 004 151 58 01
999
SPACER WASHER0.30 MM,TO 002 151 81 01,003 151 57 01
999
SPACER WASHER0.50 MM,TO 002 151 81 01,003 151 57 01
999
SPACER WASHER0.20 MM,TO 0021518101,0031515701 BOSCH
999
PINION
999
BUSHINGTO 001 151 96 01
999
BUSHINGTO 001 151 96 01
999
SPRINGTO 001 151 38 01
999
SPACER WASHER0.20 MM,TO 0021518101,0031515701 DELCO
999
BEARINGTO 002 151 81 01,003 151 57 01
999
BUSHING STARTER PINION TO 001 151 96 01
999
BUSHINGTO 001 151 36 01,001 151 38 01,
999
SPRINGTO 003 151 57 01
999
ARMATURE
999
CARBON BRUSH SET
999
CARBON BRUSH SETTO 001 151 96 01
999
PINIONTO 001 151 96 01
999
PINIONTO 002 151 07 01
999
PINIONTO 343 151 71 01
999
STARTING MOTOR , MB PART NO.000 151 76 01BOSCH PART NO. 0 001 402 026 MB PART NO.002 151 86 01BOSCH PART NO. 0 001 414 005 MB PART NO.004 151 00 01BOSCH PART NO. 0 001 416 057, Replaced By: A0021518601
999
BUSHINGTO 004 151 58 01
999
BUSHING , Replaced By: A0001512449
999
SOLENOID SWITCHTO 001 151 41 01,001 151 38 01
999
SOLENOID SWITCH ENGAGEMENT RELAY TO 003 151 57 01 BOSCH
999
SOLENOID SWITCHTO 002 151 07 01
