Поз.
Артикул
Описание

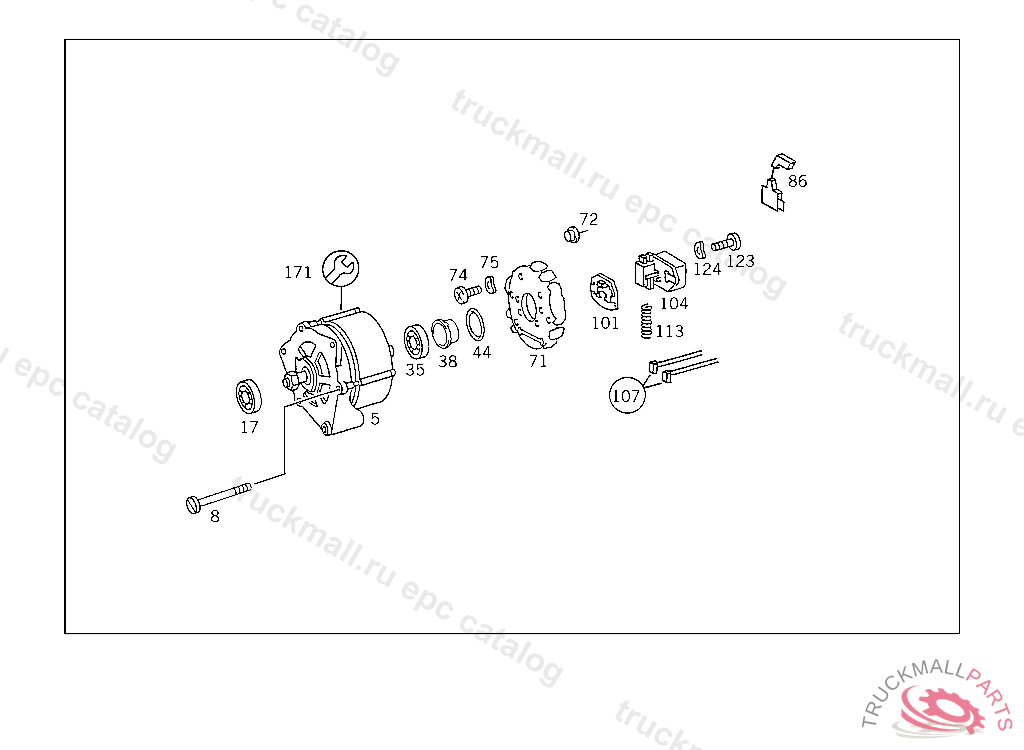

5
ALTERNATOR WITH REGULATOR INCORPORATED,LESS PULLEY 12 V 55 A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
ALTERNATOR
8
SCREW , TO 008 154 32 02
17
GROOVED BALL BEARING
35
BALL BEARING SLIP RING SIDE TO 004 154 25 02
35
BALL BEARINGTO 005 154 34 02
44
SEAL RINGTO 005 154 34 02
71
RECTIFIER
71
RECTIFIERTO 005 154 83 02,006 154 67 02
72
DIODE
72
DIODE
72
DIODE NEG. TO 005 154 03 02
72
DIODE POS.
74
SCREW T-FITTING TO BRACKET M4X25
75
SPRING WASHER ALTERNATOR CONNECTION D+
86
CONDENSER
86
CONDENSER
101
GASKETTO 007 154 26 02
104
REGULATOR AND CUT-OUT , Replaced By: A0001541805
104
REGULATOR AND CUT-OUTTO 005 154 32 06
107
CARBON BRUSH SETTO 007 154 27 02
107
CARBON BRUSH SET
107
CARBON BRUSH SET , Replaced By: A0001545514
113
SPRING
113
SPRING
123
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
123
SCREW , Replaced By: N007985004130
124
SPRING WASHER ALTERNATOR CONNECTION D+
171
REPAIR KIT
171
REPAIR KIT ROTOR TO 005 154 52 02
