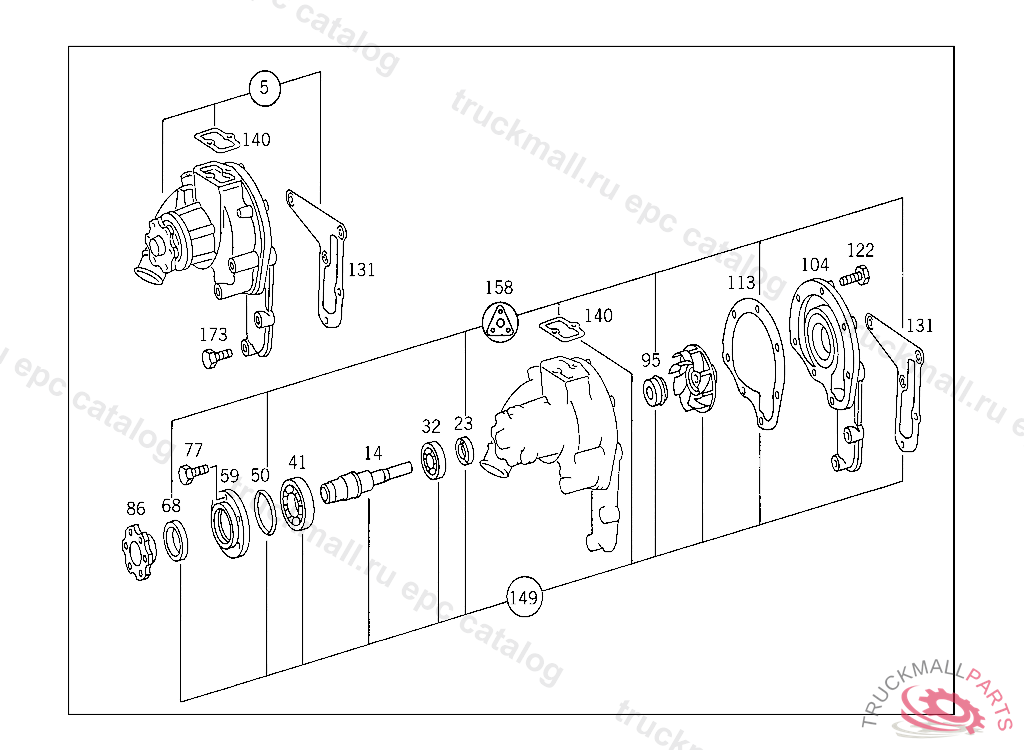

Поз.
Артикул
Описание
5
WATER PUMP WITH GASKETS, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
WATER PUMP , Replaced By: A3532003601
14
SHAFT , Replaced By: A3662010105
14
SHAFT
23
SEAL RING
23
SEAL RING
32
GROOVED BALL BEARING , FROM ENGINE 937666-999999 YEAR OF MANUFACTURE 1989-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990
32
GROOVED BALL BEARINGTO 001 466 15 01
41
GROOVED BALL BEARING INTERMEDIATE BEARING
41
GROOVED BALL BEARING , FROM ENGINE 937666-999999 YEAR OF MANUFACTURE 1989-1990 FROM ENGINE 100001 YEAR OF MANUFACTURE 1990
50
SEAL RING WATER PUMP
59
SEAL HOLDER
59
SEAL HOLDER
68
SEAL RING
68
SEAL RING
77
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
86
HUB
95
SEAL WITH THRUST RING AND BOOT
95
SEAL , Replaced By: A0002019919
95
SEAL , Replaced By: A0012011719
95
SEAL , Replaced By: A0012011819
95
SEAL , Replaced By: A0012011919
95
SEAL , Replaced By: A0012011919
95
SEAL , Replaced By: A0012012619
104
COVER
113
GASKET WATER PUMP TO CYLINDER CRANKCASE
122
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
131
GASKET WATER PUMP COVER
131
GASKET WATER PUMP TO CYLINDER CRANKCASE
140
GASKET1 MM
149
IMPELLER PARTS KIT,740567
149
IMPELLER PARTS KIT,760549
149
IMPELLER PARTS KIT,740566
149
IMPELLER , Replaced By: A3522004104
158
GASKET KIT WATER PUMP,760549
158
GASKET KIT WATER PUMP
173
SCREW CONNECTOR TO REAR SHIFTING ROD
173
SCREW. HEXAGON HEAD BOLT TRANSMISSION CASE M10X80
999
THERMOSTAT ELEMENT , 314.9 259272 352.9 437435, Replaced By: A0032033175, +001A3522032280
999
THERMOSTAT ELEMENT , UP TO ENGINE 437435 YEAR OF MANUFACTURE 1976, Replaced By: A0032032875, +001A3522032280
999
THERMOSTAT ELEMENT , NOT USED, Replaced By: A0032032975
999
THERMOSTAT ELEMENT , NOT USED, Replaced By: A0032033275
999
WATER PUMP WITH GASKET
999
COVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 740566, Replaced By: A3522011803
999
LINE COOLING WATER LINE,052377
999
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 369347, Replaced By: A3522033301
999
WATER PUMP , Replaced By: A3532002801
