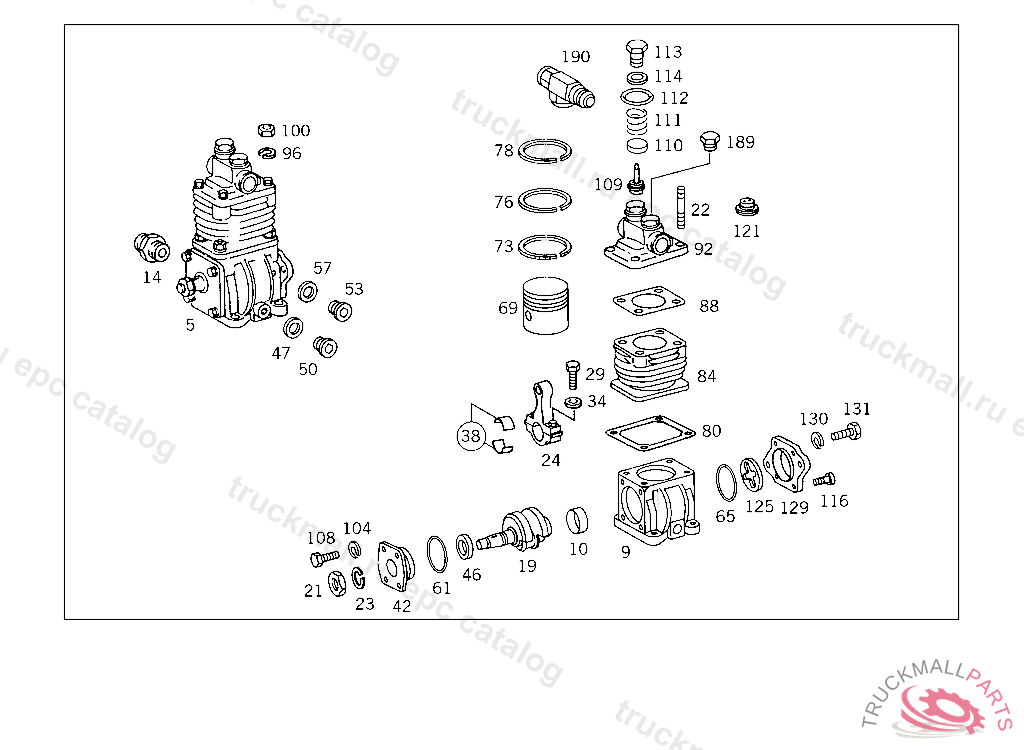

Поз.
Артикул
Описание
5
COMPRESSORWABCO 220 CCM, ONE-CYLINDER AIR COMPRESSOR PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
COMPRESSORWABCO 150CCM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
COMPRESSORWABCO
5
COMPRESSOR , Replaced By: A0021318601
5
COMPRESSOR ,571206 352.900/000/019/400, Replaced By: A0031312401, +001A3520102935, +001A3521804122
5
COMPRESSOR , Replaced By: A0031315901
5
COMPRESSOR , Replaced By: A0041315801
9
HOUSING , Replaced By: A0001311715
9
HOUSINGTO 001 131 03 01,001 131 04 01
10
BUSHINGTO 001 131 52 01
14
CONNECTOR
14
ADAPTER FITTING HOSE LINE TO TRANSMISSION
14
ADAPTER FITTING COOLING WATER LINE
19
CRANKSHAFT , Replaced By: A0001315316
19
CRANKSHAFT
21
NUT
22
STUD BOLT STAY TO BRACKET AND TO SIDE MEMBER M 8X22
23
LOCK WASHER BELL HOUSING TO TRANSMISSION
24
CONNECTING ROD
24
CONNECTING ROD , Replaced By: A0001312117, +002A0001310733
24
CONNECTING ROD , Replaced By: A0001300916
29
SCREW , Replaced By: N304017008018
29
SCREW SUPPORT TO FENDER
34
LOCK
38
BEARING SHELLTO 003 131 48 01,004 131 58 01
42
BEARING CAPTO 001 131 03 01/04 01
42
BEARING CAP ,571207 352.900/000/019/400
46
SEAL RING
47
SEAL RING COMPRESSED AIR LINE TO CLUTCH BOOSTER WABCO
50
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
50
SCREW PLUG , Replaced By: N000908022011
53
SCREW PLUG , Replaced By: N000000000648
53
SCREW PLUG, FILLING HOUSING,BOTTOM
57
SEAL RING BRAKE CYLINDER STROKE INDICATOR
57
SEAL RING LINE CONNECTION
61
SEAL RING CRANKSHAFT SEALING,FRONT
65
SEAL RING CRANKSHAFT SEALING,REAR TO 003 131 31 01
69
PISTON , Replaced By: A0001312207
69
PISTON
69
PISTON
73
PISTON RING , Replaced By: N024948075000
73
PISTON RING , Replaced By: A0001317911
73
PISTON RING
76
PISTON RING
76
PISTON RING , Replaced By: N024930075002
78
PISTON RING
80
GASKET , Replaced By: A0011316880
80
GASKET AIR COMPRESSOR CYLINDER HEAD
84
CYLINDER LINER
88
GASKET
88
GASKET , Replaced By: A0011316980
92
CYLINDER HEAD COMPLETE
96
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
100
NUT , Replaced By: N304032008006
100
NUT
104
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
108
SCREW LINE MOUNTING M 6X15
109
VALVE CYLINDER HEAD
110
SPRING RETAINER
111
SPRING CYLINDER HEAD
112
SEAL RINGTO 002 430 41 01
113
CAP
114
SEAL RING LINE TO OIL PUMP
116
SCREW COVER TO FLANGE M 8X15
121
VALVE CYLINDER HEAD
121
VALVE , Replaced By: A3521310004
121
VALVE , Replaced By: A0001314204
125
FOLLOWER , Replaced By: A0001320710
125
FOLLOWER POWER STEERING PUMP AT ENGINE
129
FLANGE ,571207 352.900/000/019/400
130
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
131
SCREW COVER PLATE TO BRACKET
189
CAP
190
VALVE , UP TO ENGINE 115.923 10/50,20/60 150962 115.923 12/52,22/62 028618 115.926 10/50,20/60 008520 115.926 12/52,22/62 000332 115.951 10/50,20/60 004639 115.951 12/52,22/62 002286 615.912 10/50,20/60 333481 615.912 12/52,22/62 036487 615.913 10/50,20/60 198517 615.913 12/52,22/62 005521 616.916 10/50,20/60 008623 616.916 12/52,22/62 001985
190
VALVE , Replaced By: A0001312804
999
CYLINDER HEAD
999
SEAL RING VALVE
999
HOUSING
999
PISTON RING , Replaced By: N024911075000
999
CLAMP
999
BREATHER PIPE
999
SHIM
999
COVER
999
COVER
999
EXPANSION PLUG TIMING CASE WITH CONNECTION TO AIRCOMPRESSOR OIL-RETURN LINE
999
BRACKET BREATHER PIPE
999
LINE , Replaced By: A3660700032
999
INTAKE PIPE AIR COMPRESSOR
999
INTAKE PIPE FROM CYLINDER HEAD COVER TO AIR COMPRESSOR
999
OIL LINE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0099979382, +002N915052004011
999
PULLEY WATER PUMP
999
PULLEY
999
WASHER , Replaced By: N000125010532
999
SCREW PROPELLER SHAFT TO COUPLING FLANGE
999
SCREW BRACKET TO CYLINDER HEAD
999
STUD BOLT BRACKET TO TRANSMISSION
999
SEAL RING RELAY VALVE,CONNECTION: "20"
999
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
999
HEXAGON HEAD BOLT. SCREW CLUTCH PRESSURE PLATE TO FLYWHEEL M 8X1,25X60
999
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
999
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X65
