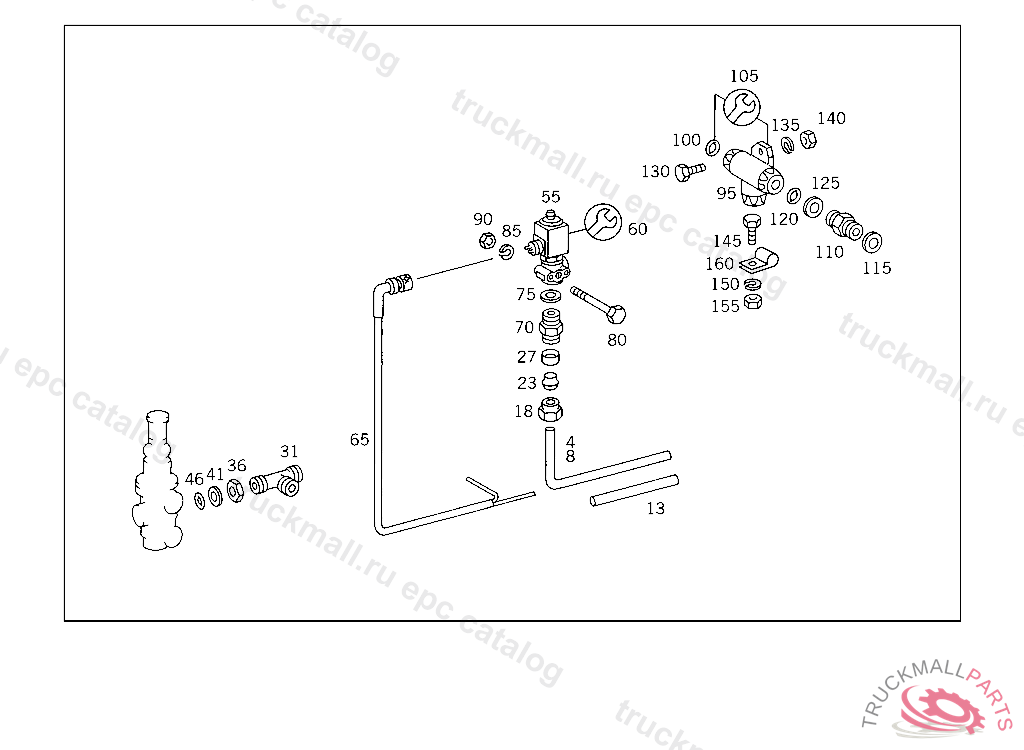

Поз.
Артикул
Описание
4
HOSE FROM FIRE WALL TO INSTRUMENT CLUSTER, ORDER BY THE METER
4
HOSE , Replaced By: A0089976082
4
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
4
PLASTIC PIPE RISING PIPE 4X6 MM
8
LINE , Replaced By: A0004296201
8
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
13
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
13
INSULATING HOSE BLACK 12 X 0,8 MM
18
UNION NUT
23
GLAND , Replaced By: A0019901667
23
SEAL CONE
27
SLEEVE LEAK LINE
31
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
36
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
41
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
41
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
46
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
55
VALVE , Replaced By: A0019971836
55
VALVE , Replaced By: A0039971736
55
VALVE , Replaced By: A0029975836
55
VALVE ,4 188089, Replaced By: A0029975836
55
VALVE (SOLENOID VALVE) HERION
55
VALVE (SOLENOID VALVE) HERION
55
VALVE (SOLENOID VALVE) WABCO
55
VALVE (SOLENOID VALVE) HERION
60
REPAIR KITTO 000 434 10 01, UP TO BOSCH CHARACTERISTIC NUMBER 427
60
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
60
REPAIR KIT , Replaced By: A0024302260
60
REPAIR KITTO 001 997 18 36,001 997 19 36
60
REPAIR KIT , Replaced By: A0012608357
60
REPAIR KITTO 001 997 34 36,002 997 58 36,
60
REPAIR KITTO 001 997 34 36,002 997 58 36,
65
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 24X1
70
TS DOUBLE FITTING SOLENOID VALVE
75
SEAL RING LINE CONNECTION
80
SCREW EXHAUST MUFFLER TO STRAP
80
SCREW EXHAUST MUFFLER TO STRAP
80
SCREW , Replaced By: N304017008043
80
SCREW VALVE TO BRACKET M 8X55
85
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
90
NUT
95
VALVE , Replaced By: A0044291544
95
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
95
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
95
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
100
SEALING CORD BRAKE POWER REGULATOR
105
REPAIR KITTO 000 429 40 44
110
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
110
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236
110
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236
115
SEAL RING LINE CONNECTION
115
SEAL RING LINE CONNECTION
115
SEAL RING BOTTOM
115
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
120
O-RING CHECK VALVE TO AIR RESERVOIR
125
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
125
THRUST RING CHECK VALVE TO AIR RESERVOIR
130
SCREW , Replaced By: N304017008027
130
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
130
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
130
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
130
SCREW , Replaced By: N304017008016
130
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
130
SCREW BRACKET TO CROSS MEMBER
135
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
140
NUT
140
NUT , Replaced By: N913004008001
140
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
140
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
145
SCREW , Replaced By: N304017008027
145
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
145
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
145
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
145
SCREW , Replaced By: N304017006020
145
SCREW LICENSE PLATE TO BRACKET
150
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
150
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
150
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
150
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
155
NUT INTERMEDIATE SPEED STOP
155
NUT INTERMEDIATE SPEED STOP
155
NUT INTERMEDIATE SPEED STOP
155
NUT BALL PIVOT TO LEVER
160
CLAMP , Replaced By: A3609951201
160
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
160
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
160
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
160
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
160
CLAMP LINE MOUNTING
160
CLAMP LINE MOUNTING
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
SCREW COVER PLATE TO COVER PLATE M 6 X 12
999
SCREW , Replaced By: N304017006018
999
PLUG SOCKET , Replaced By: A3805402181
999
ANGLE LINE MOUNTING
999
ELECTRIC CABLE ,778002
999
ELECTRIC CABLE ,778002
999
FITTING , Replaced By: A0029906071
999
FITTING , Replaced By: A0039979072
999
PLUG SOCKET , Replaced By: A3805400181
