Поз.
Артикул
Описание

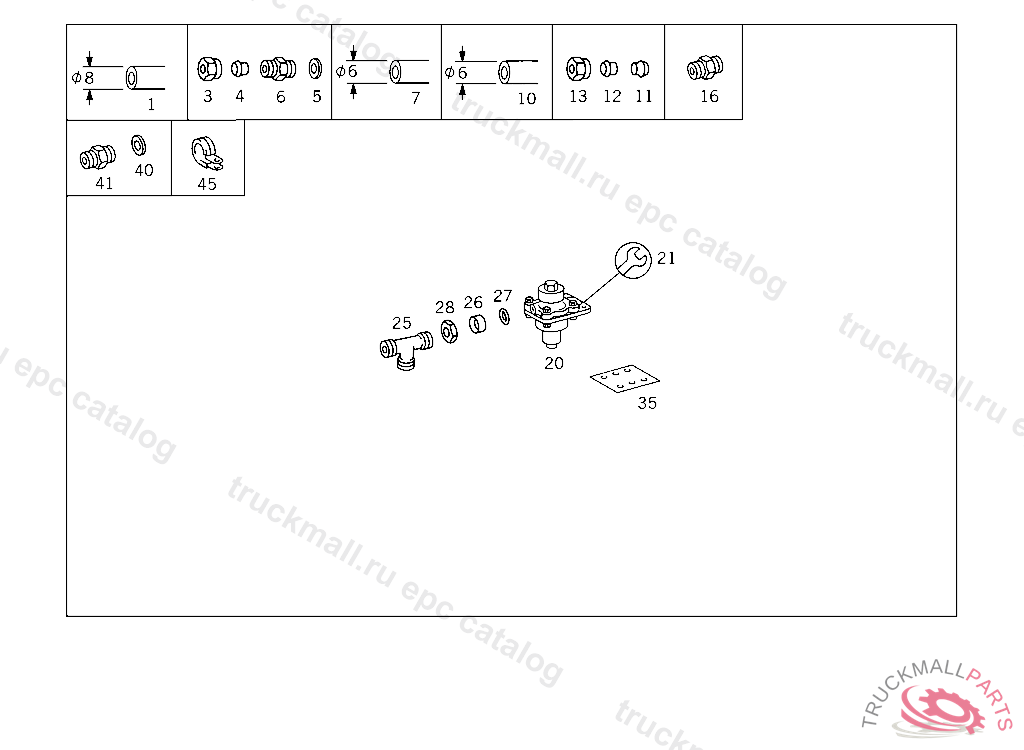

1
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
3
GLAND LINE CONNECTION
4
UNION NUT LINE CONNECTION
5
SEAL RING LINE CONNECTION
6
SCREW-IN FITTING
7
LINE , Replaced By: A0004296201
7
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
10
PLASTIC PIPE RISING PIPE 4X6 MM
10
PLASTIC PIPE RISING PIPE 4X6 MM
10
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
11
SLEEVE LEAK LINE
11
BUSHING , Replaced By: N915062004000
12
SEAL CONE
12
GLAND , Replaced By: A0019901667
13
UNION NUT
16
TS DOUBLE FITTING SOLENOID VALVE
16
FITTING , Replaced By: A0029906071
16
FITTING , Replaced By: A0039979072
20
VALVE DRAIN, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
20
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004295444
21
REPAIR KIT DRAIN VALVE
25
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
26
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
26
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
27
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
28
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
35
BRACKET DRAIN VALVE
40
SEAL RING LINE CONNECTION
41
ADAPTER FITTING , Replaced By: A0039972072
41
FITTING , Replaced By: A0039972072
41
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
45
CLAMP LINE MOUNTING
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
HOLLOW SCREW HEATING CONNECTION
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT
999
SCREW PIPE CLAMP
999
FITTING CONNECTION "2"
999
FITTING , Replaced By: A0009970171
999
NUT SUCTION LINE TO OIL PUMP
999
NUT CHECK VALVE TO AIR RESERVOIR
999
DOUBLE FITTING , Replaced By: A0019972872
999
SCREW , Replaced By: N304017008021
999
SCREW FRONT AXLE REGULATING SOLENOID VALVE
999
SCREW REINFORCEMENT TO CROSS MEMBER,5 101104
999
SCREW , Replaced By: N000933008134
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
FITTING LINE CONNECTION
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
CLAMP , Replaced By: A6739950001
999
BRACKET , TO 001 429 60 44
999
SEAL RING22.3X2.4,TO A 003 429 35 44, NOT USED
999
SEAL RINGWABCO
999
SEAL RING17X3.5,TO A 003 429 35 44, NOT USED
999
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
999
PRESSURE REGULATOR , Replaced By: A0024315906
999
LOOM TIE LINE MOUNTING 280 MM
999
FITTING LINE CONNECTION, Replaced By: N000000006446
999
REPAIR KITTO 003 429 35 44, NOT USED
999
FITTING , Replaced By: A0019972572
999
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
BANJO UNION , Replaced By: N915052004006
999
ELBOW FITTING LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
999
T-FITTING FITTING,5 461950
999
SEALING CORD9.2X3.5,TO A 003 429 35 44, NOT USED
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
DISTRIBUTOR
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
999
ADAPTER FITTING , Replaced By: N074313008101
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
