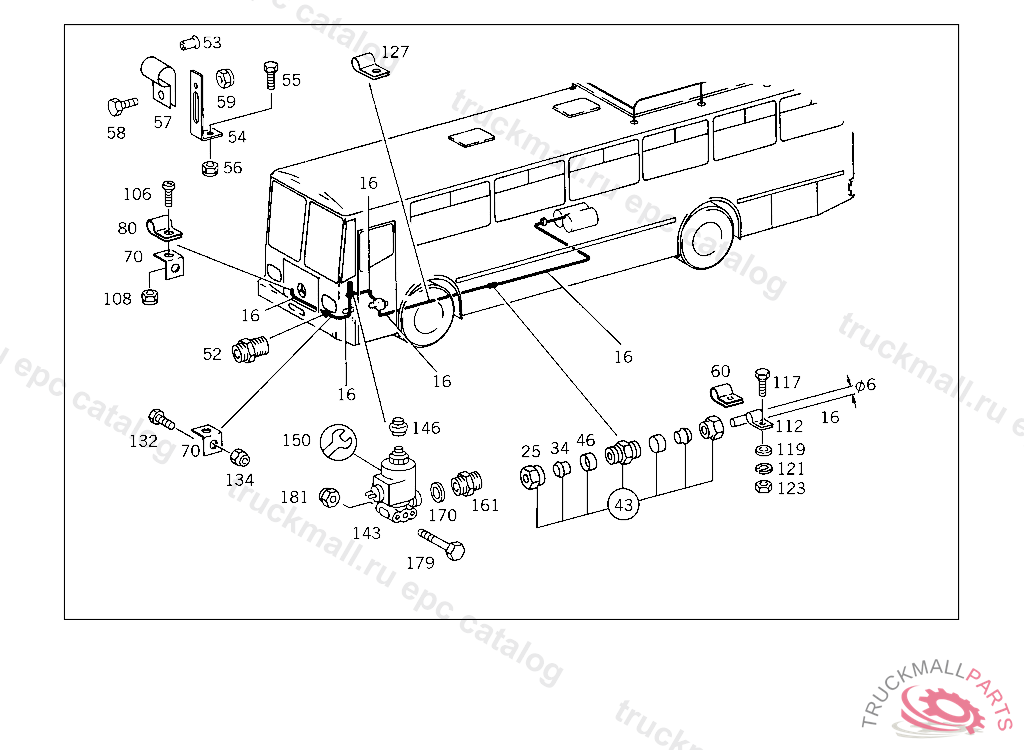

Поз.
Артикул
Описание
16
LINE , Replaced By: A0004296201
16
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
16
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
16
PLASTIC PIPE RISING PIPE 4X6 MM
16
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
25
UNION NUT
34
GLAND , Replaced By: A0019901667
34
SEAL CONE
43
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
46
SLEEVE LEAK LINE
52
FITTING , Replaced By: A0039979072
52
FITTING , Replaced By: A0029906071
52
TS DOUBLE FITTING SOLENOID VALVE
53
RIVET REINFORCEMENT TO SIDE MEMBER
54
BRACKET POS. CABLE,XB209706
54
BRACKET LINE MOUNTING
55
SCREW , Replaced By: N304017010002
55
SCREW BRACKET TO SIDE MEMBER
56
NUT , Replaced By: N910113010000
56
NUT STRAP TO BRACKET
57
CLAMP LINE MOUNTING
58
SCREW COVER PLATE TO BRACKET
59
NUT , Replaced By: N913004006001
59
NUT PUMP TO BRACKET
60
CLAMP LINE MOUNTING
60
CLAMP , Replaced By: A6739950001
60
CLAMP DELIVERY AND SUCTION LINES TO STEERING
70
ANGLE , Replaced By: A3604280243
70
ANGLE LINE MOUNTING
80
CLAMP LINE MOUNTING
80
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
106
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
108
NUT , Replaced By: N913004006001
108
NUT PUMP TO BRACKET
112
CLAMP LINE MOUNTING
117
SCREW LINE MOUNTING M 6X15
119
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
119
WASHER COMPRESSED AIR LINE TO BRACKET
121
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
123
NUT BALL PIVOT TO LEVER
127
CLAMP LINE MOUNTING
132
SCREW , Replaced By: N304017008027
132
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
134
NUT , Replaced By: N913004008001
134
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
134
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
143
VALVE , Replaced By: A0039971736
143
VALVE , Replaced By: A0029975836
143
VALVE (SOLENOID VALVE) HERION
143
VALVE , Replaced By: A0039971836
143
VALVE (SOLENOID VALVE) WABCO
143
VALVE (SOLENOID VALVE) HERION
143
VALVE ,4 188089, Replaced By: A0029975836
146
PROTECTIVE CAPWABCO
146
PROTECTIVE CAPWABCO
146
PROTECTIVE CAPWABCO
146
PROTECTIVE CAPWABCO
150
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
150
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
150
REPAIR KIT , Replaced By: A0024302260
150
REPAIR KITTO 001 997 18 36,001 997 19 36
150
REPAIR KITTO 001 997 18 36,001 997 19 36
150
REPAIR KIT , Replaced By: A0012608357
150
REPAIR KITTO 001 997 34 36,002 997 58 36,
150
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
150
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
150
REPAIR KITTO 001 997 18 36,001 997 19 36
150
REPAIR KITTO 001 997 18 36,001 997 19 36
150
REPAIR KITTO 001 997 34 36,002 997 58 36,
150
REPAIR KITTO 001 997 34 36,002 997 58 36,
161
FITTING , Replaced By: A0029906071
161
TS DOUBLE FITTING SOLENOID VALVE
161
FITTING TWO-CIRCUIT BRAKE VALVE,CONNECTION: "21", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
170
SEAL RING LINE CONNECTION
179
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
181
NUT , Replaced By: N913004008001
181
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
GROMMET
999
HOLLOW SCREW HEATING CONNECTION
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
