Mercedes N304017010047 - Винт M 10 X 35

OM 355 H 355.973 TO MOTOR 533223

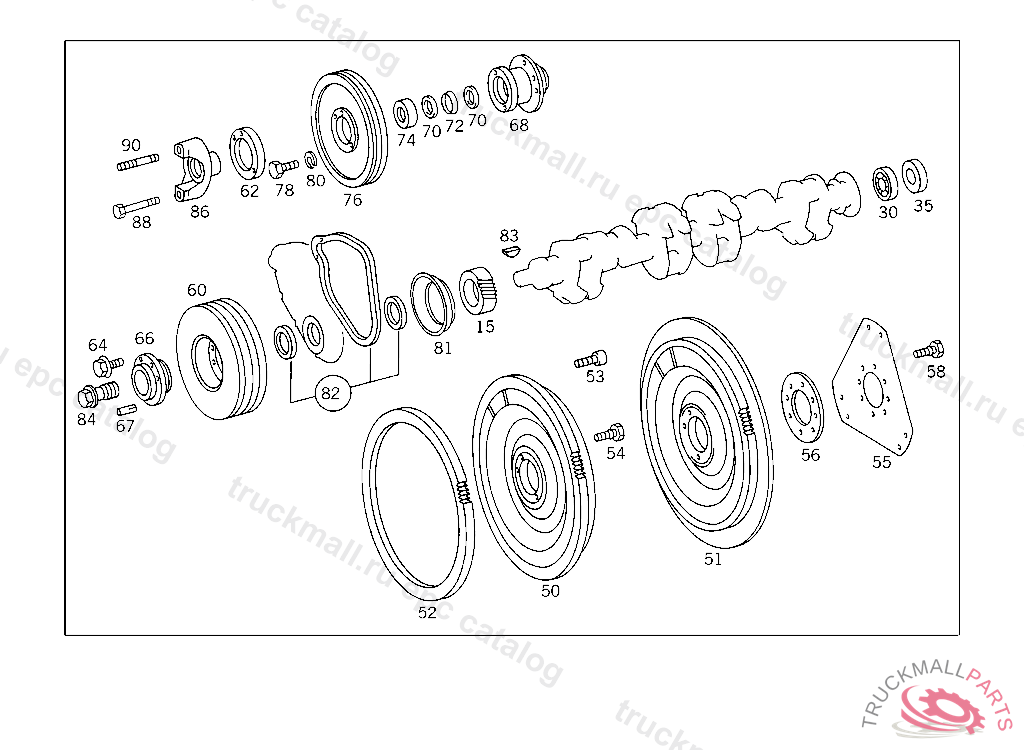

03 MOVING PARTS - 001 MOVING PARTS IL. 2

Поз.
Артикул
Описание
15
A3460520103
CRANKSHAFT GEAR
51
A3460301305
FLYWHEEL
52
A3150320105
RING GEAR
55
A3172570116
DISC
56
A3172570016
DISC
58
A3179903101
SCREW FOLLOWER DISC,WASHER AND FLYWHEEL TO CRANKSHAFT
60
A3550301403
VIBRATION ABSORBER
62
A3460350014
INTERMEDIATE PIECE DRIVE GEAR TO CRANKSHAFT
64
N304017010047
SCREW CONNECTOR TO REAR SHIFTING ROD
64
N000933010202
SCREW , Replaced By: N304017010047
66
A3550350413
HUB
81
A3260310226
OIL BAFFLE CRANKSHAFT
82
A3550150020
GASKET GASKET KIT,TIMING CASE COVER
83
N006888010005
WOODRUFF KEY
84
A3269900401
SCREW VIBRATION ABSORBER TO CRANKSHAFT
84
A3469900401
SCREW
86
A3260310345
FLANGE ,075330
88
A3269900801
SCREW ,075330
999
A0020374719
PISTON RING GROOVE IV 128.00 MM
999
A3550307817
PISTON REPAIR SIZE III 129.50 MM
999
A3550308217
PISTON REPAIR SIZE II 129.00 MM
999
A3555863103
REPAIR KIT
999
A3555863303
REPAIR KIT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 661664, Replaced By: A3550301340
