Поз.
Артикул
Описание

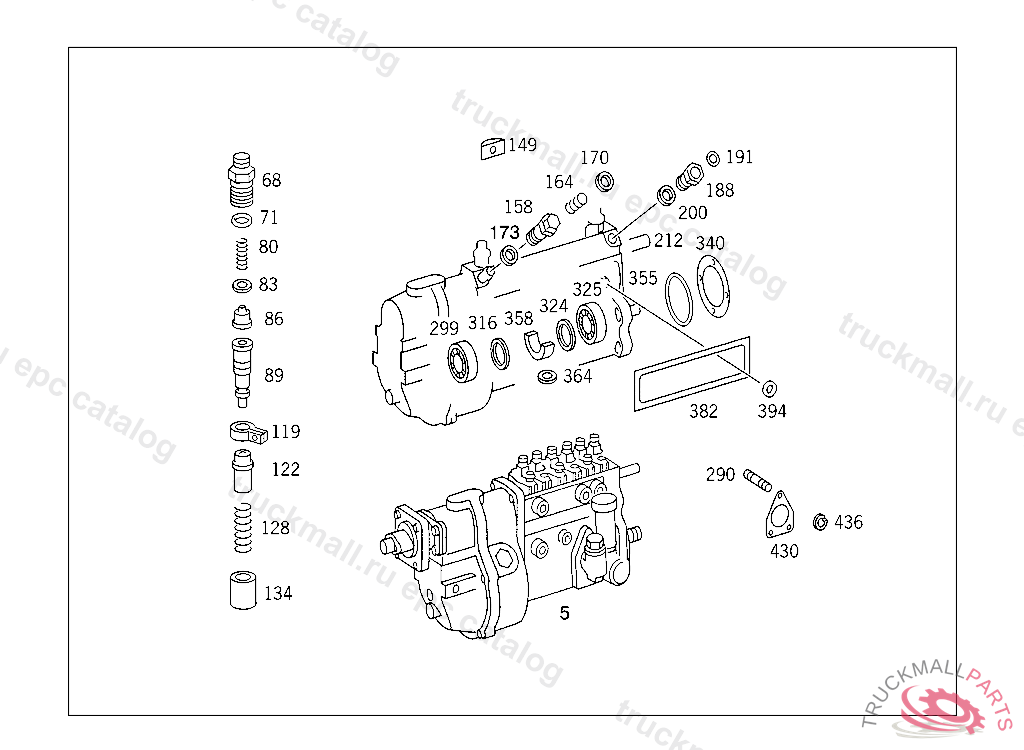

5
INJECTION PUMP
68
FITTING , FROM ENGINE 392484 YEAR OF MANUFACTURE 1995
71
SEAL RING , FROM ENGINE 392484 YEAR OF MANUFACTURE 1995
80
SPRING
83
SEALING RING. SEAL RING
86
PRESSURE VALVE , FROM ENGINE 392484 YEAR OF MANUFACTURE 1995
89
PUMP ELEMENT
119
TOOTHED SEGMENT
119
TOOTHED SEGMENT22.70 MM
122
CONTROL SLEEVE
128
SPRING
134
TAPPET
149
CLAMPING PIECE THREADED
149
CLAMPING PIECE WITH THRU HOLE
158
VALVE ,295838/93
173
SEAL RING INJECTION PUMP
188
SCREW
212
CONTROL RACK
290
STUD
299
TAPERED ROLLER BEARING
316
SPACER WASHER1.00 MM
316
SPACER WASHER0.12 MM
316
SPACER WASHER0.16 MM
316
SPACER WASHER0.50 MM
316
SPACER WASHER INJECTION PUMP DRIVE SIDE 0.10 MM
316
SPACER WASHER0.18 MM
316
SPACER WASHER INJECTION PUMP DRIVE SIDE 0.30 MM
316
SPACER WASHER0.14 MM
324
SPACER WASHER AS REQUIRED 0.30 MM
324
SPACER WASHER0.12 MM
324
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 1.00 MM
324
SPACER WASHER AS REQUIRED 0.50 MM
324
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 0.10 MM
324
SPACER WASHER0.16 MM
324
SPACER WASHER0.18 MM
324
SPACER WASHER INJECTION TIMING DEVICE DRIVE SIDE 0.14 MM
325
TAPERED ROLLER BEARING
340
SEAL RING , Replaced By: A0229973548
340
SEAL RING
358
BEARING
364
SEAL RING
382
GASKET
430
GASKET FUEL PUMP TO INJECTION PUMP, FROM ENGINE 399032 YEAR OF MANUFACTURE 1995
436
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
